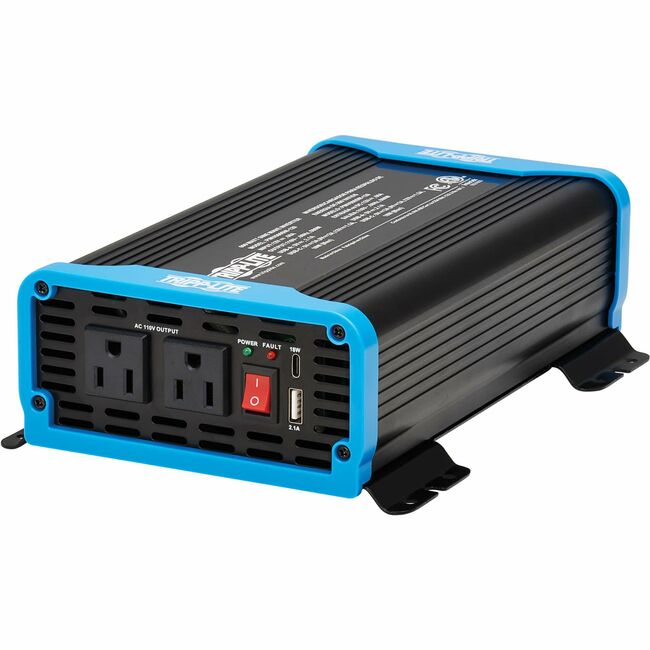

Eaton PINV600SW-120 COMPACT POWER INVERTER 600W 2X OUTLET USB CHARGING PURE SINE WAVE

Mobile Sine Wave Inverter Charges and Powers Multiple Electronic Devices in Your Vehicle
You don't have to be near an AC power source to keep your mobile devices fully charged and your power tools operating. This 600W mobile inverter converts 12V DC power from your car, utility truck, fleet vehicle, boat or RV's battery into pure sine wave 110V AC power. Just connect the included battery cables between the PINV600SW-120's DC input terminals and the positive and negative terminals on your vehicle's battery.

AC Outlets Provide Portable Power for Your Mobile Applications
This compact power inverter provides pure sine wave AC output for use at remote locations, such as campgrounds, construction sites and mobile offices. Two NEMA 5-15R outlets provide a continuous output of 600W and a peak output of 1200W. That's plenty to operate a variety of appliances and power tools, such as low-power lights, telemetry equipment, smart battery rechargers for small battery-operated power tools, and mobile office equipment.

USB Charging Ports Keep Your Devices at Full Strength
A 5V USB-A port outputs DC power up to 2.1A. A USB-C port outputs 5V/9V/12V fast-charging up to 18W maximum. Both USB ports remain active when the inverter's on/off switch is set to Off. This allows you to charge your smartphone, tablet, laptop or GPS unit without draining too much power from the vehicle's battery.

Includes the Latest Safety Features to Protect Your Equipment and Battery
The on/off switch offers one-touch control over both AC outlets. If the power input from the vehicle's battery drops below 10V or exceeds 16V, the PINV600SW-120 will automatically shut down. Green and red LEDs indicate normal and improper operation. A load-controlled fan begins cooling automatically when the internal temperature rises to a certain level during extended use. An audible alarm sounds during excessively high/low voltage or fault conditions.

Brackets Included for Permanent Mounting
The durable aluminum housing withstands the rigors of worksites, construction sites, business trips and family vacations. Use the built-in mounting brackets and included hardware to permanently install the inverter in a horizontal position.

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	PINV600SW120
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Model	PINV600SW-120
Product Name	600W Light-Duty Compact Power Inverter - 2x 5-15R, USB Charging, Pure Sine Wave
Product Type	Power Inverter
Technical Information
Plug/Connector Type	NEMA 5-15R
Receptacles	2 x NEMA 5-15R
Protection Type	Overload Protection
Cord Length	1.50 ft
Power Description
Input Voltage	12 V DC
Output Voltage	110 V AC
Maximum Frequency	60 Hz
Peak Power Load	1200 W
Continuous Power Load	600 W
Waveform Type	Pure Sine Wave
Power Source	Battery
Physical Characteristics
Color Family	Dual Color
Product Color	Black
Product Color	Blue
Height	4.4"
Width	8.4"
Depth	12.1"
Weight (Approximate)	4.28 lb
Miscellaneous
Package Contents	600W Light-Duty Compact Power Inverter - 2x 5- 15R, USB Charging, Pure Sine Wave 2 x DC Battery Cables, 18 in. (45.7 cm) Ground Wire with Clamp Mounting Hardware Owner's Manual
Certifications & Standards	CAN/CSA-C22.2 No. 107.1 (Canada) UL 458 FCC (USA)
Warranty
Limited Warranty	2 Year
