BRAINBOXES
BRAINBOXES SW-114 4 PORT ETHERNET GIGABIT SWITCH INDUSTRIAL TEMP -40F + 176F
Mfg Part Number: SW-114 , Item #: 4859959
Image may not reflect the actual item.
Price: $124.99
Quantity:
In Stock: 90
Last Updated: Sep 10, 2025
No Sales Tax except these states
, PO and Wire.

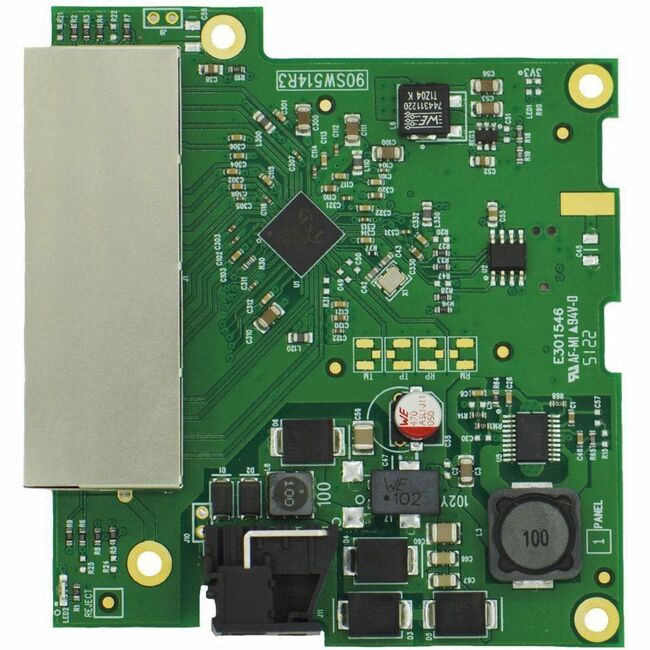

Embedded industrial 4 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.
Main Specification
| General Information | |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW114 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Brand Name | Brainboxes |
| Product Name | Embedded Industrial 4 Port Gigabit Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 4 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Input Voltage | 30 V DC |
| Input Voltage | 5 V DC |
| Power Source | DC |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 3.60 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.9" |
| Width | 6.3" |
| Depth | 5.3" |
| Weight (Approximate) | 6.74 oz |
| Miscellaneous | |
| Application/Usage | Industrial |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
