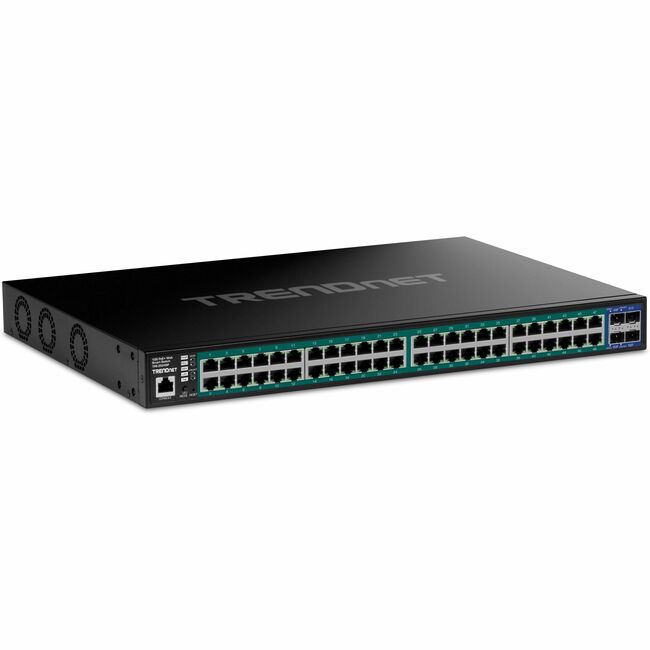

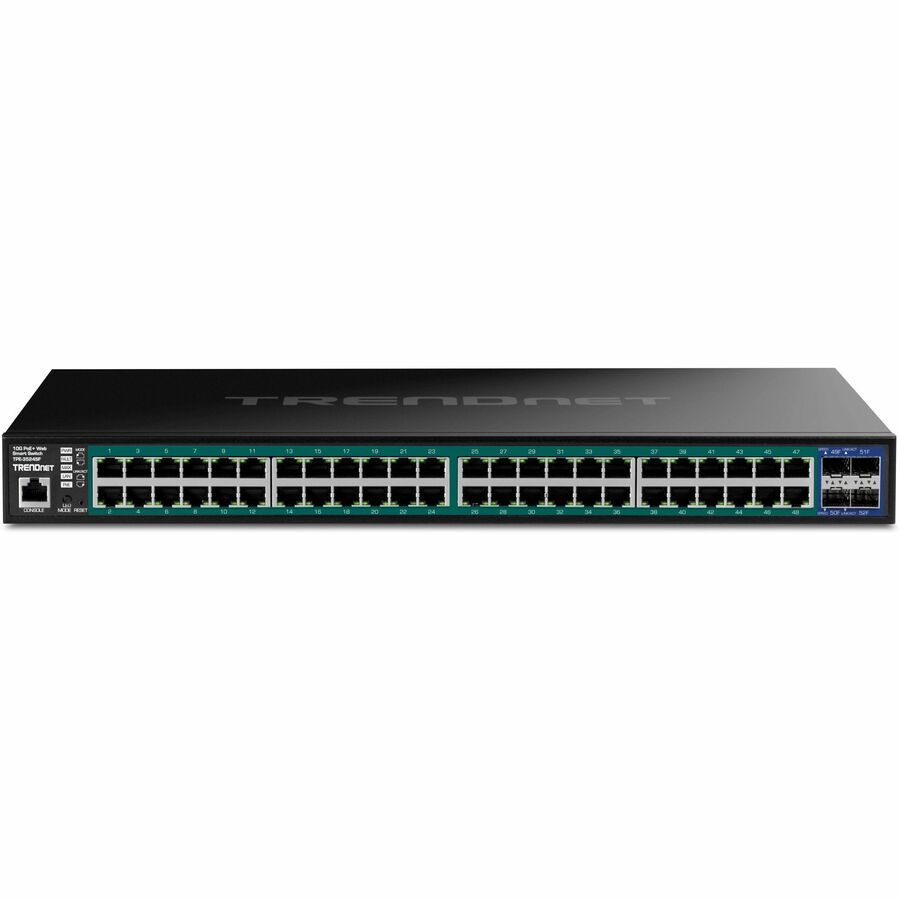

TRENDnet TPE-3524SF 52P Gig Web Smart PoE Switch

TRENDnet's 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ ports, model TPE-3524SF, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This managed PoE+ switch with SFP+ ports comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to the managed switch by using the L2+ Managed IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ ports to support long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

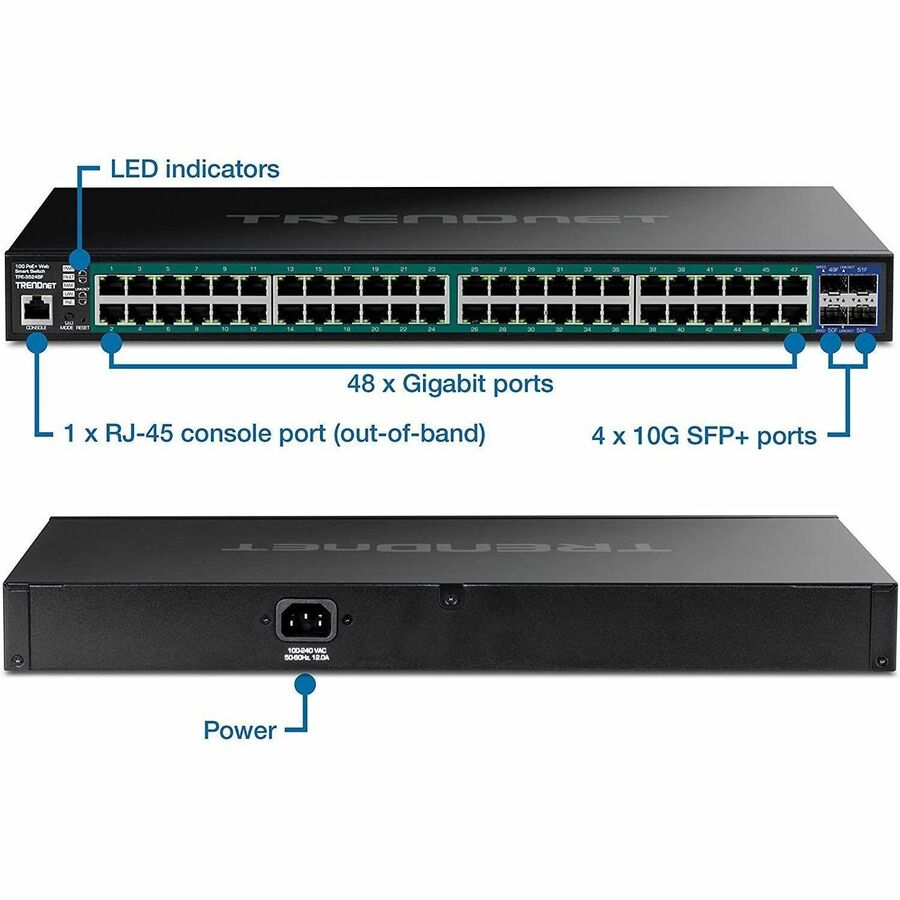

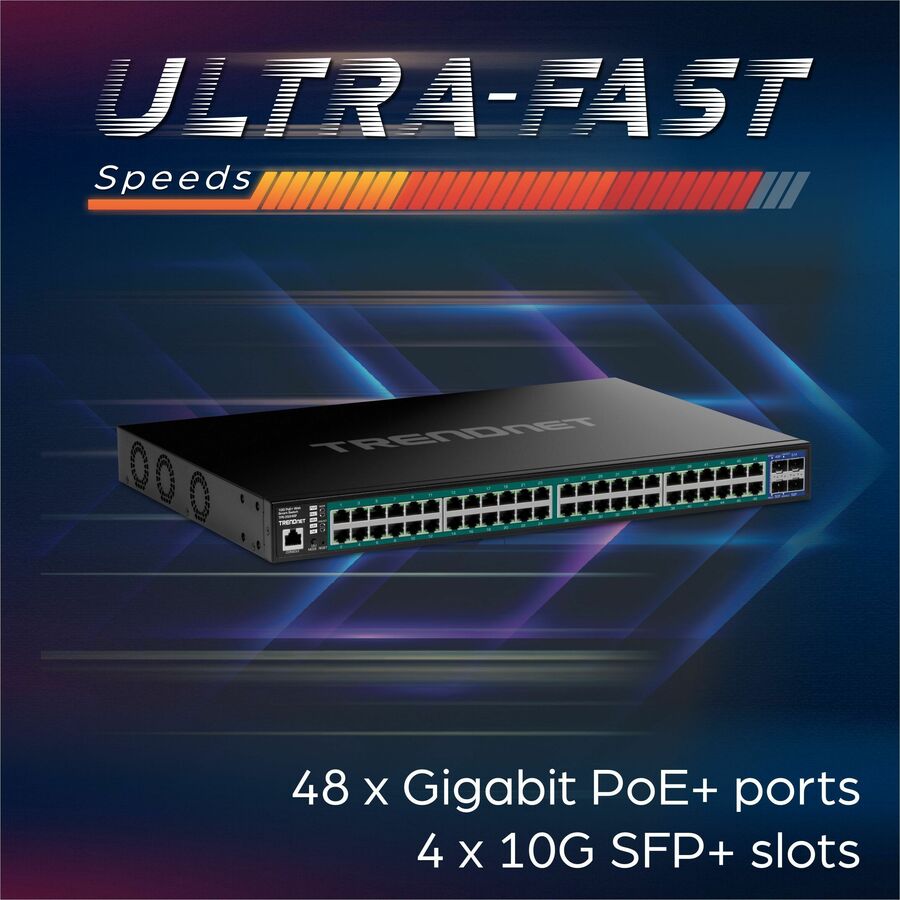

• DEVICE INTERFACE: 48 x Gigabit PoE+ Ports; 4 x 10G SFP+ Ports; LED Indicators; Reset Button; Rack Mountable
• LIFETIME PROTECTION -We stand by the quality of our products. The TPE-3524SF 52-Port Gigabit Web Smart PoE+ Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• SWITCHING CAPACITY: The Web Smart Gigabit PoE+ switch provides 48 gigabit (RJ-45) poe+ ports with 176Gbps switching capacity.
• POE POWER: A 740W total PoE power budget on the managed PoE+ switch supplies Power over Ethernet devices with up to 30W per port.
• WEB SMART MANAGEMENT: The 52 Port PoE+ Switch provides an easy to use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.
• IPv4/IPv6 STATIC ROUTING: Free up router resources by offloading routing processes to the managed PoE+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level.
• INTEGRATION FLEXIBILITY: The Gigabit PoE+ network switch managed features include access control lists, VLAN, IGMP/ MLD snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

More from the Manufacturer

General Information
Manufacturer	TRENDnet
Manufacturer Part Number	TPE3524SF
Manufacturer Website Address	http://www.trendnet.com
Brand Name	TRENDnet
Product Line	Web Smart
Product Model	TPE-3524SF
Product Name	Web Smart TPE-3524SF Ethernet Switch
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	48
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	4 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details	48 x Gigabit Ethernet PoE+
Media & Performance
Media Type Supported	Twisted Pair
Media Type Supported	Optical Fiber
Ethernet Technology	Gigabit Ethernet
Ethernet Technology	10 Gigabit Ethernet
Network Technology	10GBase-X
Network Technology	1000Base-T
I/O Expansions
Total Number of Expansion Slots	4
Expansion Slot Type	SFP+
Number of SFP+ Slots	4
Network & Communication
Layer Supported	2
Networking Standards	IEEE 802.1p
Networking Standards	IEEE 802.3ad
Networking Standards	IEEE 802.3ae
Networking Standards	IEEE 802.1s
Networking Standards	IEEE 802.3u
Networking Standards	IEEE 802.3af
Networking Standards	IEEE 802.3bz
Networking Standards	IEEE 802.1x
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.3az
Networking Standards	IEEE 802.1Q
Networking Standards	IEEE 802.3z
Networking Standards	IEEE 802.1D
Networking Standards	IEEE 802.1ab
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.3ab
Networking Standards	IEEE 802.3at
Networking Standards	IEEE 802.1w
Management & Protocols
Manageable	Yes
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	740 W
Input Voltage	120 V AC
Input Voltage	230 V AC
Frequency	60 Hz
Frequency	50 Hz
Power Source	Power Supply
Power Consumption	52 W
Physical Characteristics
Product Material	Metal
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7"
Width	17.3"
Depth	12.2"
Weight (Approximate)	10.41 lb
Miscellaneous
Package Contents	Web Smart TPE-3524SF Ethernet Switch Quick Installation Guide Power Cord (1.5m / 5 ft.) Console Cable (1m / 3.28 ft.) Rackmount Brackets
Application/Usage	VoIP Phone
Application/Usage	IP Camera
Application/Usage	Network
Application/Usage	Wireless Access Point
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	Lifetime
