CLUB 3D
CLUB 3D CSV-1381 3 TO 1 HDMI 2.1A SPEC SWITCH 3 INPUT 1 OUTPUT AT 8K60HZ/4K120HZ
Mfg Part Number: CSV-1381 , Item #: 4858540
, PO and Wire.

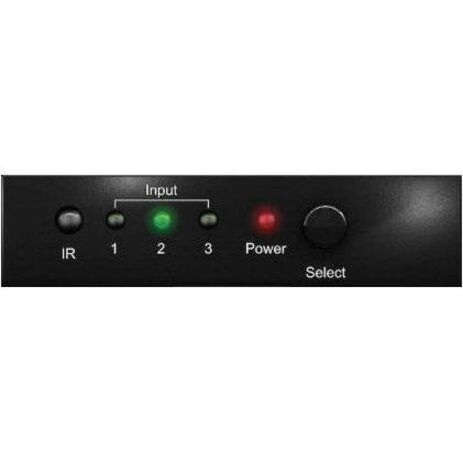

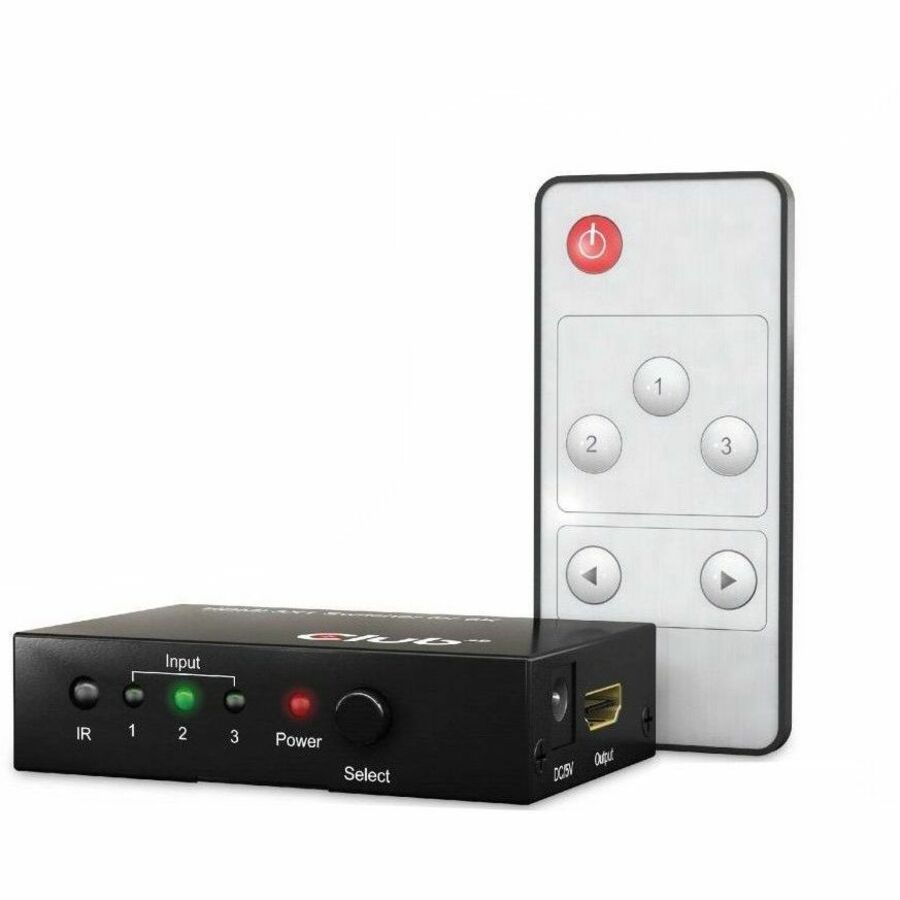

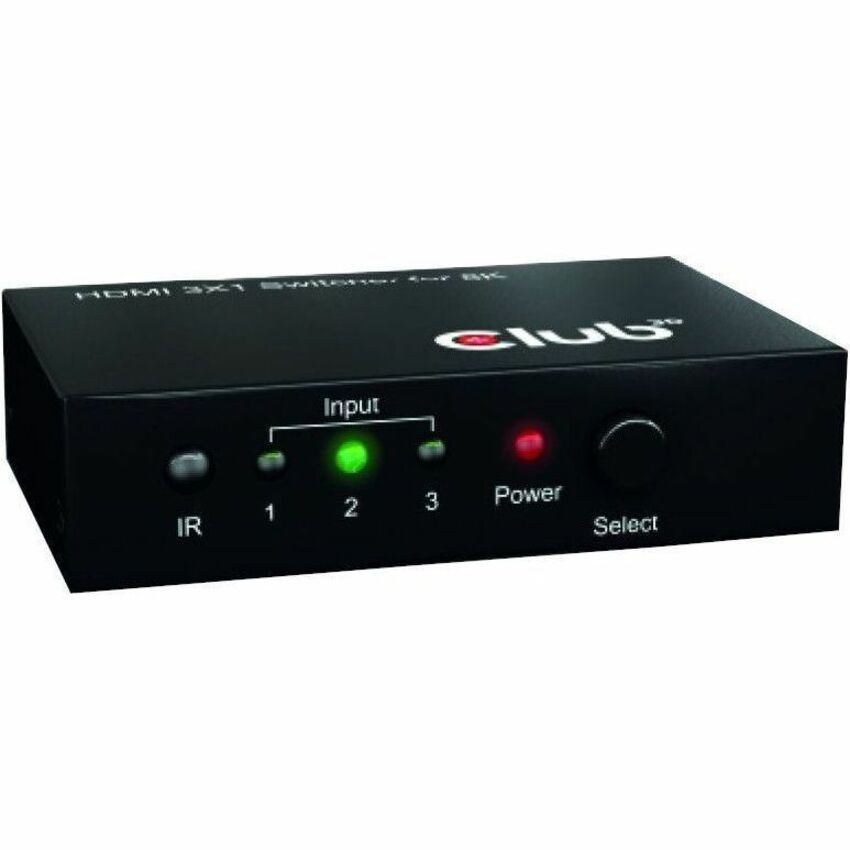

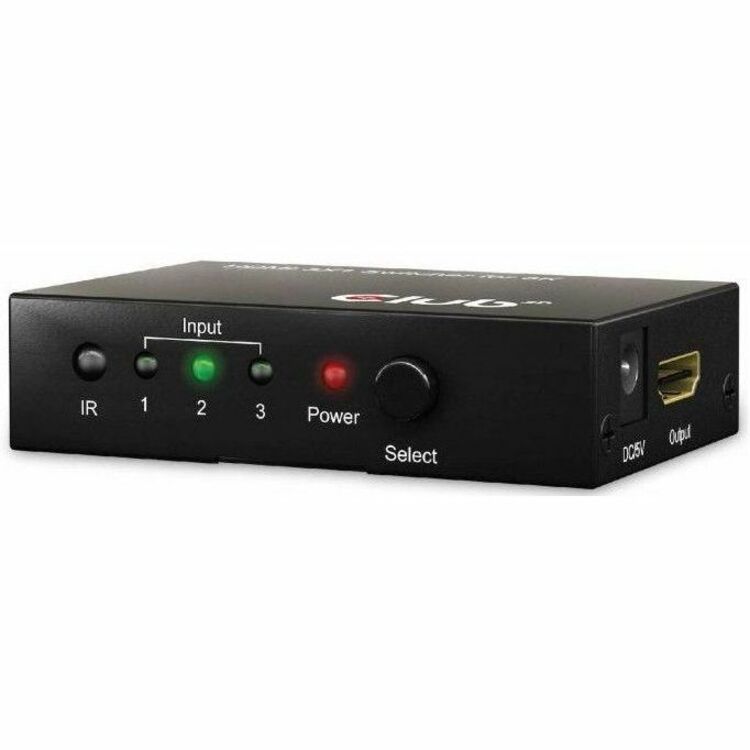

The Club 3D CSV-1381 is a 3 to 1 HDMI™ spec. Switch that routes your high-definition video and digital audio from any one of the HDMI™ inputs to an 8K60Hz/4K120Hz HDMI™ output. The easiest way of connecting your High-Resolution game consoles and/or your PC/Laptop to 1 High-Resolution HDMI™ display up to 8K60Hz or 4K120Hz. All inputs are capable to accommodate up to 8K60Hz/4K120Hz high-definition video sources simultaneously. The output sends the high-definition audio/video signals to a high definition(8K60Hz) HDMI™ spec. Display. Switching inputs can be done by key pressing, on the unit itself, or with an IR remote unit for easy switching. This is a high-performance and small-sized HDMI™ 8K Switcher in a metal housing with an external Power Supply of 100-240VAC / 5V-1A DC. It's an ideal assistant both at home and at work.
| General Information | |
| Manufacturer | Club 3D |
| Manufacturer Part Number | CSV1381 |
| Manufacturer Website Address | http://www.club-3d.nl |
| Brand Name | Club 3D |
| Product Name | 3 to 1 HDMI 8K60Hz/4K120Hz Switch |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 3 |
| Device Supported | Computer |
| Device Supported | Notebook |
| Number of Displays Supported | 3 |
| Refresh Rate | 60 Hz |
| Video | |
| Maximum Video Resolution | 7680 x 4320 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 1 |
| Physical Characteristics | |
| Height | 0.8" |
| Width | 3.2" |
| Depth | 2" |
| Weight (Approximate) | 3.70 oz |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Laptop |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
