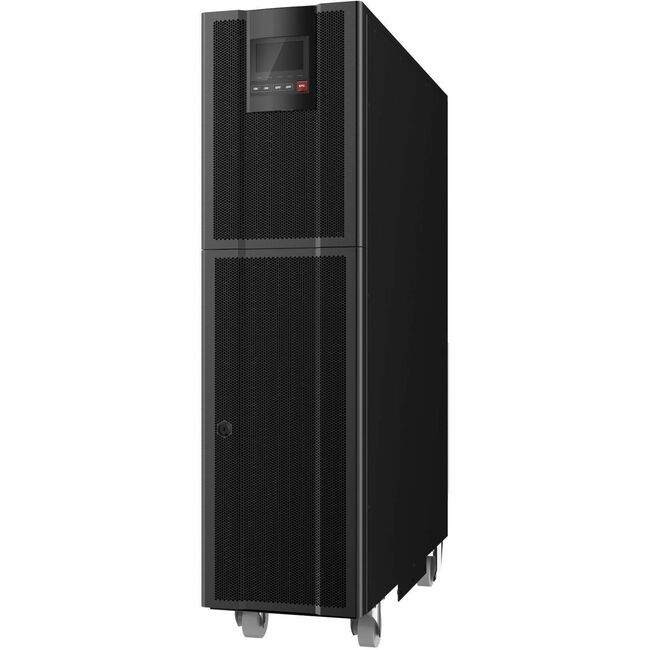

The N1C 3PL-Series is the perfect small-sized 3-phase UPS for you 208/120V power needs. Unity power factor and lithium-ion batteries provide maximum protection, runtime and ease of servicability in a compact tower form factor. Each 3PL-Series is less than 13" wide and stands less than 50" tall. Three capacities avaiable - 10 kW, 20 kW, and 30 kW - each of which are parallel connectable (up to 4x units) for added capacity or reduncancy. Modular slide-in lithium-iron phosphate (LiFePO4) batteries can be serviced in less than 5 minutes, and the on-board maintenance byupass switch allows for replacing other consumable parts such as capacitors and fans without losing power to the connected loads. 3PL-Series are highly efficient with 3-level IGBT technology for up to 98% efficiency in ECO mode or 94% efficiency in AC/AC mode for energy savings and lower operational costs. Th 15-year battery design life will lower the overall total cost of ownership compared to similarly sized lead acid 3-phse UPS systems. A full-featured intuitive touch-screen display puts UPS data at your fingertips, or the included SNMP card makes remote monitoring easy from a distance. Each 3-PL Series unit is backed by N1C's 5-year warranty on electronics and batteries out-of-the box with no added fees!
General Information | |
Manufacturer | N1 Critical Technologies, Inc |
Manufacturer Part Number | 10-700120 |
Manufacturer Website Address | http://www.n1critical.com |
Brand Name | N1C |
Product Series | 3PL |
Product Model | N1C.3PL208-10-XX2 |
Product Name | 3PL N1C.3PL208-10-XX2 10000VA Tower UPS |
Product Type | Double Conversion Online UPS |
Technical Information | |
Receptacle Type | Hardwire (L1/L2/L3/N/G) |
Receptacle Detail | 1 x Hardwire (L1/L2/L3/N/G) |
Phase | Three Phase |
Power Description | |
Load Capacity (VA) | 10000 VA |
Load Capacity (Watt) | 10 kW |
Input Voltage | 208 V AC |
Input Voltage Range | 122 V AC - 268 V AC |
Output Voltage | 220 V AC |
Input Frequency | 60 Hz |
Waveform Type | Pure Sine Wave |
Management | |
Network Management | SNMP |
Interfaces/Ports | |
EPO Port | Yes |
Battery Information | |
Battery Chemistry | Lithium-Ion (LiFePO4) |
Backup/Run Time (Full Load) | 30 Minute |
Backup/Run Time (Half Load) | 1 Hour |
Environmental Conditions | |
Maximum Operating Temperature | 104°F (40°C) |
Operating Humidity | 95% |
Physical Characteristics | |
Form Factor | Tower |
Height | 49.2" |
Width | 12.6" |
Depth | 37.8" |
Weight (Approximate) | 452 lb |
Miscellaneous | |
Package Contents |
|
Country of Origin | China |
Warranty | |
Limited Warranty | 5 Year |
