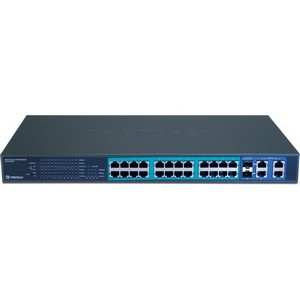

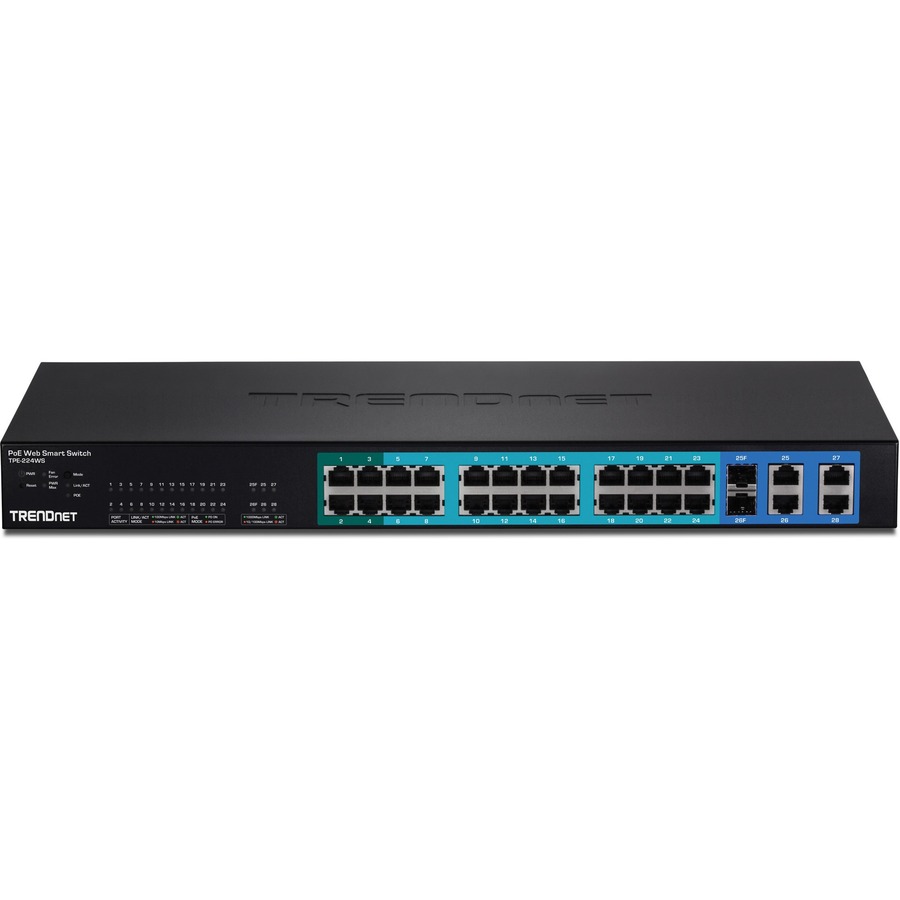

TPE-224WS TRENDnet 24-Port 10/100Mbps Web Smart PoE Switch

TRENDnet's 28-Port 10/100 Mbps Web Smart PoE+ Switch, model TPE-224WS, offers 24 x 10/100 Mbps PoE ports (Ports 1-4 support PoE+), 2 x Gigabit ports, 2 x shared Gigabit ports (RJ-45 or SFP), and a PoE Power budget of 193W. This IPv6 ready switch offers advanced traffic management, troubleshooting, access control, energy saving GREENnet, and monitoring features at a reduced cost.

• ETHERNET PORT INTERFACE: 20 x PoE ports (15.4 W / port), 4 x PoE+ ports (30 W / port), 2 x Gigabit ports, 2 x Shared Gigabit ports (RJ-45 or SFP)
• LIFETIME PROTECTION -We stand by the quality of our products. The TPE-224WS 28-Port 10/100Mbps Web Smart PoE+ Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• TRAFFIC MANAGEMENT: This web smart Ethernet switch has a broad range of network configurations that are support by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, GVRP, 802.1p Class of Service (CoS), and QoS queue scheduling
• TROUBLESHOOTING CAPABILITIES: The network switch provides real time traffic comparison charts, error group charts, and a convenient cable diagnostic test that aides in rapid troubleshooting
• FULL POE+ POWER BUDGET & SWITCHING CAPACITY: The Web Smart PoE+ switch has a 193W PoE power budget that supplies PoE+ (up to 30 W) to ports 1-4 and PoE (up to 15.4 W) to ports 5-24 along with auto classification and over current/short circuit protection

• WEB SMART MANAGEMENT: The 28 Port Switch provides an easy to use web-based GUI management for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment
• INTEGRATION FLEXIBILITY: The PoE+ network switch managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap and syslog for monitoring and flexible network integration
• TRAFFIC MANAGEMENT: This web smart Ethernet switch has a broad range of network configurations that are support by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, GVRP, 802.1p Class of Service (CoS), and QoS queue scheduling

More from the Manufacturer

General Information
Manufacturer	TRENDnet
Manufacturer Part Number	TPE-224WS
Manufacturer Website Address	http://www.trendnet.com
Brand Name	TRENDnet
Product Line	WebSmart
Product Model	TPE-224WS
Product Name	24-port 10/100Mbps Web Smart PoE Switch w/ 4 Gigabit Ports and 2 Mini-GBIC Slots
Product Condition	New
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	28
Number of Network (RJ-45) Ports	28
Port/Expansion Slot Details	24 x Fast Ethernet Network
Port/Expansion Slot Details	4 x Gigabit Ethernet Network
Port/Expansion Slot Details	2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported	Twisted Pair
Media Type Supported	Optical Fiber
Twisted Pair Cable Standard	Category 6
Ethernet Technology	Gigabit Ethernet
Network Technology	10Base-T
Network Technology	100/1000Base-T
Network Technology	10/100/1000Base-T
Network Technology	1000Base-T
I/O Expansions
Total Number of Expansion Slots	2
Expansion Slot Type	SFP
Shared SFP Slot	Yes
Number of SFP Slots	2
Network & Communication
Layer Supported	2
Management & Protocols
Manageable	Yes
Management	QoS Trunking Port-Based VLAN Port Mirroring Easy configuration via Web browser Proprietary Windows Based Management/Monitoring Utility
Power Description
Power Source	Power Supply
Power Consumption	170 W
Physical Characteristics
Height	1"
Width	6"
Depth	9"
Length	17.3"
Weight (Approximate)	8 oz
Miscellaneous
Package Contents	TPE-224WS Gigabit Web Smart PoE Switch Multi-Language User's Guide Web-Smart Utility CD-ROM Power Supply Rack Mount Kit
Additional Information	Full Wire-Speed Non-Blocking Reception and Transmission Power over Ethernet: 24 x 10/100Mbps PoE Ports Up to 15.4 watts per Port PD classification Identify Manual setting for PoE power limitation Supports PoE priority setting PoE over current protection PoE circuit sorting protection
Certifications & Standards	IEEE 802.3 IEEE802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af PoE
Country of Origin	China
TAA Compliant	Yes
NDAA Compliant	Yes
Warranty
Limited Warranty	Lifetime

TPE-224WS 28-port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-224WS reduces equipment cost by delivering data and power over existing network cable infrastructure. The switch offers advanced network management features such as VLAN and QoS to meet today´s secured network applications.

• Reduces equipment cost by delivering data and power over existing network cables
• 24 PoE 10/100Mbps and 4 Gigabit Auto-MDIX and Auto-Negotiating ports
• Features Port-Based VLAN support, QoS, Trunking and more

Hardware
Standard	IEEE 802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.3ab 1000base-T IEEE 802.3af Power over Ethernet
Network Media	10BASET: 2-pair UTP Cat. 3, 4, 5; up to 100m 100BASE-TX: 2-pair UTP Cat. 5, 5E; up to 100m 1000BASE-T: 4-pair UTP Cat. 5, 5E, 6; up to 100m PoE: 4-pair UTP Cat. 5; up to 100m
Protocol / Topology	CSMA/CD ; Star

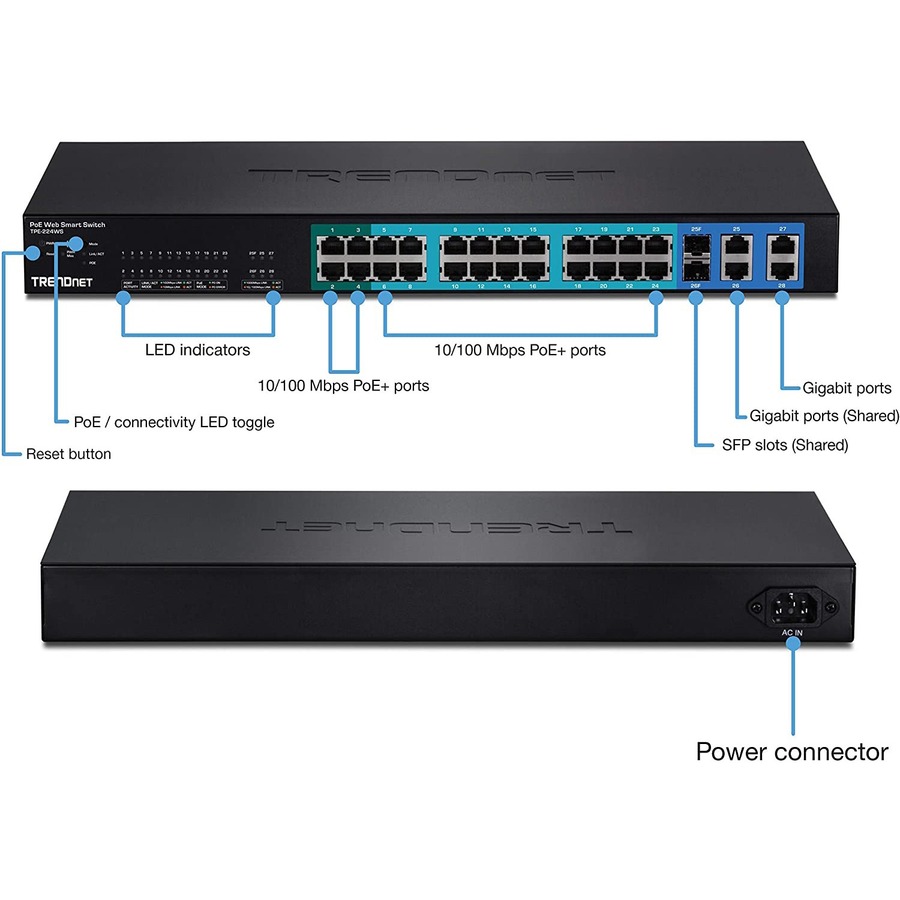

Ports	24 x 10/100Mbps Auto-MDIX PoE Ports 4 x 10/100/1000Mbps Auto-MDIX Gigabit Ports 2 x 1000Base-SX/LX Mini GBIC ports for optional Mini-GBIC modules (share with port 25,26)
Data Transfer Rate	Ethernet: 10/20Mbps (half/full duplex) Fast Ethernet: 100/200Mbps (half/full duplex) Gigabit: 2000Mbps (full duplex)
RAM Buffer / Filtering	1Mits / 8K entry per device

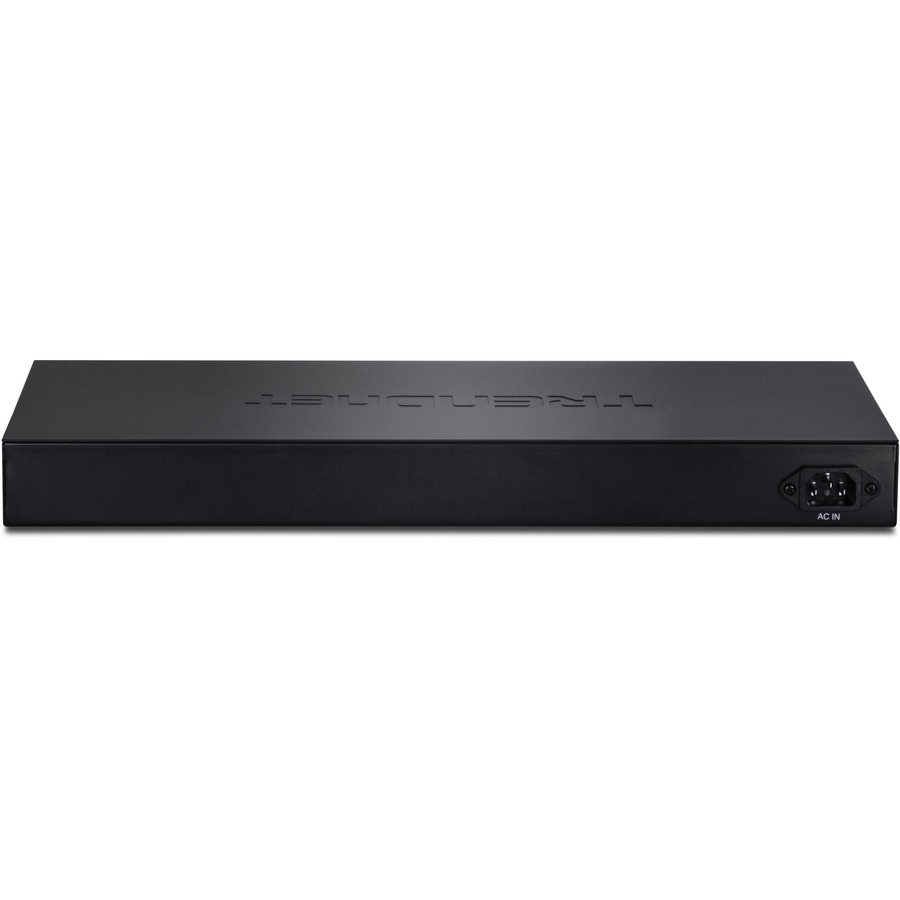

Power	100~240VAC 50/60Hz, Internal Universal Switching Power Supply
Diagnostic LEDs	Per Unit: Power, System Per Port: Link/Activity, Speed PoE: PoE Status
Power Consumption (170w max for PoE)	26.5 watts (no PD Device connected) 196.5 watts max (11 x 15.4 watts PoE Device connected)
Temperature	Operating: 0° ~ 40° C (32° ~ 104°F); Storage: -10° ~ 70° C (14° ~ 158°F)
Humidity	10%- 90% (non-condensing)

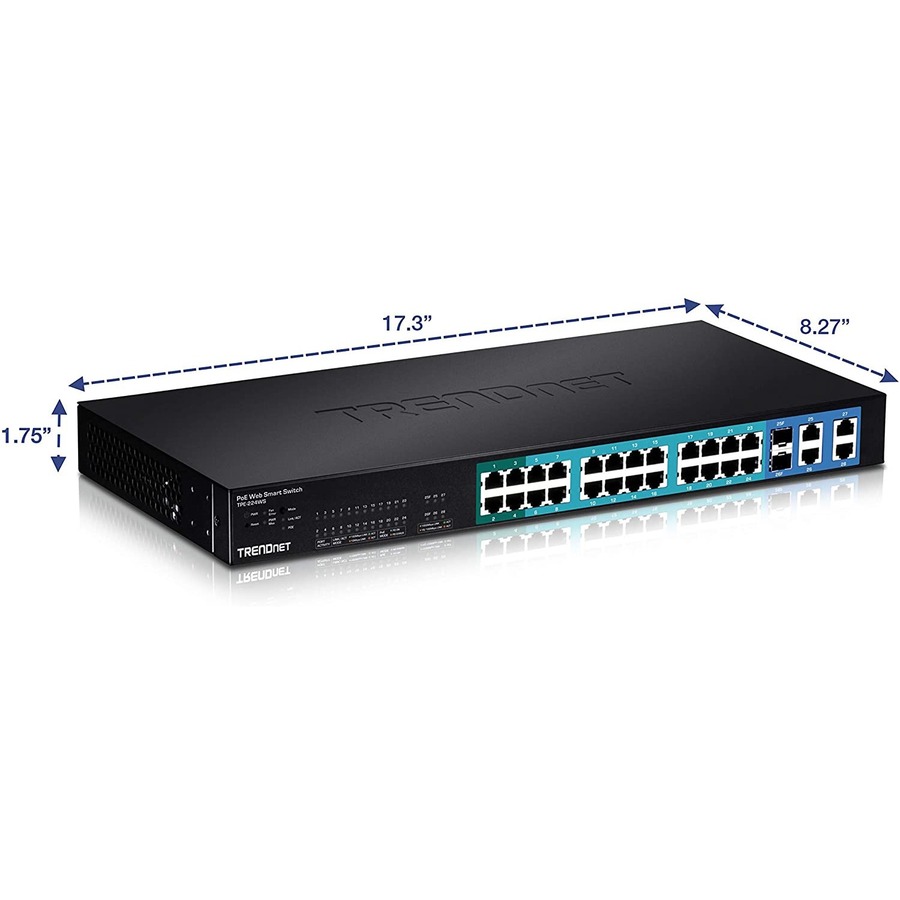

Dimensions	440 x 310 x 44 mm (17.3 x 12 x 1.73 inch) (W x H x D)
Certification	FCC, CE
PoE
Power over Ethernet	Up to 15.4 watts per port; Max 170W for all PoE ports PD classification Identify; Manual setting for PoE power limitation Supports PoE priority setting; PoE over current protection PoE circuit sorting protection PoE power on RJ-45 pin 3,6 for Power+ and pin 1,2 for Power
