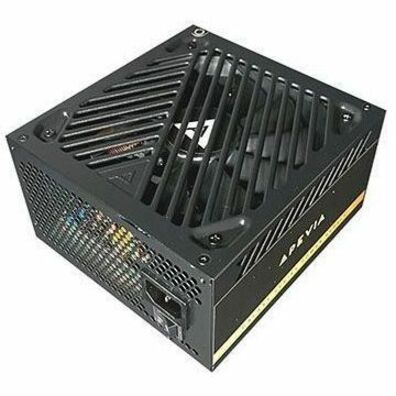

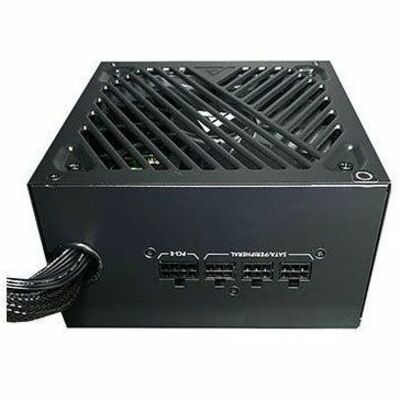

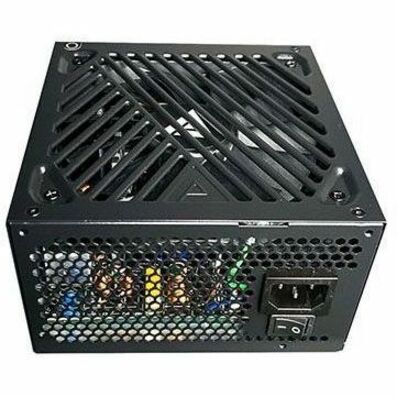

Apevia's Galaxy line of power supplies bring an elegant form and function to your system while still suiting your needs. Stable and reliable, it supports the newer ATX 12v2.3 standard and single rail setup. Boasting a cool black 135mm LED fan, it adds a nice simple look to any computer. The Galaxy line also uses a hybrid modular cable setup, allowing you to use only the connectors that you need. No excessive tucking of wires required. Just put the unused plugs away for future use. It also uses Active PFC, with a 99% factor correction, boosting performance and saving energy. No toggle switch included, the power supply automatically switches between 110V and 230V depending on the power grid its attached to. 80+ Gold certified.
General Information | |
Manufacturer | Apevia Corporation |
Manufacturer Part Number | ATX-GX1000W |
Manufacturer Website Address | http://www.apevia.com |
Brand Name | Apevia |
Product Line | Galaxy |
Product Model | ATX-GX1000W |
Product Name | Galaxy ATX-GX1000W 1200W Power Supply |
Packaged Quantity | 10 |
Product Type | Power Supply |
Technical Information | |
Specification Compliance | ATX12V v2.3 |
Power Factor Correction (PFC) | Active |
Number of Fans | 1 |
Fan Diameter | 135 mm |
Protection Type | Under Voltage |
Protection Type | Short Circuit |
Protection Type | Over Voltage |
Protection Type | Over Power |
ATI CrossFire Supported | Yes |
NVIDIA SLI Supported | Yes |
Power Description | |
Number of +12V Rails | 1 |
Input Voltage | 230 V AC |
Input Voltage | 120 V AC |
Output Voltage | 5 V SB |
Output Voltage | 3.3 V DC |
Output Voltage | 12 V DC |
Output Voltage | 5 V DC |
Output Voltage | -12 V DC |
Output Voltage Detail | -12 V DC @ 0.3 A |
Output Voltage Detail | 12 V DC @ 83.3 A |
Output Voltage Detail | 5 V DC @ 2.5 A |
Output Voltage Detail | 5 V DC @ 20 A |
Output Voltage Detail | 3.3 V DC @ 20 A |
Output Power | 1000 W |
Input Frequency | 60Hz |
Interfaces/Ports | |
Number of SATA Power Connectors | 4 |
PCI Express Connector | Yes |
Number of (6+2 pin) PCI Express Power Connectors | 4 |
Number of (4+4 pin) CPU Power Connectors | 2 |
Physical Characteristics | |
Color Family | Black |
Product Color | Black |
Form Factor | Internal |
Height | 3.3" |
Width | 5.9" |
Weight (Approximate) | 5 lb |
Miscellaneous | |
Energy Efficiency Certification | 80 Plus Gold |
Warranty | |
Limited Warranty | 3 Year |
