KIOXIA

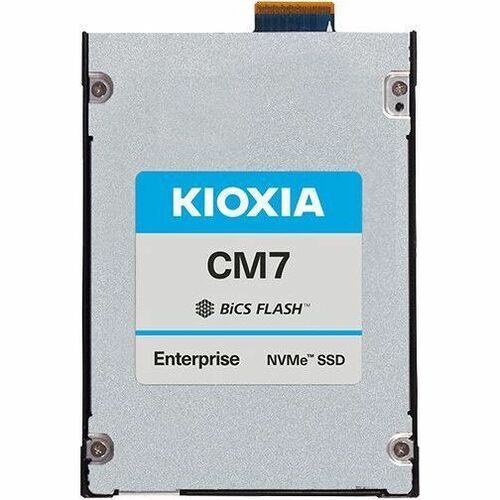

Kioxia SSD KCM7XVJE6T40 6.4TB E3.S PCIe5 CM7-V 3DWPD SIE Bare
Mfg Part Number: KCM7XVJE6T40 , Item #: 4850554
Image may not reflect the actual item.
Price: $1,448.71
+ Free Shipping
Quantity:
More to Come
Last Updated: May 12, 2025
No Sales Tax except these states
, PO and Wire.
Enterprise NVMe™ Mixed Use SSD
KIOXIA CM7-V Series is a mixed use SSD that is optimized to support a broad range of enterprise applications and associated workloads, including high performance computing, online transaction processing, IoT and edge computing, media streaming. Built on PCIe®5.0 and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 600K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-V Series of enterprise NVMe SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 12.8 TB, making them ideally suited for read and write mixed use enterprise applications.
Key Features
- PCIe 5.0, NVMe™ 2.0 specification compliant
- Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
- Form factor: E3.S, 7.5 mm thickness
- Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC
- Dual-port design for high availability applications
- High performance with lower power consumption
- Power loss protection (PLP) and end-to-end data protection
- Suited for 24x7 enterprise workloads
- Security options: SIE, SED, FIPS SED
Key Applications
- Software defined storage and virtualization
- Data warehousing
- Online transaction processing (OLTP)
- (transactional and relational databases)
- Business intelligence
- Artificial intelligence and machine learning
Main Specification
| General Information | |
| Manufacturer | Toshiba |
| Manufacturer Part Number | KCM7XVJE6T40 |
| Manufacturer Website Address | http://www.toshiba.com |
| Brand Name | KIOXIA |
| Product Series | CM7-V |
| Product Model | KCM7XVJE6T40 |
| Product Name | CM7-V KCM7XVJE6T40 Solid State Drive |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 6.25 TB |
| Drive Performance | |
| Random 4KB Read | 2450000IOPS |
| Random 4KB Write | 550000IOPS |
| Endurance (DWPD) | 3 |
| Endurance Type | Mixed Use |
| Maximum Sequential Read | 13.67 GB/s |
| Maximum Sequential Write | 6.59 GB/s |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 5.0 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | E3.S |
| Height | 0.3" |
| Width | 3" |
| Length | 4.4" |
| Weight (Approximate) | 3.88 oz |
| Miscellaneous | |
| Device Supported | Data Center |
