KIOXIA

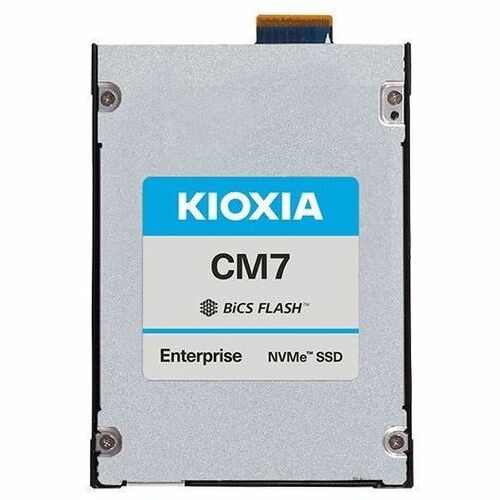

Kioxia SSD KCM71RJE15T3 15.36TB E3.S PCIe5 CM7R 1DWPD Non-SED Bare
Mfg Part Number: KCM71RJE15T3 , Item #: 4850301
Image may not reflect the actual item.
Price: $2,812.47
+ Free Shipping
Quantity:
More to Come
Last Updated: Jul 28, 2025
No Sales Tax except these states
, PO and Wire.
KIOXIA CM7-R Series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 5.0 and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-R Series of enterprise NVMe™ SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 15.36 TB, making them ideally suited for read intensive enterprise applications.
Key Features
- PCIe® 5.0, NVMe™ 2.0 specification compliant
- Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
- Form factor: E3.S, 7.5 mm thickness
- Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC
- Dual-port design for high availability applications
- High performance with lower power consumption
- Power loss protection (PLP) and end-to-end data protection
- Suited for 24x7 enterprise workloads
- Security options: SIE, SED, FIPS SED
Key Applications
- Software defined storage and virtualization
- Data warehousing
- Online transaction processing (OLTP) (transactional and relational databases)
- Business intelligence
- Artificial intelligence and machine learning
Main Specification
| General Information | |
| Manufacturer | Toshiba |
| Manufacturer Part Number | KCM71RJE15T3 |
| Manufacturer Website Address | http://www.toshiba.com |
| Brand Name | KIOXIA |
| Product Series | CM7-R |
| Product Model | KCM71RJE15T3 |
| Product Name | Enterprise NVMe Read Intensive SSD |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 15 TB |
| Features | Power Loss Protection |
| Features | End-to-end Data Protection |
| Features | Self-Encrypting Drive (SED) |
| Encryption Algorithm | FIPS |
| Drive Performance | |
| Maximum Read Transfer Rate | 13000 MB/s |
| Maximum Write Transfer Rate | 5300 MB/s |
| Random 4KB Read | 2000000IOPS |
| Random 4KB Write | 260000IOPS |
| Endurance (DWPD) | 1 |
| Endurance Type | Read Intensive |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 5.0 x2 |
| Power Description | |
| Standby Power Consumption | 5 W |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | E3.S |
| Height | 0.3" |
| Width | 3" |
| Length | 4.4" |
| Weight (Approximate) | 3.88 oz |
| Miscellaneous | |
| Device Supported | Storage System |
| Device Supported | Server |
