KOAMTAC

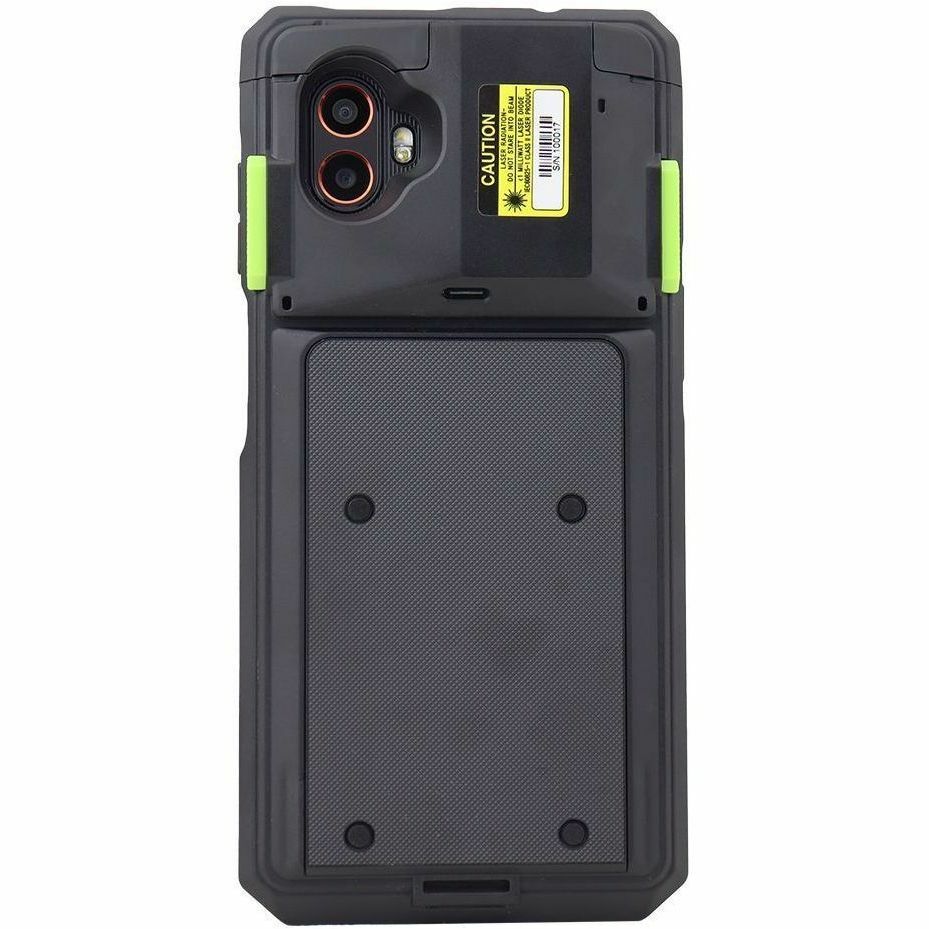

KOAMTAC 401060 SKX6PROER

Mfg Part Number:  401060
Image may not reflect the actual item.
Price: $967.51 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 09, 2025
No Sales Tax except these states
, PO and Wire.

The SKX family of SmartSled scanners grows larger with the addition of the SKX6Pro. The SKX6Pro is designed specifically for the Samsung Galaxy XCover6 Pro and provides users with dependable barcode scanning abilities, excellent companion and accessory availability, a rugged IP67 design, and top-notch development tools ensuring an exceptional scanning experience.

The SKX6Pro SmartSled can be equipped with three different scan engines. The standard range SKX6Pro is ideal for scanning barcodes at close proximity, while the medium range SKX6ProMR, provides greater flexibility and range for scanning from a moderate distance. Lastly, the extended range SKX6ProER boasts the longest read range and is suitable for distance reading. This provides businesses with the flexibility to choose the best option for their scanning needs, whether it's scanning up close or from a distance.

The slim design of the SKX Smartsled platform is based on the patented KOAMTAC modular system for SmartSled barcode, RFID, and mPOS sled scanners but has the additional feature of a fully integrated case where the barcode scanner is part of the case solution. This ensures your data will transfer seamlessly and reliably to the Galaxy XCover6 Pro via USB OTG. A variety of Charging Cradles are available for the SKX6Pro and can be scaled to large and small operations. All SKX6Pro Charging Cradles feature 15W fast charging and can be configured in a variety of ways.

Main Specification
General Information
Manufacturer KoamTac, Inc
Manufacturer Part Number 401060
Manufacturer Website Address http://www.koamtac.com
Brand Name KoamTac
Product Model SKX6ProER
Product Name SKX6Pro 2D Imager SmartSled
Product Type Barcode Scanner
Technical Information
Scanning Capability 1D
Scanning Capability 2D
Barcode Symbology Supported

1D:

  • Codabar, Code 11, Code 32, Code 39, Code 93,Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5,Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited,GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA,TCL39, Telepen, Tri-Optic, UPC-A, UPC-E0, UPC-E1

2D:

  • Aztec Code, Aztec Runes, Codablock F, Code 49,Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code,Han Xin Code

Postal Codes:

  • POSTNET, Planet Code, British Post, Canadian Post,Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post,Korean Post
Image Sensor Type Imager
Scanner Range Extended Range
Scanning Distance 112.10"
Drop Specification
  • 5' (1.5 m)
Minimum Element Resolution (Code 39) 20 mil
Interfaces/Ports
Host Interface USB
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Rugged Yes
Weight (Approximate) 2.90 oz
Miscellaneous
Compatibility
  • Samsung Galaxy XCover6 Pro
Ingress Protection (IP) Rating IP67
Platform Supported Smartphone
Environmental Compliance Restriction of Hazardous Substances (RoHS)
