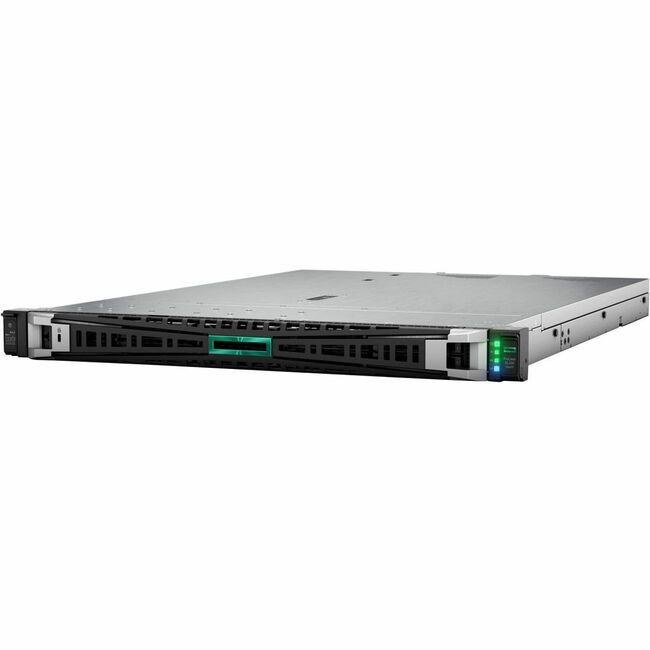

HPE ProLiant DL320 Gen11
Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable to diverse workloads and environments, the compact 1U 1P HPE ProLiant DL320 Gen11 delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL320 Gen11 is ideal for IT infrastructure, either physical, virtual, or containerized.
The HPE ProLiant DL320 Gen11 supports the 4th Generation Intel® Xeon® Scalable Processors with up to 32 cores, plus 4800 MT/s HPE DDR5 Smart Memory up to 2.0 TB. Introducing PCIe Gen5 and Intel® Software Guard Extensions (SGX) support on the single socket segment, the HPE ProLiant DL320 Gen11 delivers premium compute, memory, I/O, and security capabilities for customers focused on performance at 1P economics. DL320 Gen11 is an excellent choice for daily business and workloads in Data Management, Virtualization, Content Delivery Network (CDN), Intelligent Video Analytics (IVA), General Compute, Data Collection, Software Defined Storage, Software Defined Compute, Cold Storage, Compute Storage, Edge AI, and Virtual Desktop Infrastructure (VDI).
| General Information | |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P57688B21 |
| Manufacturer Website Address | http://www.hpe.com |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | DL320 G11 |
| Product Name | ProLiant DL320 Gen11 5416S 2.0GHz 16-core 1P 32GB-R MR408i-o 8SFF 500W PS Server |
| Product Type | Server |
| Processor | |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Gold |
| Processor Generation | 4th Gen |
| Processor Model | 5416S |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Speed | 2 GHz |
| Cache | 30 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 2.04 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Total Number of Memory Slots | 16 |
| Number of Occupied Memory Slots | 1 |
| Signal Processing | Registered (Buffered) |
| Controllers | |
| Controller Model | MR408i-o |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Total Number of Expansion Slots | 2 |
| PCI Express Details | 2 x16 FHHL PCIe Gen5 |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Remote Management | Yes |
| Remote Management Controller | HPE iLO6 |
| Operating System | |
| Operating System Supported | Citrix XenServer |
| Operating System Supported | Windows Server |
| Operating System Supported | Red Hat Enterprise Linux |
| Operating System Supported | Ubuntu |
| Operating System Supported | Oracle Linux |
| Operating System Supported | CentOS |
| Operating System Supported | SuSE Linux Enterprise Server |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 500 W |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.1" |
| Depth | 23.8" |
| Weight (Approximate) | 36.84 lb |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
