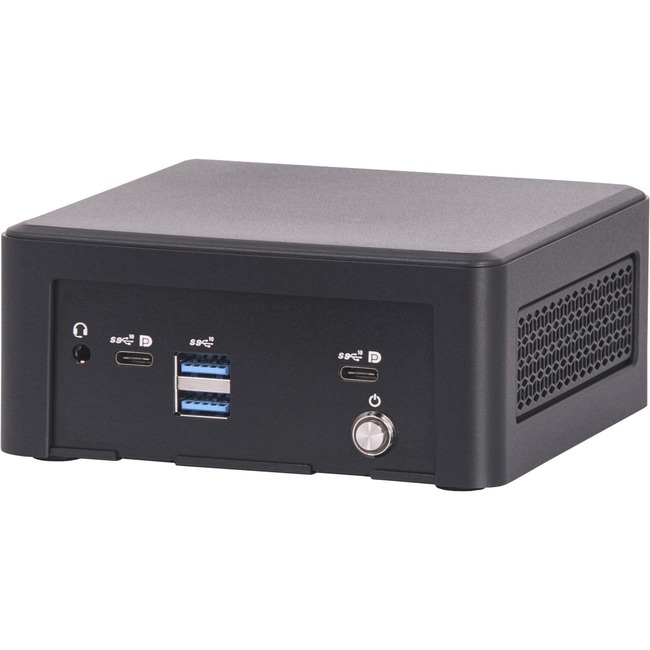

Evolve your Mini PC Experience
The Topaz 3 NUC harnesses Intel's latest 13th Gen Raptor Lake 1340P Processor with Iris Xe graphics to provide the most crisp computing experience to date. With up to 64GB of DDR4- 3200 memory and up to 10TB of M.2 storage, Topaz 3 has the capabilities you need to evolve your mini PC experience or corporate infrastructure to the latest and greatest technology available. Intel's 13th Gen 1340P processor ushers a host of new and improved features including increased core counts and an upgraded Intel® Thread Director to increase both your efficiency and your productivity.
Crystal Clear, Clean & Secure Computing
From a home theater to a digital signage kiosk, the Intel® Iris Xe Graphics in Topaz 3 have you covered. With support for up to four 4K displays, you can enjoy crisp visuals from every angle. Take advantage of super-fast networking with dual 2.5Gb LAN ports and onboard TPM 2.0, giving you a robust and secure connection to your home or office network, or ditch the cabling and go wireless with Wi-Fi 6E and Bluetooth 5.3 for that sleek setup look, without sacrificing performance and reliability.
The Number One Choice for your Next Mini PC
Topaz 3 offers a plethora of customization options while maintaining that 4x4 footprint people love. From Gen4 PCIe drives, to I/O options like additional USB ports and serial adapters via the replaceable lid, you have the versatility you need to meet your use case. The Topaz 3 NUC with a 13th Gen Intel® Core 1340P Processor is the number one choice for your mini PC needs for both the home and the office, so get yours, today.
General Information | |
Manufacturer | SimplyNUC |
Manufacturer Part Number | 91M-9GG5-0C1 |
Manufacturer Website Address | http://www.simplynuc.co.uk |
Brand Name | SimplyNUC |
Product Line | Topaz 3 |
Product Model | NUC13TZi5 |
Product Name | Topaz 3 NUC13TZi5 Desktop Computer |
Product Type | Desktop Computer |
Processor | |
Processor Manufacturer | Intel |
Processor Type | Core i5 |
Processor Generation | 13th Gen |
Processor Model | i5-1340P |
Processor Core | Dodeca-core (12 Core) |
Maximum Turbo Speed | 4.60 GHz |
Chipset | |
Chipset Manufacturer | Intel |
Memory | |
Standard Memory | 8 GB |
Maximum Memory Supported | 64 GB |
Memory Technology | DDR4 SDRAM |
Total Number of Memory Slots | 2.0 |
Storage | |
Total Solid State Drive Capacity | 256 GB |
Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
SSD Form Factor | M.2 |
Display & Graphics | |
Graphics Controller Manufacturer | Intel |
Graphics Controller Model | Iris Xe Graphics |
Graphics Memory Technology | DDR4 SDRAM |
Graphics Memory Accessibility | Shared |
Network & Communication | |
LAN Model | i225-LM |
Ethernet Technology | 2.5 Gigabit Ethernet |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11ax |
Bluetooth | Yes |

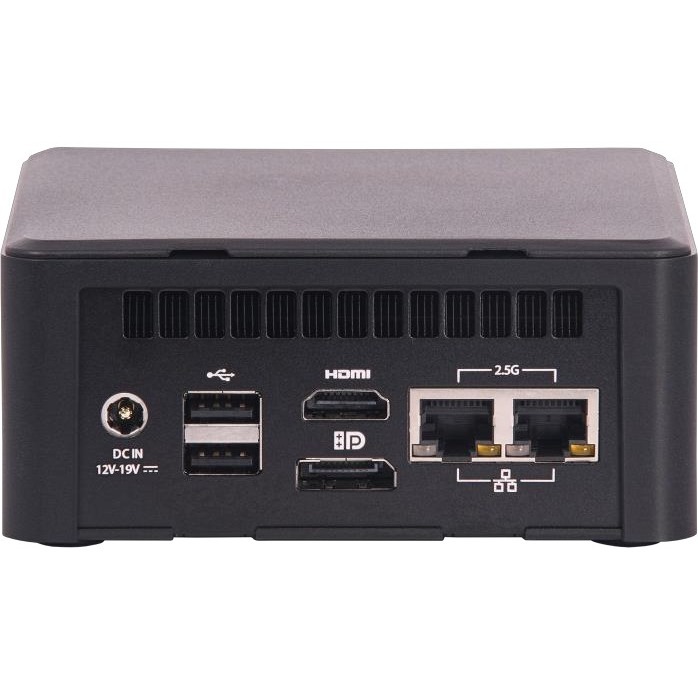

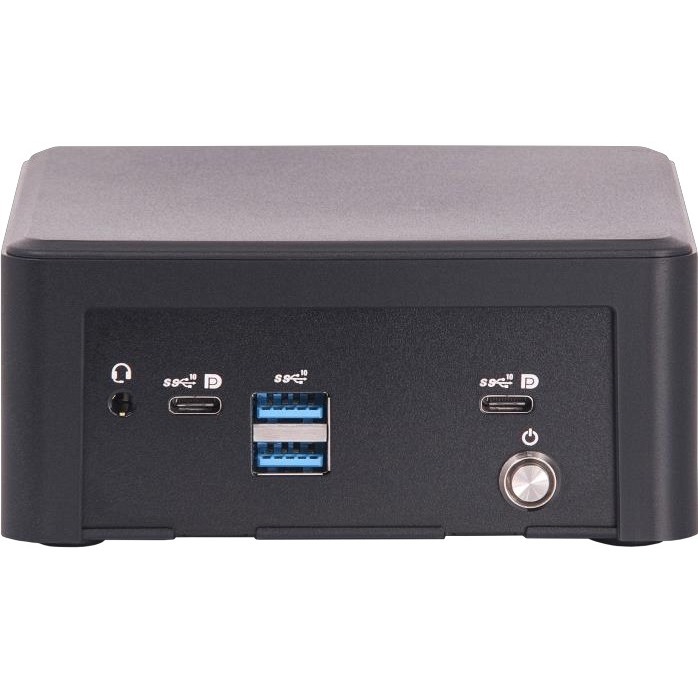

Interfaces/Ports | |
HDMI (Rear) | Yes |
Total Number of USB Ports | 6 |
Number of USB 3.2 Gen 2 Ports | 4 |
USB Type-C (Front) | Yes |
USB Type-C Detail | 2x USB 3.2 Gen2 Type-C |
Number Of Ethernet Ports | 2 |
Number of DisplayPort Outputs (Rear) | 1 |
DisplayPort (Rear) | Yes |
Operating System | |
Operating System Platform | Windows |
Operating System | Windows 11 Pro |
Power Description | |
Maximum Power Supply Wattage | 90 W |
Physical Characteristics | |
Form Factor | Mini PC |
Height | 1.9" |
Width | 4.5" |
Depth | 4.5" |
Miscellaneous | |
Package Contents |
|
Features | Security Slot |
Environmentally Friendly | Yes |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 3 Year |
Additional Warranty Information | 3-yr Warranty and Support Service |
