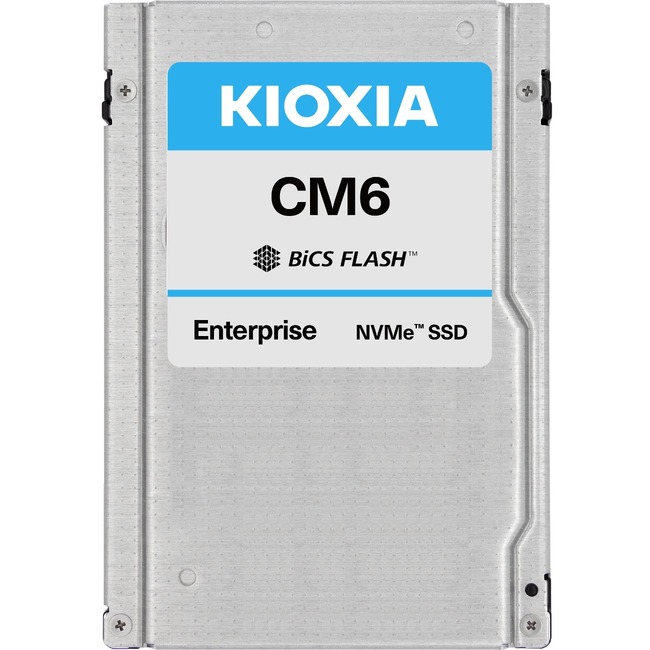

Kioxia SSD KCM61VUL6T40 6.4T 2.5 PCIe4 CM6-V SDFHQ03GEA Bare

Enterprise NVMe™ Mixed-use SSD

The CM6-V series is a mixed-use SSD that is optimized to support a broad range of enterprise applications and associated workloads, including high performance computing, online transaction processing, IoT and edge computing, media streaming. Built on PCIe^® 4.0 and NVMe™1.4 technology, the CM6 Series SSDs deliver excellent performance up to 1.4M IOPS (random read) and 350 KIOPS (random write), with maximum power consumption of 25 W.

Featuring KIOXIA Corporation's 96-layer BiCS FLASH™ 3D TLC memory, the CM6-V Series of enterprise NVMe™ SSDs delivers 3 DWPD (Drive Writes Per Day) of endurance and supports storage capacities up to 12.8 TB, making them ideally suited for read and write mixed-use enterpriseapplications.

Key Features

• PCIe® 4.0, NVMe™ 1.4 specification compliant
• Form factor: 2.5-inch, 15mm Z-height
• Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ 96-layer 3D TLC memory
• SFF-TA-1001 conformant (U.3), works with Tri-mode controllers and backplanes
• Dual-port design for high availability applications
• 6th generation, two-die failure recovery and double parity protection
• High performance with lower power consumption
• Power loss protection (PLP) and end-to-end data protection
• Suited for 24x7 enterprise workloads
• Data security options: SIE, SED, FIPS 140-2
• Six power mode settings

Key Applications

• Data warehousing
• Online transaction processing (OLTP)
  (transactional and relational databases)
• Business intelligence
• Artificial intelligence and machine learning
