CISCO

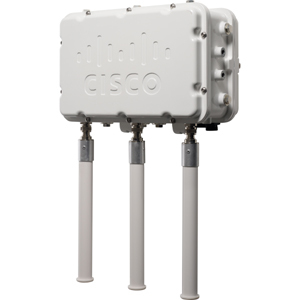

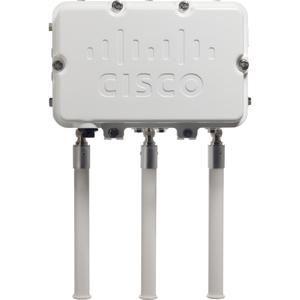

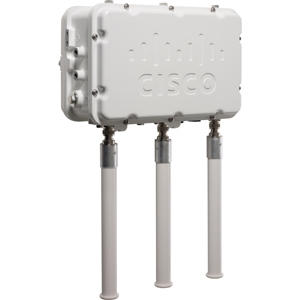

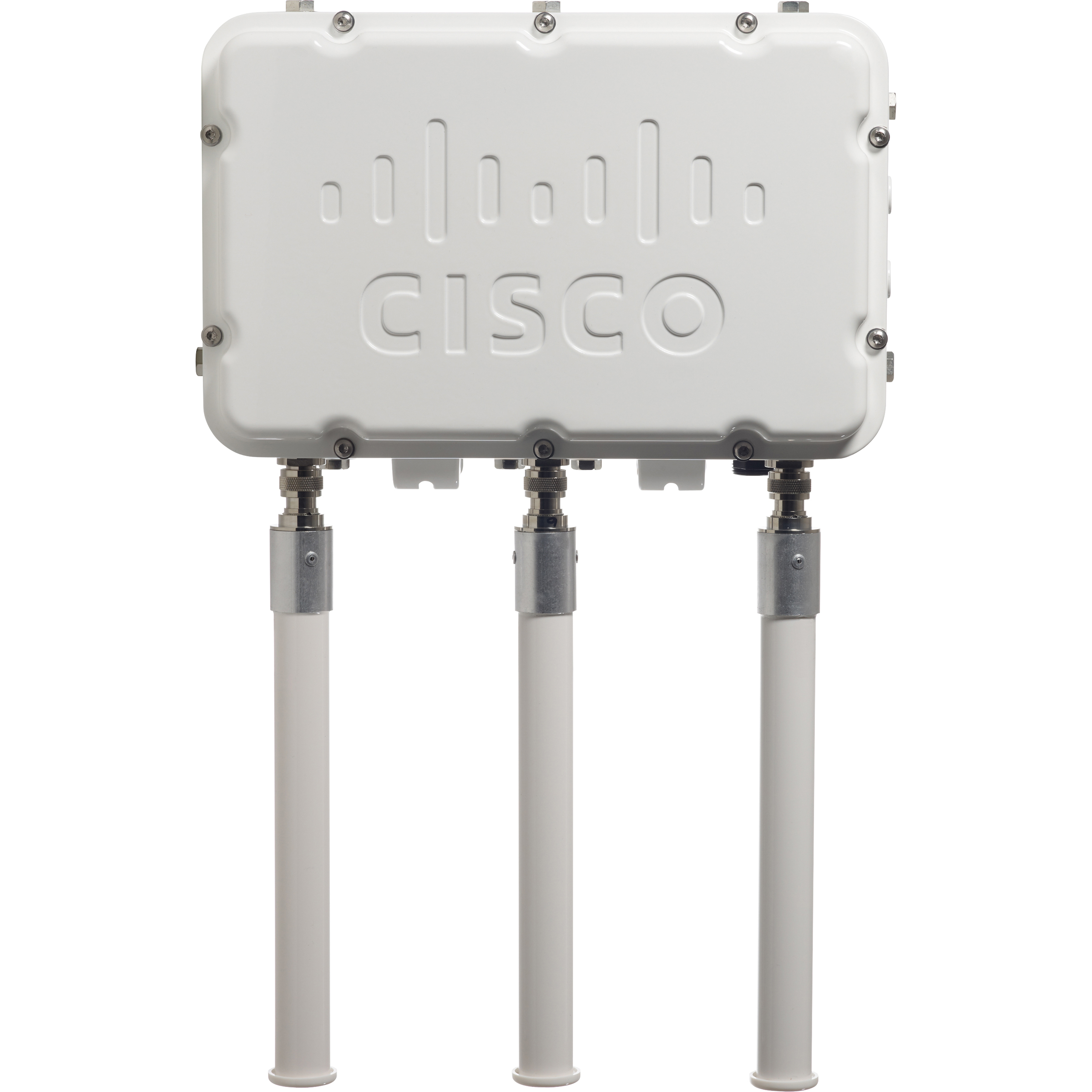

CISCO AIR-CAP1552EAK9-RF 802.11N OUTDOOR MESH AP, EXT. ANT., A RE

Mfg Part Number:  AIR-CAP1552EAK9-RF
Image may not reflect the actual item.
Price: $2,062.43 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 03, 2026
No Sales Tax except these states
, PO and Wire.

Flexible, High-Performance Mesh

The Cisco Aironet 1550 Series Outdoor Access Point offers a flexible, secure, and scalable mesh platform that is part of the Cisco Unified Wireless Network and the Cisco Service Provider Wi-Fi solution. It offers high-performance mobility across large metropolitan-sized areas and enterprise campuses, manufacturing yards, and mining pits. Carrier-grade design allows service providers to take advantage of Wi-Fi for next-generation mobile data offloads. The Cisco Aironet 1550 Series provides high-performance device access through improved radio sensitivity and range with 802.11a/b/g/n multiple-input multiple-output (MIMO) technology, with two spatial streams. Multiple uplink and power options are available. The 802.3af-compliant, Power-over-Ethernet (PoE) interface makes it easy to connect IP devices, such as IP video cameras. NEMA Type 4X enclosures help ensure a robust system that can withstand demanding environments. To help ensure uptime for mission-critical applications even in the event that electrical power becomes unavailable, the Cisco Aironet 1550 Series offers an internal battery for backup power.

Main Specification
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number AIR-CAP1552EAK9-RF
Manufacturer Website Address http://www.cisco.com
Brand Name Cisco
Product Line Aironet
Product Series 1550
Product Model 1552E
Product Name Aironet 1552E Wireless Access Point
Product Condition Refurbished
Product Type Wireless Access Point
Technical Information
Wireless LAN Standard IEEE 802.11n
ISM Band Yes
UNII Band Yes
ISM Minimum Frequency 2.40 GHz
ISM Maximum Frequency 2.48 GHz
UNII Minimum Frequency 5.25 GHz
UNII Maximum Frequency 5.85 GHz
Wireless Transmission Speed 300 Mbit/s
Wireless Security
  • AES
  • TLIP
  • 802.11i
  • WPA2
  • WPA
  • 802.1X
  • EAP (EAP-PEAP)
  • EAP (EAP-TLS)
  • TLS (EAP-TTLS)
  • Cisco LEAP
Features Quality of Service (QoS)
Features MIMO Technology
Interfaces/Ports
Ethernet Technology Ethernet
Ethernet Technology Gigabit Ethernet
Ethernet Technology Fast Ethernet
Number of Network (RJ-45) Ports 1
Network (RJ-11) No
PoE (RJ-45) Port No
VGA No
HDMI No
Audio Line Out No
Serial Port No
USB No
Powerline No
I/O Expansions
Total Number of Expansion Slots 1
Expansion Slot Type SFP (mini-GBIC)
Number of SFP mini-GBIC Slots 1
Management & Protocols
Management

Cisco Prime Network Control System (NCS)
Power Description
Input Voltage 12 V DC
Physical Characteristics
Form Factor Pole-mountable
Height 6.1"
Width 12.3"
Depth 8.6"
Weight (Approximate) 17.30 lb
Miscellaneous
Certifications & Standards
  • IP67
  • NEMA Type 4X
  • Class 1, Div 2/Zone 2
  • CSA: Class I, Division 2, Groups A, B, C and D
  • ATEX: Class I, Zone 2; Ex nA II, T5

IEEE Standards:

  • 802.11b
  • 802.11g
  • 802.11n
  • 802.11a
  • 802.15.4

Safety:

  • UL 60950, 2nd Edition
  • CAN/CSA-C22.2 No. 60950, 2nd Edition
  • IEC 60950, 2nd Edition
  • EN 60950, 2nd Edition

Immunity:

  • ANSI/IEEE C62.41
  • EN61000-4-5 Level 4 AC Surge Immunity
  • EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity
  • EN61000-4-3 Level 4 EMC Field Immunity
  • EN61000-4-2 Level 4 ESD Immunity
  • EN60950 Overvoltage Category IV

Radio Approvals:

  • FCC Part 15.247, 15.407
  • FCC Bulletin OET-65C
  • RSS-210
  • RSS-102
  • AS/NZS 4268.2003
  • EN 300 328
  • EN 301 893

EMI and Susceptibility:

  • FCC part 15.107, 15.109
  • ICES-003
  • EN 301 489-1, -17
Warranty
Limited Warranty 1 Year
