ASUS
ASUS ROG STRIX B760-A GAMING WIFI INTEL B760 14TH, 13TH, AND 12TH GEN) LGA 170
Mfg Part Number: ROG STRIX B760-A GAMING WIFI , Item #: 4833956
, PO and Wire.

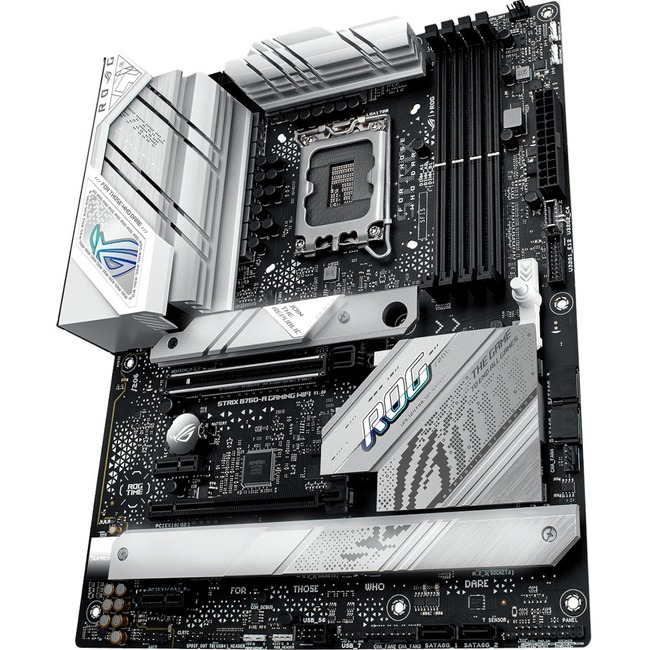

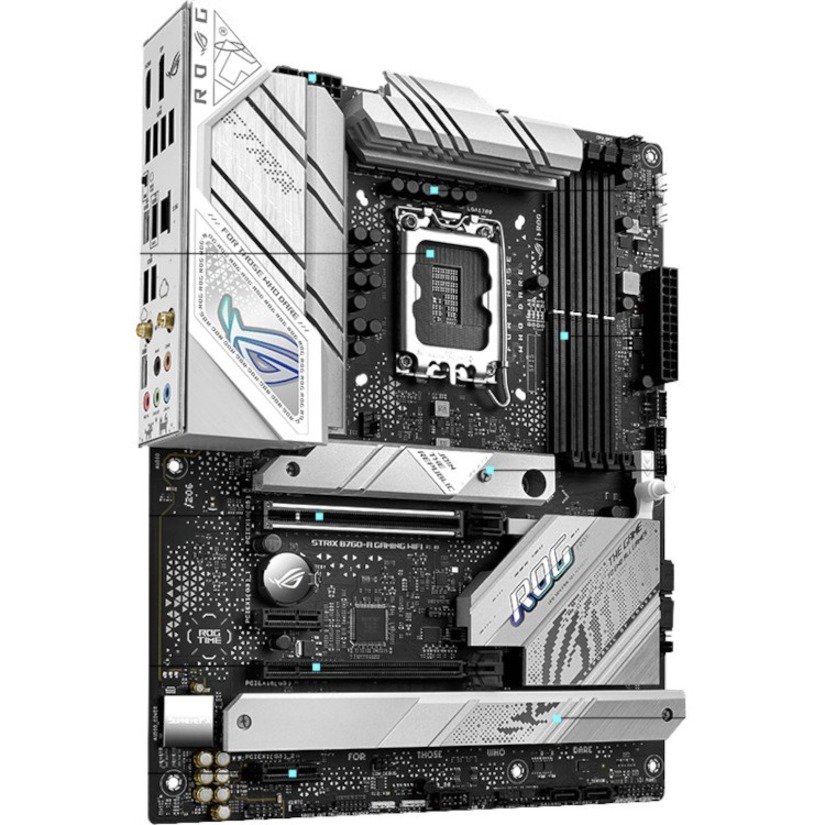

Just like its formidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.
DIY-FRIENDLY FEATURES
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
ALL-ROUND PERFORMANCE
The neat aesthetics of the Strix B760-A were no distraction when crafting this motherboard's power delivery and thermal arrays. You'll get a fully fledged gaming experience and then some with this beast

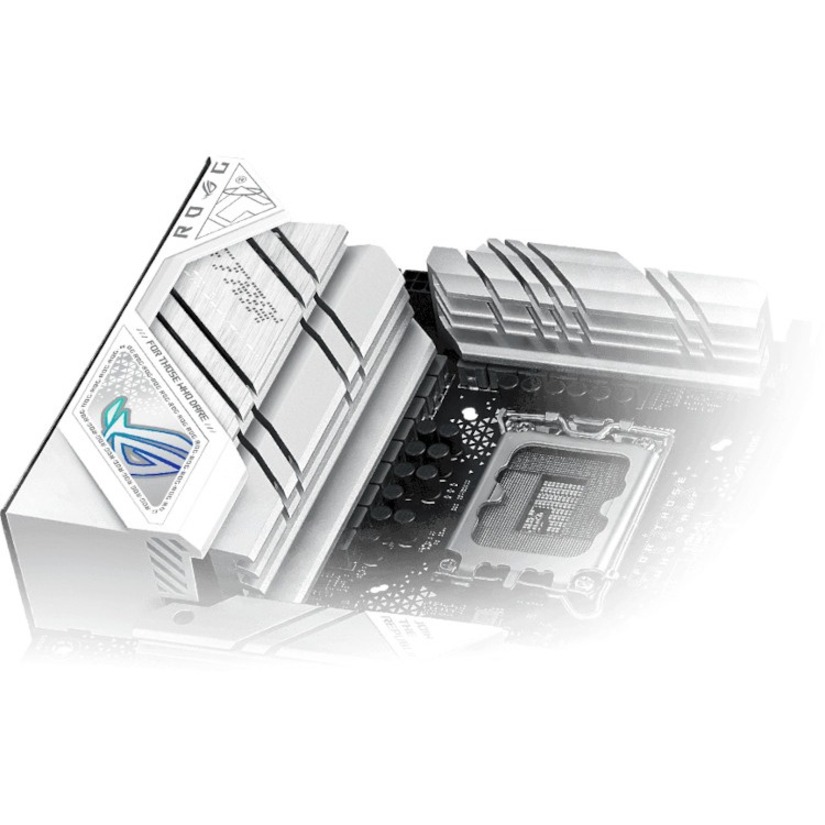

POWER ARCHITECTURE
12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

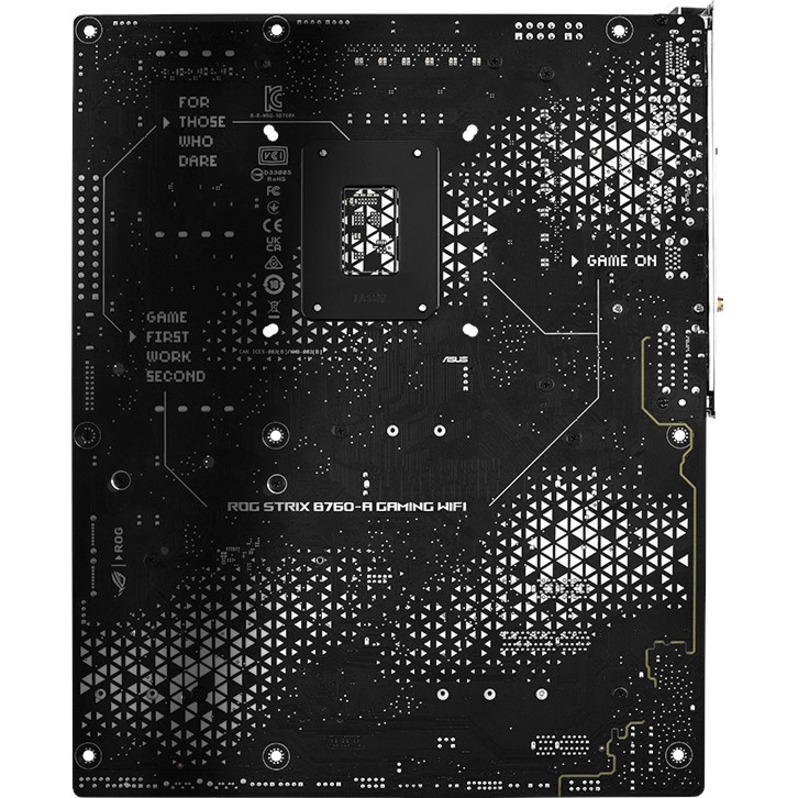

SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
LEADING CONNECTIVITY

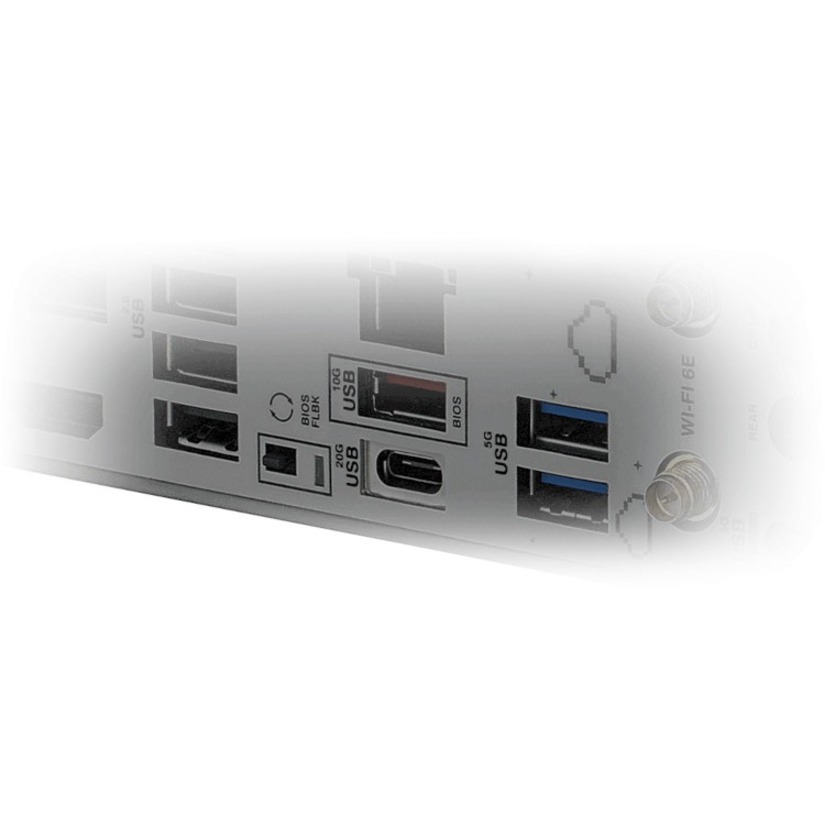

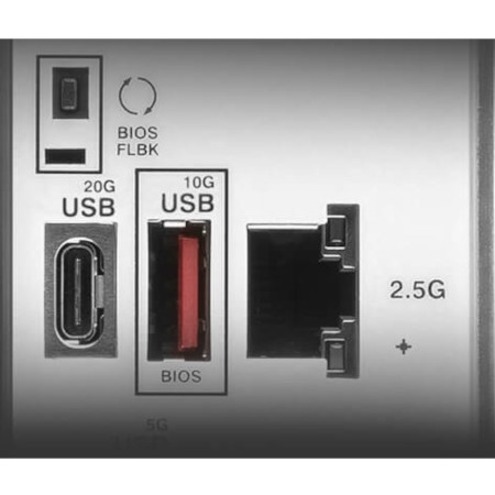

The Strix B760-A is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion
The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG STRIX B760-A GAMING WIFI |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus ROG |
| Product Line | Strix |
| Product Model | STRIX B760-A GAMING WIFI |
| Product Name | STRIX B760-A GAMING WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 13th Gen |
| Processor Generation Supported | 12th Gen |
| Processor Supported | Pentium Gold |
| Processor Supported | Celeron |
| Processor Supported | Core |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 5600 MHz |
| Memory Speed Supported | 6400 MHz |
| Memory Speed Supported | 7800 MHz |
| Memory Speed Supported | 6600 MHz |
| Memory Speed Supported | 6000 MHz |
| Memory Speed Supported | 5800 MHz |
| Memory Speed Supported | 7600 MHz |
| Memory Speed Supported | 5000 MHz |
| Memory Speed Supported | 7200 MHz |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 7400 MHz |
| Memory Speed Supported | 7000 MHz |
| Memory Speed Supported | 6800 MHz |
| Memory Speed Supported | 5200 MHz |
| Memory Speed Supported | 6200 MHz |
| Memory Speed Supported | 5400 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 3.0 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 9 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 3 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
