KIOXIA
Kioxia SSD KPM7XVUG3T20 3.2TB 2.5 SAS PM7-V SIE 3 DWPD Bare
Mfg Part Number: KPM7XVUG3T20 , Item #: 4832917

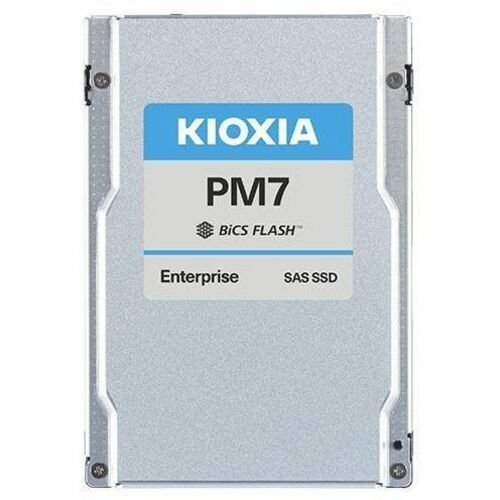

Image may not reflect the actual item.
Price: $935.54
+ Free Shipping
Quantity:
In Stock: 25
Last Updated: Jul 05, 2025
No Sales Tax except these states
, PO and Wire.
Enterprise SAS Mixed Use SSD
KIOXIA PM7-V Series 24G SAS Enterprise SSD is optimized for mixed use applications, including relational database, streaming media, data warehousing and web services. The series is designed to deliver balanced levels of performance, reliability, capacity and endurance for mixed use and read intensive environments.
Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-V offers 3 DWPD (Drive Writes Per Day) with capacities up to 12.8 TB.
Key Features
- 24G SAS interface with single/dual-port support
- Capacities from 1.6 TB to 12.8 TB
- Up to 720K random read IOPS (4 KiB) in dual-port mode
- 2.5-inch form factor, 15 mm thickness
- 3 DWPD with 100 % Random Write Workload
- Power Loss Protection and End-to-End Data Protection, including T10 DIF
- Security options: SIE, SED, FIPS SED
- 5-year limited warranty
Key Applications
- Web servers
- Data warehousing
- Streaming media
Main Specification
| General Information | |
| Manufacturer | Toshiba |
| Manufacturer Part Number | KPM7XVUG3T20 |
| Manufacturer Website Address | http://www.toshiba.com |
| Brand Name | KIOXIA |
| Product Series | PM7-V |
| Product Model | KPM7XVUG3T20 |
| Product Name | Enterprise SAS Mixed Use SSD |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 3.13 TB |
| Drive Performance | |
| Random 4KB Read | 720000IOPS |
| Random 4KB Write | 340000IOPS |
| Endurance (DWPD) | 3 |
| Endurance Type | Mixed Use |
| Maximum Sequential Read | 4.10 GB/s |
| Maximum Sequential Write | 3.56 GB/s |
| Interfaces/Ports | |
| Drive Interface | SAS |
| Drive Interface Standard | 24Gb/s SAS |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Height | 0.6" |
| Width | 2.8" |
| Length | 4" |
| Weight (Approximate) | 4.59 oz |
| Miscellaneous | |
| Device Supported | Workstation |
| Device Supported | Storage System |
| Device Supported | Server |
| Warranty | |
| Limited Warranty | 5 Year |
