TAKE THE ESSENTIALS
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.
The Ultimate Platform for Gamers and CreatorsPowered by GeForce RTX 40 Series and DLSS 3
- New Streaming Multiprocessors
Up to 2x performance and power efficiency
- Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3
vs. brute-force rendering
- Third-Gen RT Cores
Up to 2x ray tracing performance
-
Cutting-Edge GPUs
NVIDIA Ada Lovelace architecture
Realistic and Immersive Graphics
Dedicated Ray Tracing Cores
AI-Accelerated Performance
NVIDIA DLSS 3
Game-Winning Responsiveness
NVIDIA Reflex low-latency platform
Built for Live Streaming
NVIDIA Encoder
AI-Enhanced Voice and Video
NVIDIA Broadcast app
Fast-Track Your Creativity
NVIDIA Studio
Performance and Reliability
Game Ready and Studio Driver
REVOLUTIONARY
TRIPLE-FAN THERMAL Three fans on a huge heatsink ensures a cool and quiet experience.
COPPER BASEPLATE
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it's needed for maximum cooling.
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system.
EMPHASIZING ENDURANCE | DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
2 Oz Copper
A thickened copper layer inside the PCB increases conductivity which improves heat dissipation and reliability.
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Sheet-Metal Anti-Bending
A sheet-metal anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.
Support Bracket
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| General Information | |
| Manufacturer | MSI |
| Manufacturer Part Number | G4070V3X12C |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | VENTUS 3X |

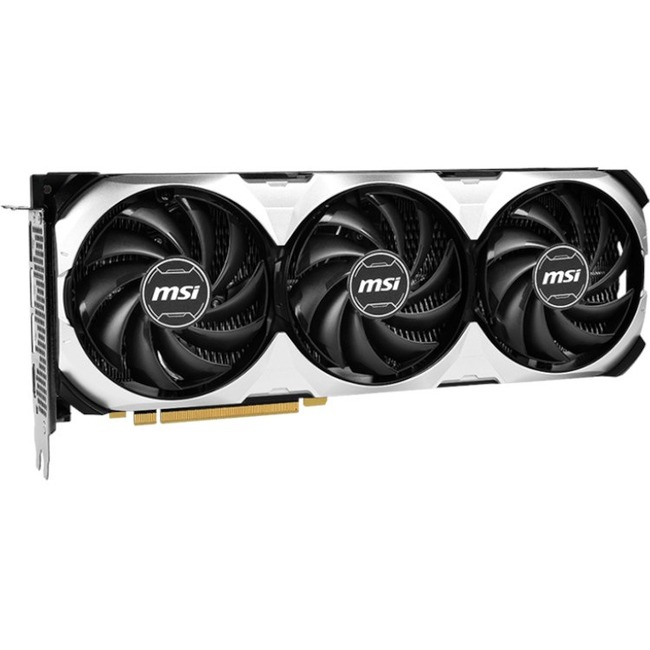

| Product Model | GeForce RTX 4070 VENTUS 3X 12G OC |
| Product Name | GeForce RTX 4070 VENTUS 3X 12G OC Graphic Card |
| Product Type | Graphic Card |
| Technical Information | |
| API Supported | OpenGL 4.6 |
| API Supported | DirectX 12 Ultimate |
| Number of Monitors Supported | 4 |
| Maximum Digital Display Resolution | 7680 x 4320 |
| CUDA Cores | 7680 |
| Processor & Chipset | |
| Chipset Manufacturer | NVIDIA |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| Chipset Model | RTX 4070 |
| GPU Boost Clock | 2.66 GHz |
| Memory | |
| Standard Memory | 12 GB |
| Memory Technology | GDDR6X |
| Bus Width | 192 bit |
| Interfaces/Ports | |
| Host Interface | PCI Express 4.0 |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Power Description | |
| Power Supply Wattage | 700 W |
| Power Connector | 1x 16-pin |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Cooler Type | Fan Cooler |
| Height | 2" |
| Width | 4.8" |
| Length | 12.1" |
| Weight (Approximate) | 2.54 lb |
| Miscellaneous | |
| Platform Supported | PC |
