DATALOGIC

QD2590-WHK1 DATALOGIC QD2500, QUICKSCAN, 2D MP IMAGER, USB/RS232/WEDGE, MULTI-INTERFACE, WHI

Mfg Part Number:  QD2590-WHK1
Image may not reflect the actual item.
Price: $217.16 + Free Shipping
Quantity:
In Stock: 1
Last Updated: Sep 13, 2025
No Sales Tax except these states
, PO and Wire.

IMAGING TECHNOLOGY

The market trend towards 2D barcodes has clearly spread across the whole data capture industry. This is particularly true at Retailers' where POS check-out activities face an increased need for 2D scanning and at the same time rely on reading mobile phone displays and loyalty cards.

THE MOST PROMPT RESPONSE AT THE POS CHECK-OUT

The QuickScan 2500 2D imager is your trusted companion at the POS check-out. It knows very well the importance of prompt readings, whatever the barcode, regardless of whether it's hard-to-read, poorly printed or damaged, and it easily scans mobile devices and through plexiglass barriers, all at an incredibly affordable price.

EXTREME PRECISION CONVEYED

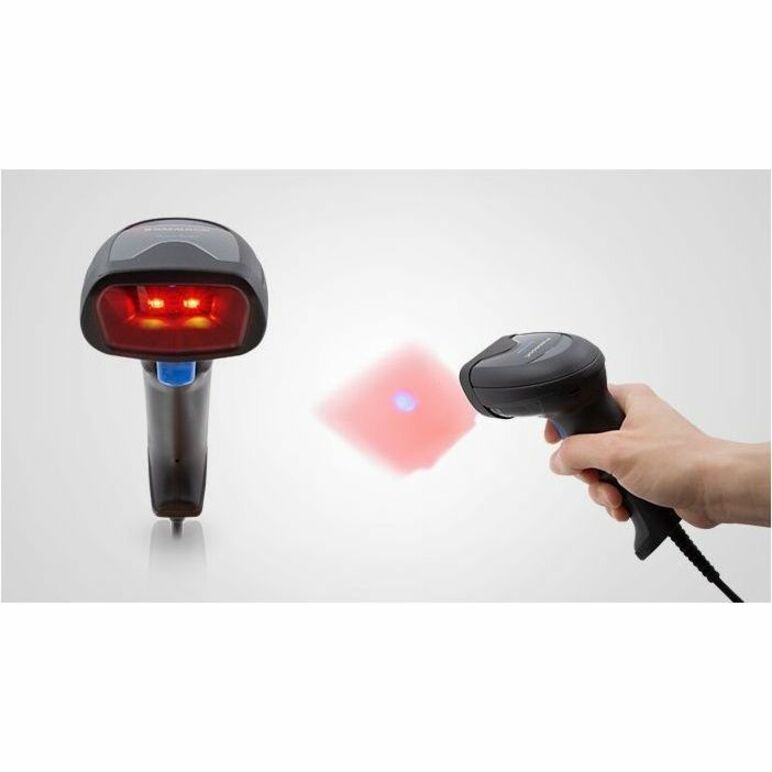

A sense of extreme precision is conveyed to the operator at any time, facilitating their job by clearly showing where the scanner is pointing. From the intuitive blue dot of the QW model, you can even get all the extra-precision you need with the outstanding aimer of the QD, QM and QBT models, made of two blue sharply-defined triangles. Datalogic's 'Green Spot' technology then confirms the good read, perfectly centered on the barcode and between the two triangles, backed up by a powerful beeper that can be adjusted to your preferred level of sound.

GO CORDLESS, AT YOUR CONVENIENCE

Featuring narrow band radio communications with Datalogic's STAR Cordless System (QM models) or Bluetooth wireless technology (QBT models), the QuickScan 2500 provides the broadest choice, to best manage delivery even in times of shortage of Bluetooth micro-chips.

STAR radio ensures interference-free communication with low sensitivity to obstacles, avoiding delays and increasing productivity, particularly in busy environments with Bluetooth and Wi-Fi.

Featuring the distinctive design and family feeling of the Datalogic general purpose handheld scanners, the QuickScan 2500 series offers a variety of stands and accessories to best fit in any in-store environment.

Main Specification
General Information
Manufacturer Datalogic S.p.A
Manufacturer Part Number QD2590-WHK1
Manufacturer Website Address http://www.datalogic.com
Brand Name Datalogic
Product Line QuickScan
Product Series 2500
Product Model QD-2500
Product Name QuickScan QD-2500 Barcode Scanner Kit
Product Type Barcode Scanner Kit
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Scanning Capability 2D
Barcode Symbology Supported

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

2D:

  • Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code

Postal Codes:

  • Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites.

Digital Watermarking:

  • Digimarc Barcodes (QD2500, QM2500, QBT2500 only)
Light Source LED
Image Sensor Type Imager
Scanning Distance 20.10"
Features Beep
Features Grayscale Image Capture
Features Notification LED
Cable Type Included USB
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Motion Tolerance 30 in/s
Image Formats TIFF
Image Formats JPEG
Image Formats BMP
Maximum Ambient Light 110000 lux
Drop Specification
  • Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 10 mil
Minimum Element Resolution (DataMatrix) 10 mil
Minimum Element Resolution (PDF417) 6.7 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color Red
Air Electrostatic Discharge (+/-) 16kV
Network & Communication
Radio Frequency Yes
Interfaces/Ports
Host Interface Multi-interface
Host Interface Serial
Host Interface Keyboard Wedge
Host Interface USB
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3250 mAh
Maximum Battery Recharge Time 4 Hour
Environmental Conditions
Operating Temperature 32°F (0°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Color Family White
Product Color White
Durability Dust Resistant
Durability Water Resistant
Height 5"
Width 5.8"
Depth 2.7"
Weight (Approximate) 5.11 oz
Miscellaneous
Ingress Protection (IP) Rating IP52
Application/Usage Retail
Application/Usage Self-checkout
Application/Usage Government
Application/Usage Healthcare
Application/Usage Commercial Service
Application/Usage Hospitality
Application/Usage Ticketing
Application/Usage Manufacturing
Application/Usage Light/Clean Manufacturing
Application/Usage Pharmacy
Application/Usage Transportation

Stands & Equipment Cabinets
