MICROCHIP TECHNOLOGY

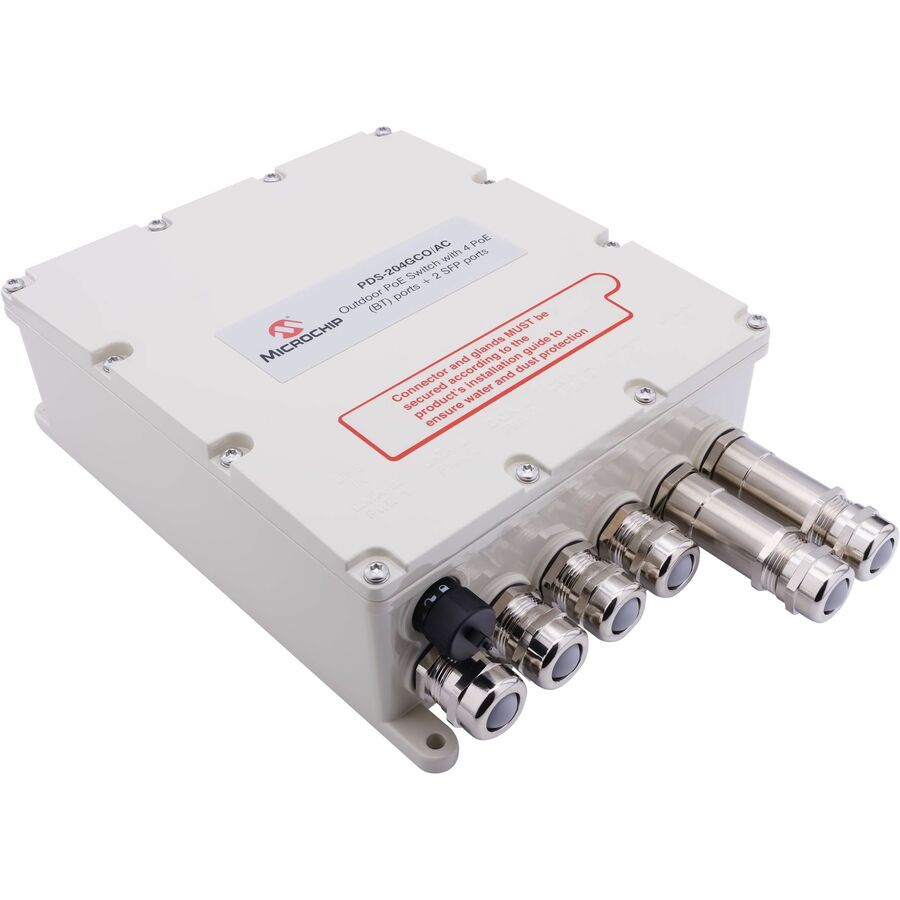

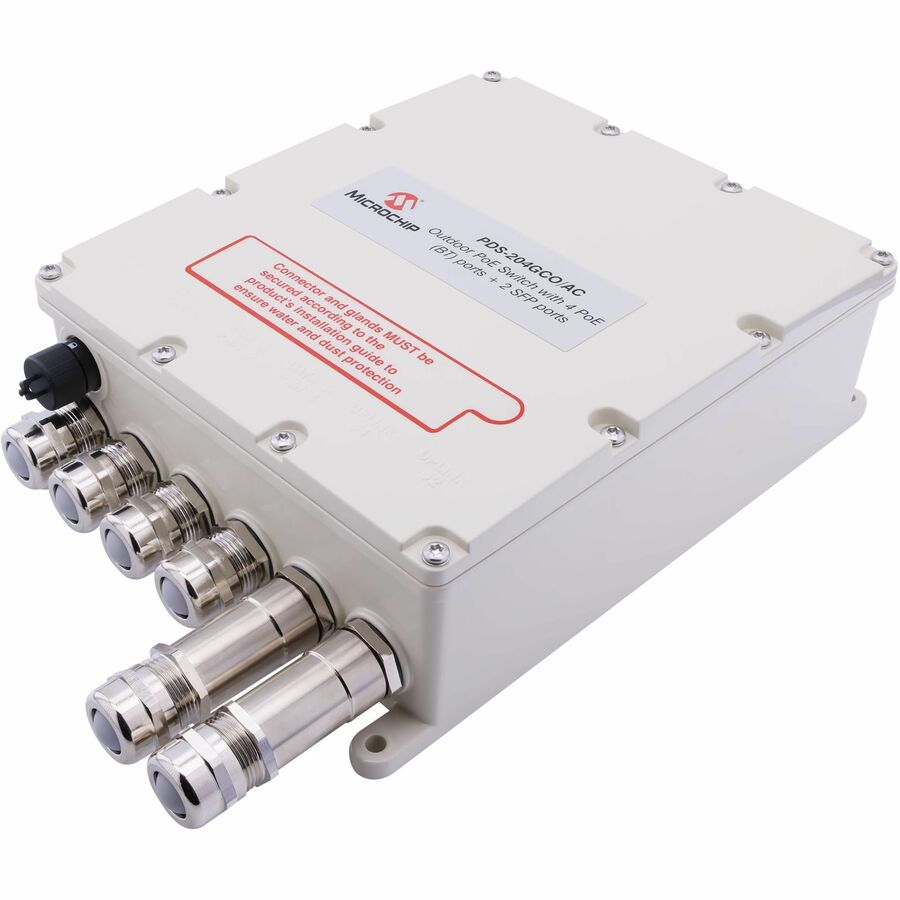

MICROCHIP TECHNOLOGY PDS-204GCO/AC Microchip Switch PDS-204GCO AC Outdoor PoE Switch 4xPoE(BT)+2xSFP uplink port
Mfg Part Number: PDS-204GCO/AC , Item #: 4820500
Image may not reflect the actual item.
Price: $3,088.46
Quantity:
In Stock: 30
Last Updated: Aug 09, 2025
No Sales Tax except these states
, PO and Wire.
Microchip's PDS-204GCO is a next-generation outdoor Power over Ethernet (PoE) switch for smart cities. It allows Wi-Fi® access points, security network cameras and many other IoT devices to receive power and data over standard Ethernet cables, leaving network infrastructure completely unaltered.
With an IP67 rating, PDS-204GCO complies with the highest outdoor environment standards and enables easy installation without the need to open the unit.
With an IP67 rating, PDS-204GCO complies with the highest outdoor environment standards and enables easy installation without the need to open the unit.
The PDS-204GCO includes four PoE Giga ports with a total output power of 150W. It supports the IEEE® 802.3bt Type 4 standard and contains two fiber links that support 1G or 2.5G speeds each. It supports advanced network features to meet the highest cyber security threats at all network levels and enables multiple network topologies such as network daisy chain or ring for easy installation and network redundancy.
It also offers surge protection for both the AC and the PoE ports, ensuring the indoor equipment is protected from outdoor surges.
Main Specification
| General Information | |
| Manufacturer | Microchip Technology Inc. |
| Manufacturer Part Number | PDS-204GCO/AC |
| Manufacturer Website Address | http://www.microchip.com |
| Brand Name | Microchip |
| Product Model | PDS-204GCO |
| Product Name | PDS-204GCO Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 4 |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 2 x 2.5 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 2.5GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.3bt |
| Networking Standards | IEEE 802.1ad |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 150 W |
| Power Source | AC |
| Physical Characteristics | |
| Form Factor | Pole Mount |
| Weight (Approximate) | 6.18 lb |
| Miscellaneous | |
| Application/Usage | Security Camera |
| Application/Usage | Wireless Access Point |
