CISCO

CISCO UCSX-210C-M7-U UCS X210c M7 Compute Node 2S w/o CPU, Me

Mfg Part Number:  UCSX-210C-M7-U
Image may not reflect the actual item.
Price: $5,089.43 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Aug 04, 2025
No Sales Tax except these states
, PO and Wire.

The Cisco UCS X-Series Modular System simplifies your data center, adapting to the unpredictable needs of modern applications while also providing for traditional scale-out and enterprise workloads. It reduces the number of server types to maintain, helping to improve operational efficiency and agility as it helps reduce complexity. Powered by the Cisco Intersight™ cloud operations platform, it shifts your thinking from administrative details to business outcomes with hybrid cloud infrastructure that is assembled from the cloud, shaped to your workloads, and continuously optimized.

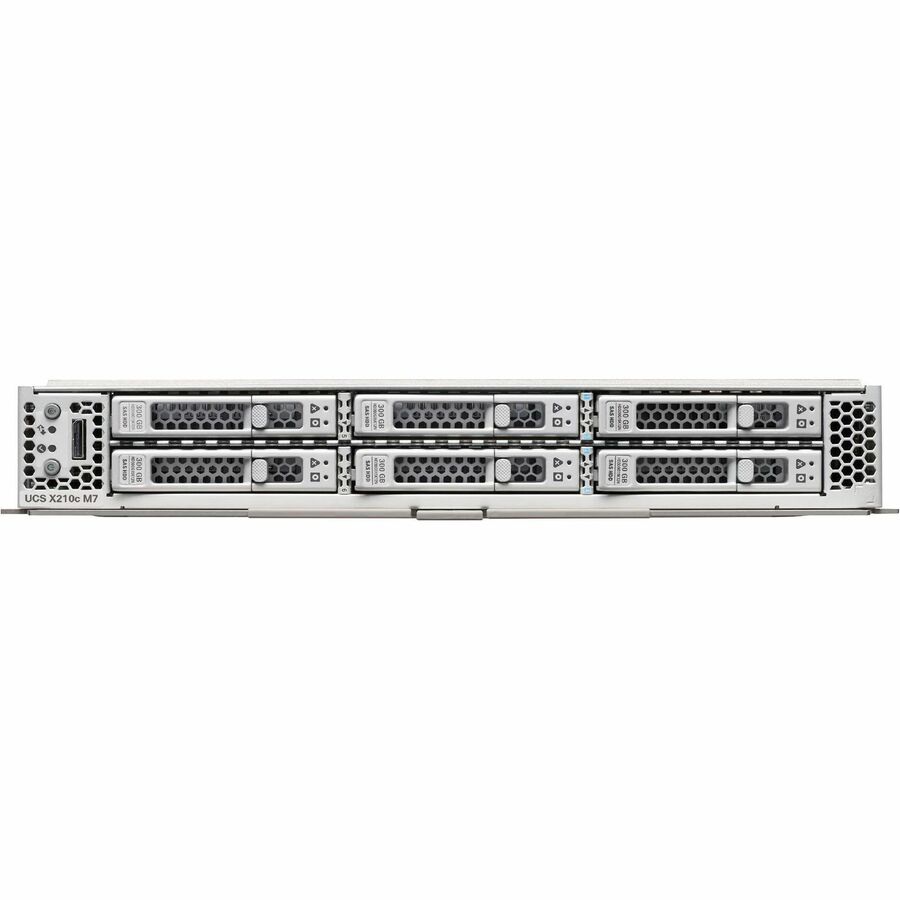

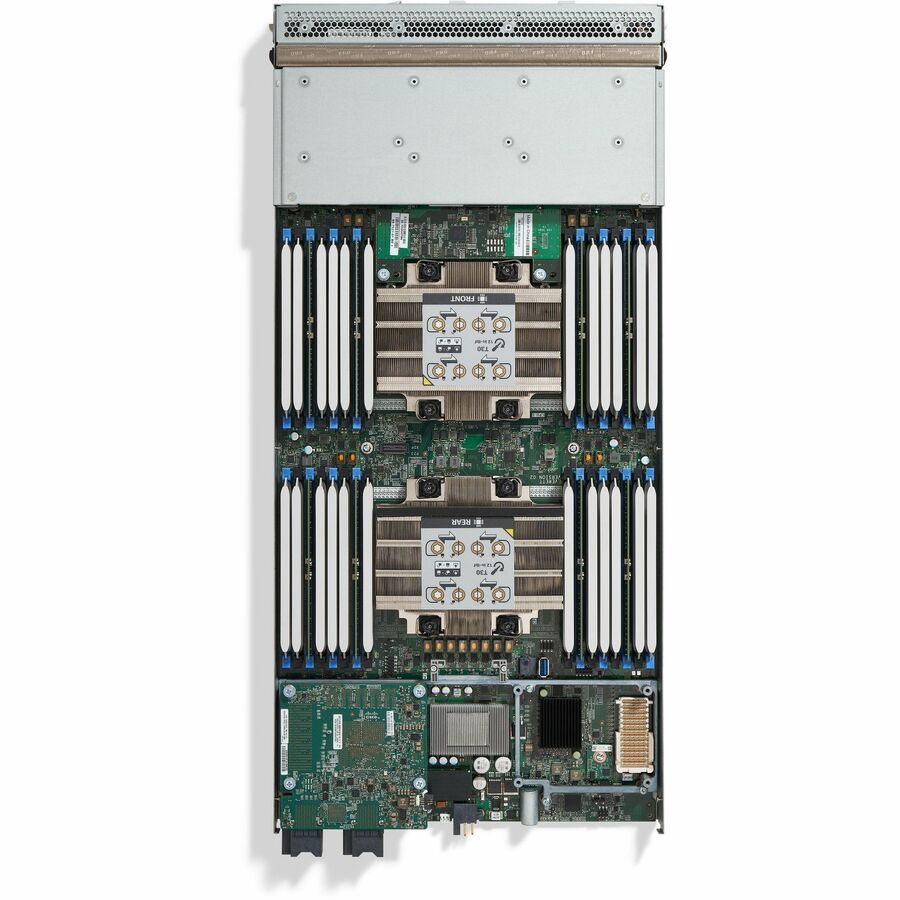

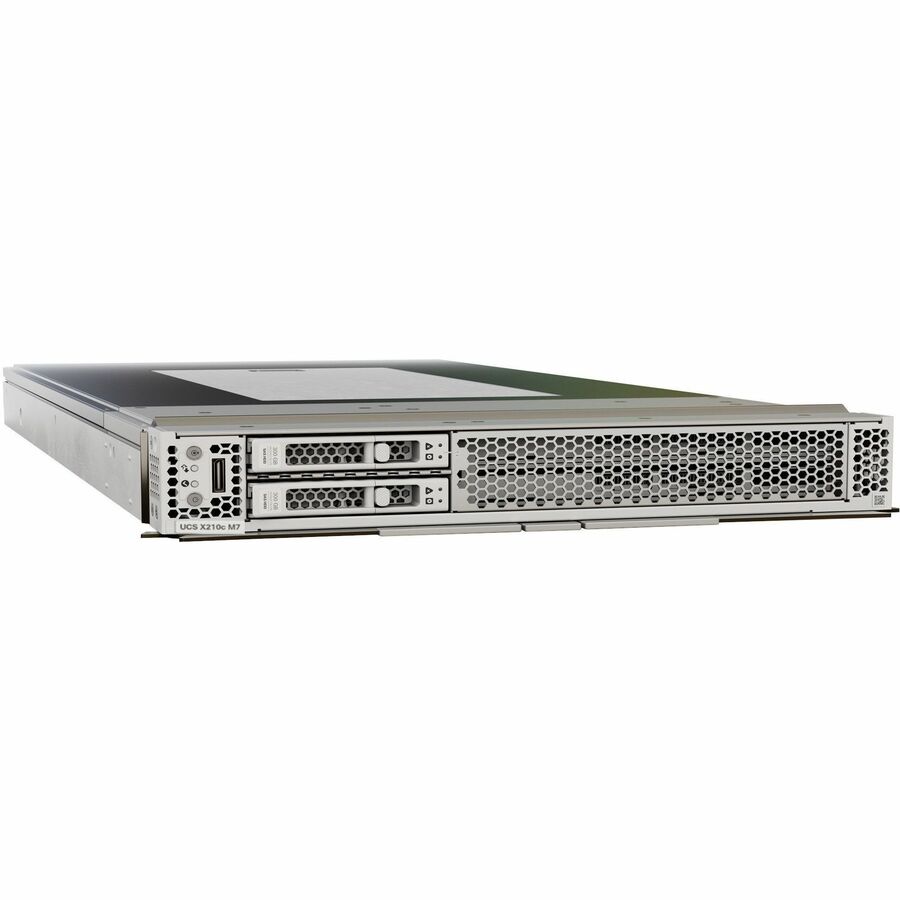

The Cisco UCS X210c M7 Compute Node is the computing device to integrate into the Cisco UCS X-Series Modular System. Up to eight compute nodes can reside in the 7-Rack-Unit (7RU) Cisco UCS X9508 Chassis, offering one of the highest densities of compute, IO, and storage per rack unit in the industry.

Main Specification
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number UCSX-210C-M7-U
Manufacturer Website Address http://www.cisco.com
Brand Name Cisco
Product Series X210c M7
Product Name UCS X210c M7 Barebone System
Product Type Barebone System
Processor
Number of Processors Supported 2
Processor Supported Xeon Gold
Processor Supported Xeon Silver
Processor Supported Xeon Platinum
Processor Supported Xeon Bronze
64-bit Processing Yes
Chipset
Chipset Manufacturer Intel
Chipset Model C741
Memory
Maximum Memory Supported 8 TB
Memory Technology DDR5 SDRAM
Memory Standard DDR5-5600/PC5-44800
Total Number of Memory Slots 32
Intel Optane Memory Ready Yes
Storage
Supported Storage Drive Interfaces SAS
Supported Storage Drive Interfaces Serial ATA
Controllers
Controller Type Serial ATA
Controller Type Serial Attached SCSI (SAS)
Controller Type NVMe
RAID Supported Yes
Display & Graphics
Graphics Controller Model G200e
Graphics Memory Capacity 16 MB
Network & Communication
Ethernet Technology Ethernet
I/O Expansions
Number of Total Expansion Bays 6
Number of 2.5" Bays 6
Number of M.2 Interfaces 2
Operating System
Operating System Supported SuSE Linux Enterprise Server
Operating System Supported Windows Server 2022 Standard
Operating System Supported Windows Server 2022 Datacenter
Operating System Supported Windows Server 2019 Datacenter
Operating System Supported Windows Server 2019 Standard
Operating System Supported Red Hat Enterprise Linux
Physical Characteristics
Height 1.8"
Width 11.3"
Depth 23.7"
Weight (Approximate) 25.11 lb
