80 PLUS® GOLD CERTIFIED | Very high operating efficiency

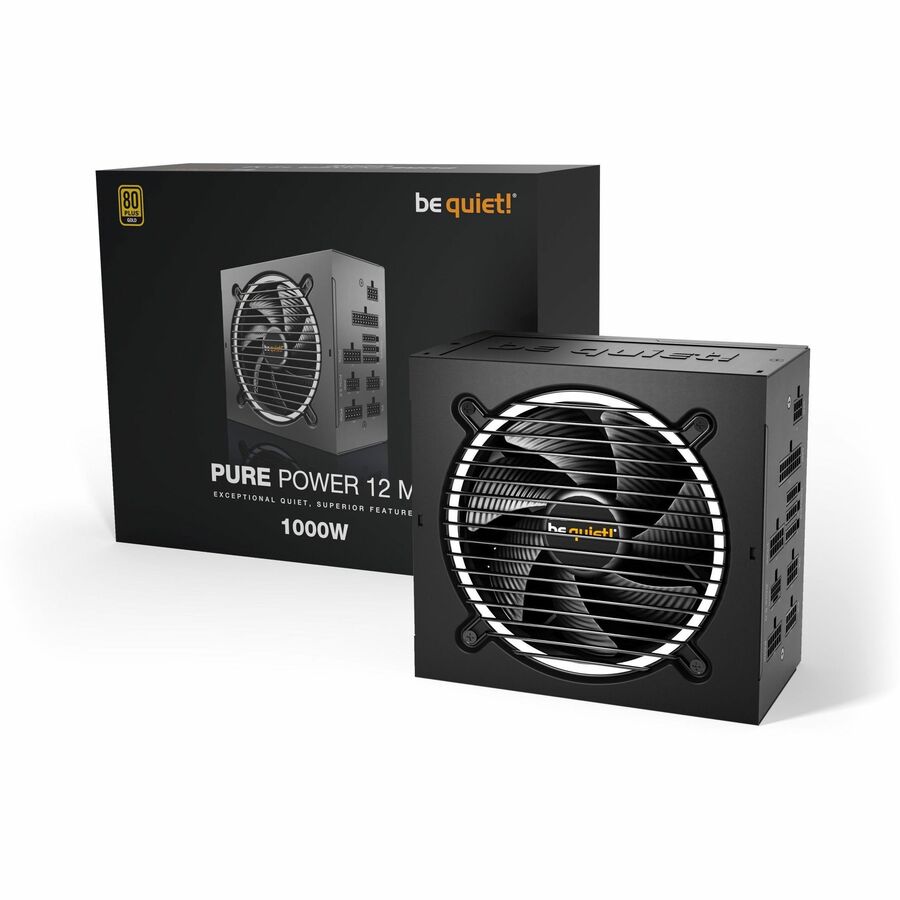

Pure Power 12 M 1000W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.1%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 1000W is always the correct choice for quiet systems and gaming PCs!
FUTURE-PROOF YOUR SYSTEM | Fulfills all ATX 3.1 specifications
Pure Power 12 M 1000W is an ATX 3.1 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.1 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER | For massive transient loads
Pure Power 12 M offers 1000W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
UNPRECEDENTED SILENT OPERATION | Achieved with a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality.
HIGH-CLASS TECHNOLOGIES | Rock-solid stability
With its LLC topology Pure Power 12 M 1000W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.
MODULAR CABLES | Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 1000W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
General Information | |
Manufacturer | Listan GmbH & Co. |
Manufacturer Part Number | BN506 |
Manufacturer Website Address | http://www.listan.de |
Brand Name | be quiet! |
Product Line | Pure Power 12 M |
Product Model | Pure Power 12 M 1000W |
Product Name | Pure Power 12 M 1000W Power Supply |
Product Type | Power Supply |
Technical Information | |
Specification Compliance | ATX 3.1 |
Specification Compliance | EPS12V v2.92 |
Specification Compliance | ATX 3.0 |
Efficiency | 93.1% |
Number of Fans | 1 |
Fan Diameter | 120 mm |
Protection Type | Over Voltage |
Protection Type | Short Circuit |
Protection Type | Surge |
Protection Type | Inrush Current |
Protection Type | Under Voltage |
Protection Type | Over Power |
Protection Type | Over Temperature |
Protection Type | Over Current |
Modular | Yes |
Reliability | |
MTBF | 100000 Hour |
Power Description | |
Number of +12V Rails | 2 |
Input Voltage | 230 V AC |
Input Voltage | 120 V AC |
Output Voltage | -12 V DC |
Output Voltage | 12 V DC |
Output Voltage | 5 V SB |
Output Voltage | 5 V DC |
Output Voltage | 3.3 V DC |
Output Voltage Detail | 3.3 V DC @ 22 A |
Output Voltage Detail | 12 V DC @ 46 A |
Output Voltage Detail | 12 V DC @ 42 A |
Output Voltage Detail | 5 V DC @ 22 A |
Output Voltage Detail | -12 V DC @ 0.3 A |
Output Voltage Detail | 5 V SB @ 3 A |
Output Power | 1000 W |
Input Frequency | 60 Hz |
Interfaces/Ports | |
Number of SATA Power Connectors | 6 |
PCI Express Connector | Yes |
Number of (6+2 pin) PCI Express Power Connectors | 4 |
Number of (4+4 pin) CPU Power Connectors | 1 |
Environmental Conditions | |
Maximum Operating Temperature | 104°F (40°C) |
Physical Characteristics | |
Color Family | Black |
Product Color | Black |
Form Factor | Internal |
Height | 3.4" |
Width | 5.9" |
Weight (Approximate) | 4.21 lb |
Miscellaneous | |
Package Contents |
|
Certifications & Standards |
|
Energy Star | Yes |
Energy Efficiency Certification | ENERGY STAR 8.0 |
Energy Efficiency Certification | 80 Plus Gold |
Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Warranty | |
Limited Warranty | 10 Year |
