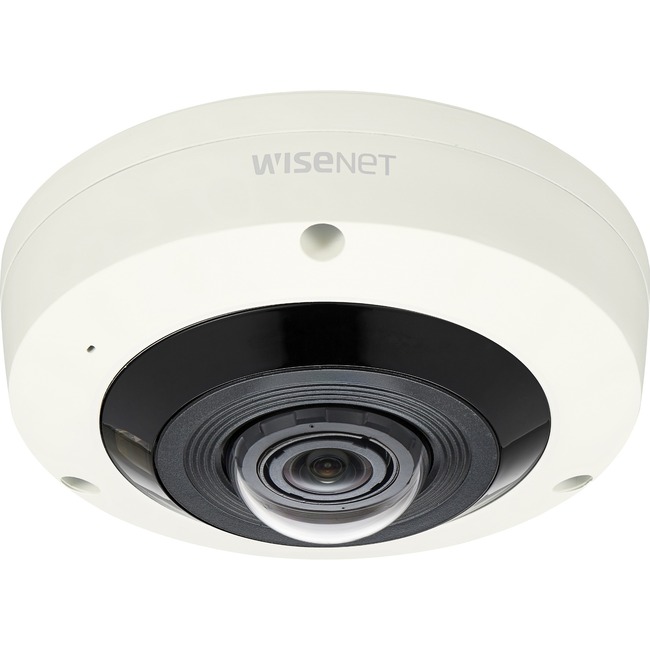

HANWHA TECHWIN XNF-8010RV/KME X-Series Outdoor IR Fisheye - TAA Compliant Wisenet X powered by Wisenet 5 network outdoor vandal fisheye 6MP CMOS sensor 2048x2048 @ 30fps 1.6mm fixed lens (192 ) triple codec H.265/H.264/MJPEG with WiseStream II technology 120dB WDR...

Mfg Part Number:  XNF-8010RV/KME
Image may not reflect the actual item.
Price: $817.80 + Free Shipping
Quantity:
More to Come
Last Updated: Jun 16, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
General Information
Manufacturer Hanwha Group
Manufacturer Part Number XNF8010RVKME
Manufacturer Website Address http://www.hanwha.com
Brand Name Wisenet
Product Series X
Product Model XNF-8010RV
Product Name X series 6 MP sensor 360° Outdoor Fisheye
Product Type Network Camera
Technical Information
HD Recording Yes
Night Vision Yes
Night Vision Distance 49.21 ft
Night Vision Type Infrared
Display & Graphics
Image Sensor Type CMOS
Image Sensor Size 1/1.8"
Color Supported Color
Field of View H: 192° / V: 192° / D: 192°
Effective Camera Resolution 6 Megapixel
Video
Video Formats H.264H
Video Formats H.264
Video Formats H.264B
Video Formats MJPEG
Video Formats H.264M
Video Formats H.265
Maximum Video Resolution 2048 x 2048
Maximum Frame Rate 30 fps
Analog Video Signal Format CVBS
Lens
Lens Type Fixed
Maximum Focal Length 1.60 mm
Lens Included Yes
Maximum Aperture f/1.6
Exposure
Shortest Shutter Speed 1/12000 Second
Longest Shutter Speed 2 Second
Network & Communication
Connectivity Technology Wired
Ethernet Technology Fast Ethernet
Protocols SNMPv1/v2c/v3 (MIB2)
Protocols NTP
Protocols IPv6
Protocols UPnP
Protocols DNS
Protocols TCP/IP
Protocols RTCP
Protocols HTTP
Protocols FTP
Protocols IGMP
Protocols Bonjour
Protocols ARP
Protocols RTP/TCP
Protocols IPv4
Protocols HTTPS
Protocols SSL/TLS
Protocols DHCP
Protocols SMTP
Protocols ICMP
Protocols SRTP
Protocols RTP/UDP
Protocols DDNS
Protocols PPPoE
Protocols QoS
Protocols RTSP
Protocols UDP/IP
Protocols PIM-SM
Remote Management Yes
Storage
Storage Type Memory Card
Interfaces/Ports
USB Yes
Network (RJ-45) Yes
Power Description
Input Voltage 12 V DC
Power Source Type PoE
Power Source Type DC
Physical Characteristics
Form Factor Fisheye
Color Family White
Product Color Ivory
Diameter 5.7"
Weight (Approximate) 1.73 lb
Environmental Conditions
Minimum Operating Temperature -40°F (-40°C)
Maximum Operating Temperature 131°F (55°C)
Maximum Operating Humidity 90%
Miscellaneous
Features Fog Reduction
Features Back Light Compensation (BLC)
Features Privacy Masking
Features Highlight Compensation (HLC)
Features Digital Noise Reduction
Features Wide Dynamic Range
Features Day/Night
Features Defog
Features Face Detection
Features Vehicle Detection
Features Motion Detection
Features Shock Detection
Features Tamper Detection
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
Ingress Protection Rating IP66
Country of Origin Korea
TAA Compliant Yes
Warranty
Limited Warranty 3 Year
