HANWHA TECHWIN

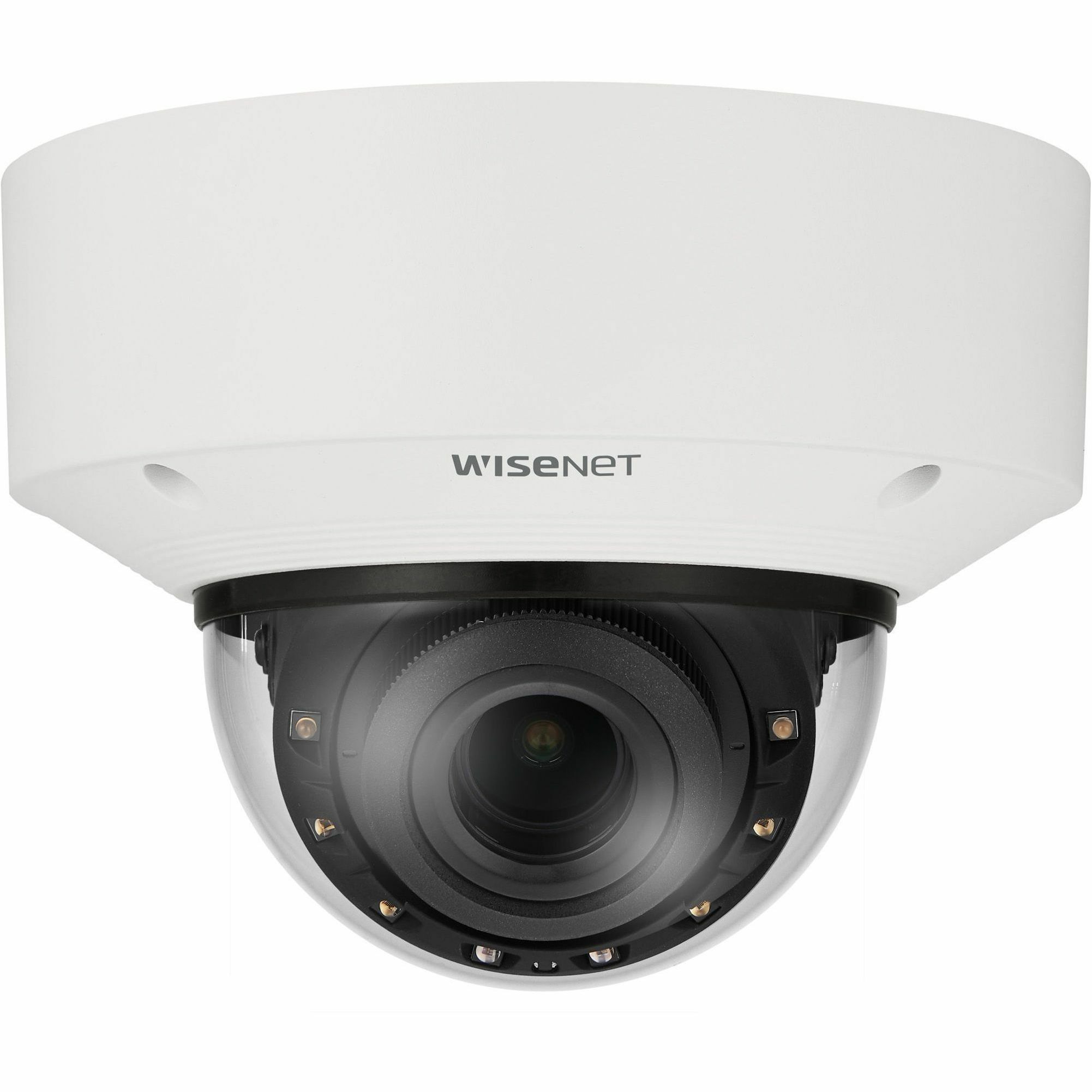

HANWHA TECHWIN XNV-C7083R/KEX 4MP IR Outdoor Vandal Dome AI Camera - TAA Compliant Powered by WN7 Outdoor Network AI IR Vandal Dome Camera 4MP resolution @ 60FPS (WDR off)/30FPS (WDR on) 2.8~10mm(3.6x) (109.7 ~30.4 ) motorized varifocal lens Triple codec (H.265/H.264/MJPEG)

Mfg Part Number:  XNV-C7083R/KEX
Image may not reflect the actual item.
Price: $1,090.01 + Free Shipping
Quantity:
More to Come
Last Updated: Jan 21, 2026
No Sales Tax except these states
, PO and Wire.
Main Specification
General Information
Manufacturer Hanwha Group
Manufacturer Part Number XNVC7083RKEX
Manufacturer Website Address http://www.hanwha.com
Brand Name Hanwha Techwin
Product Series X
Product Model XNV-C7083R
Product Name 4MP IR Outdoor Vandal Dome AI Camera
Product Type Network Camera
Technical Information
HD Recording Yes
Night Vision Yes
Night Vision Distance 131.23 ft
Night Vision Type Infrared
Display & Graphics
Image Sensor Type CMOS
Image Sensor Size 1/2.8"
Color Supported Color
Field of View H: 109.7°(Wide) ~ 30.4°(Tele) V: 60.8°(Wide) ~ 17.8°(Tele) D: 131.3°(Wide) ~ 35.3°(Tele)
Effective Camera Resolution 4 Megapixel
Video
Video Formats H.265M
Video Formats MJPEG
Video Formats H.264H
Video Formats H.265H
Video Formats H.264M
Video Formats H.264
Video Formats H.265
Maximum Video Resolution 2592 x 1520
Maximum Frame Rate 60 fps
Lens
Lens Type Varifocal
Minimum Focal Length 2.80 mm
Maximum Focal Length 10 mm
Lens Included Yes
Minimum Aperture f/3
Maximum Aperture f/1.4
Optical Zoom 3.6x
Exposure
Shortest Shutter Speed 1/12000 Second
Longest Shutter Speed 2 Second
Network & Communication
Connectivity Technology Wired
Ethernet Technology Fast Ethernet
Protocols UDP/IP
Protocols RTSP
Protocols QoS
Protocols IPv4
Protocols RTP/TCP
Protocols ARP
Protocols DNS
Protocols UPnP
Protocols ONVIF
Protocols IPv6
Protocols NTP
Protocols SNMPv1/v2c/v3 (MIB2)
Protocols RTP/UDP
Protocols DDNS
Protocols LLDP
Protocols TCP/IP
Protocols RTCP
Protocols HTTP
Protocols FTP
Protocols IGMP
Protocols Bonjour
Protocols TLS
Protocols VoIP
Protocols P2P
Protocols HTTPS
Protocols SSL/TLS
Protocols DHCP
Protocols SMTP
Protocols ICMP
Protocols SRTP
Remote Management Yes
Storage
Storage Type Memory Card
Interfaces/Ports
USB Yes
Network (RJ-45) Yes
Power Description
Input Voltage 12 V DC
Power Source Type DC
Power Source Type PoE
Physical Characteristics
Mount Type Desk Mount
Mount Type Wall Mount
Form Factor Dome
Durability Vandal Resistant
Color Family White
Product Color White
Diameter 6.3"
Weight (Approximate) 3.20 lb
Environmental Conditions
Minimum Operating Temperature -40°F (-40°C)
Maximum Operating Temperature 131°F (55°C)
Maximum Operating Humidity 95%
Miscellaneous
Features White Balance
Features Defog
Features Day/Night
Features Back Light Compensation (BLC)
Features Wide Dynamic Range
Features Motion Detection
Features Privacy Masking
Features Highlight Compensation (HLC)
Features Audio Detection
Features Digital Noise Reduction
Features Gain Control
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
Ingress Protection Rating IP67
Ingress Protection Rating IP66
Country of Origin Korea
TAA Compliant Yes
Warranty
Limited Warranty 3 Year
