HANWHA TECHWIN

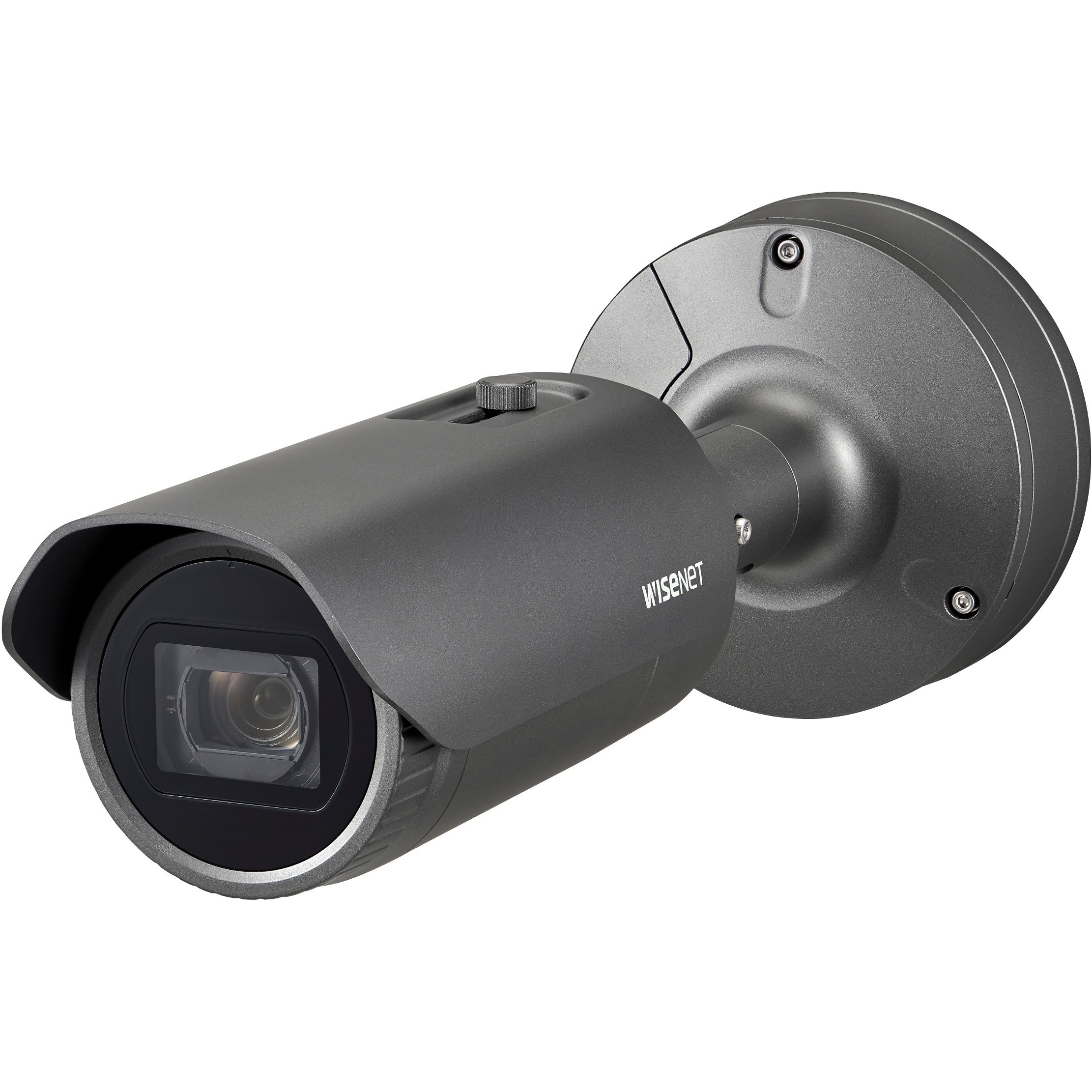

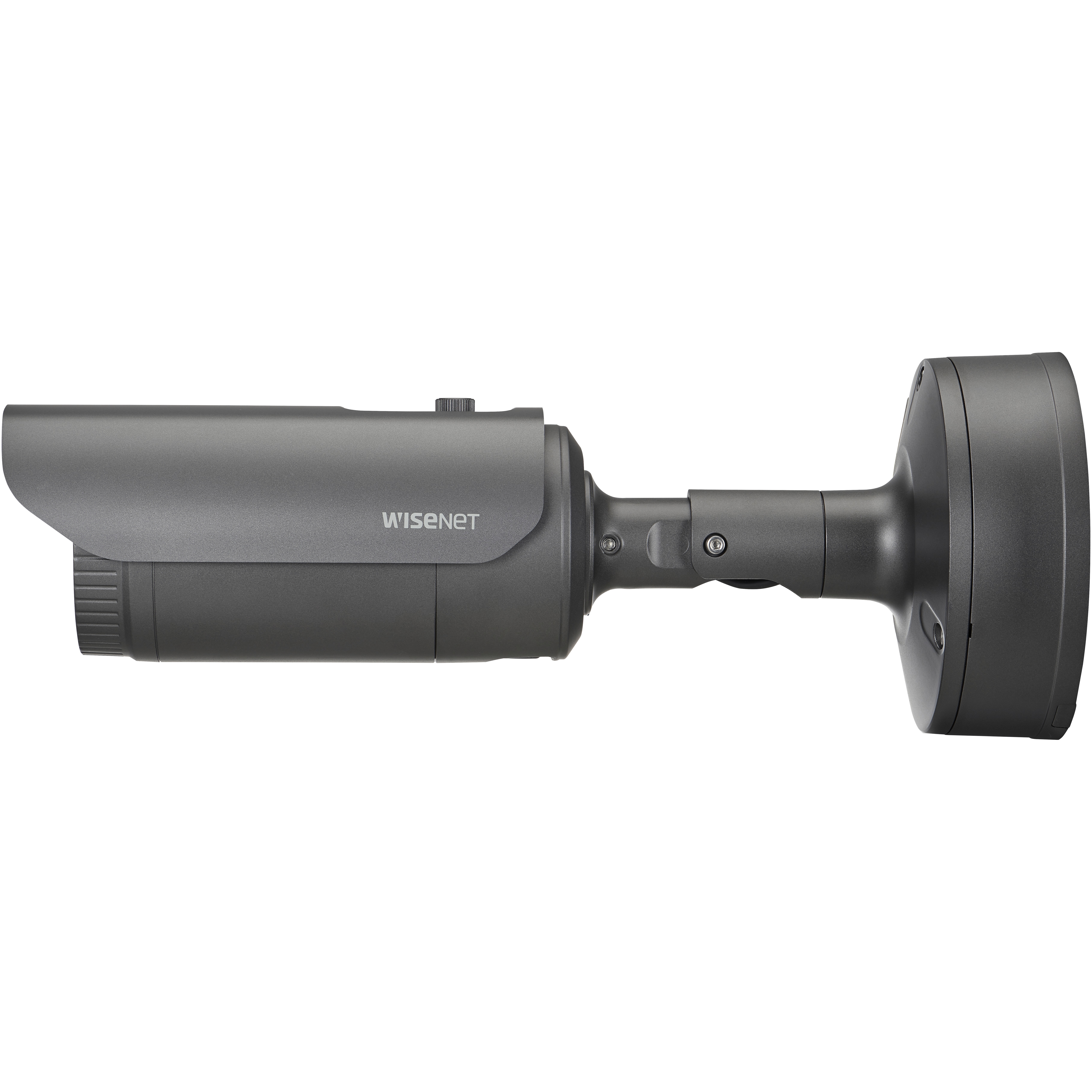

HANWHA TECHWIN XNO-6120R/KME 2M 12X IR Bullet - TAA Compliant Wisenet X powered by Wisenet 5 network IR outdoor bullet camera 2MP Full HD(1080p) @60fps 12X optical zoom lens (5.2mm ~62.4mm) (54.58 ~ 5.30 ) triple codec H.265/H.264/MJPEG with WiseStream II technology 150dB WDR
Mfg Part Number: XNO-6120R/KME , Item #: 4809637
Image may not reflect the actual item.
Price: $1,168.68
+ Free Shipping
Quantity:
More to Come
Last Updated: Nov 18, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNO6120RKME |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNO-6120R |
| Product Name | 2MP Network IR 12X optical zoom bullet camera |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | Full HD |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 229.66 ft |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | H: 54.58°(Wide)~5.30°(Tele) / V: 32.19°(Wide)~3.00°(Tele) / D: 61.4(Wide)~6.06(Tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265M |
| Video Formats | H.265B |
| Video Formats | MJPEG |
| Video Formats | H.264H |
| Video Formats | H.265H |
| Video Formats | H.264M |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Video Formats | H.264B |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 5.20 mm |
| Maximum Focal Length | 62.40 mm |
| Lens Included | Yes |
| Minimum Aperture | f/3 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 12x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Protocols | QoS |
| Protocols | IPv4 |
| Protocols | RTP/TCP |
| Protocols | ARP |
| Protocols | DNS |
| Protocols | UPnP |
| Protocols | ONVIF |
| Protocols | IPv6 |
| Protocols | NTP |
| Protocols | SNMPv1/v2c/v3 (MIB2) |
| Protocols | RTP/UDP |
| Protocols | DDNS |
| Protocols | LLDP |
| Protocols | TCP/IP |
| Protocols | RTCP |
| Protocols | HTTP |
| Protocols | FTP |
| Protocols | IGMP |
| Protocols | Bonjour |
| Protocols | RTSP |
| Protocols | PIM-SM |
| Protocols | UDP/IP |
| Protocols | HTTPS |
| Protocols | SSL/TLS |
| Protocols | DHCP |
| Protocols | SMTP |
| Protocols | ICMP |
| Protocols | SRTP |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 24 V AC |
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Power Source Type | PoE |
| Power Source Type | AC |
| Physical Characteristics | |
| Mount Type | Desk Mount |
| Mount Type | Wall Mount |
| Form Factor | Bullet |
| Color Family | Gray |
| Product Color | Dark Gray |
| Diameter | 5.8" |
| Weight (Approximate) | 4.80 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Shock Detection |
| Features | Motion Detection |
| Features | Vehicle Detection |
| Features | Defog |
| Features | Day/Night |
| Features | Fog Reduction |
| Features | Wide Dynamic Range |
| Features | Privacy Masking |
| Features | Highlight Compensation (HLC) |
| Features | Digital Noise Reduction |
| Features | Tamper Detection |
| Features | Face Detection |
| Features | Back Light Compensation (BLC) |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Korea |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
