HANWHA TECHWIN

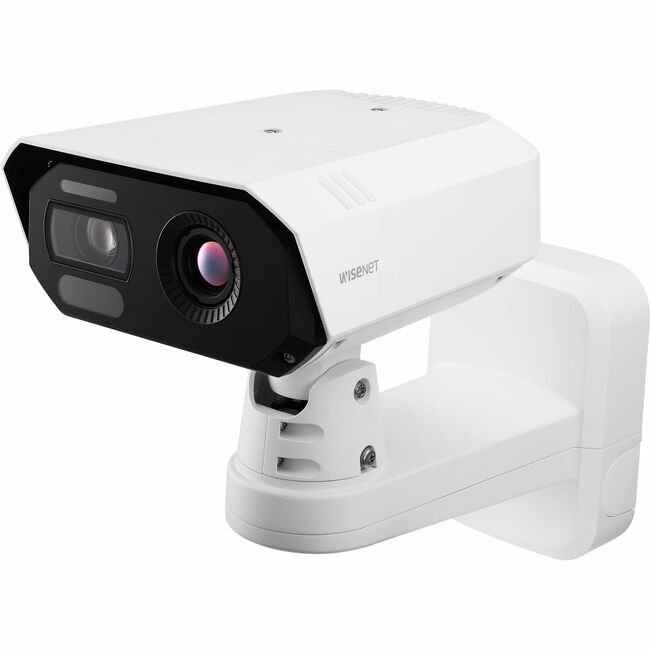

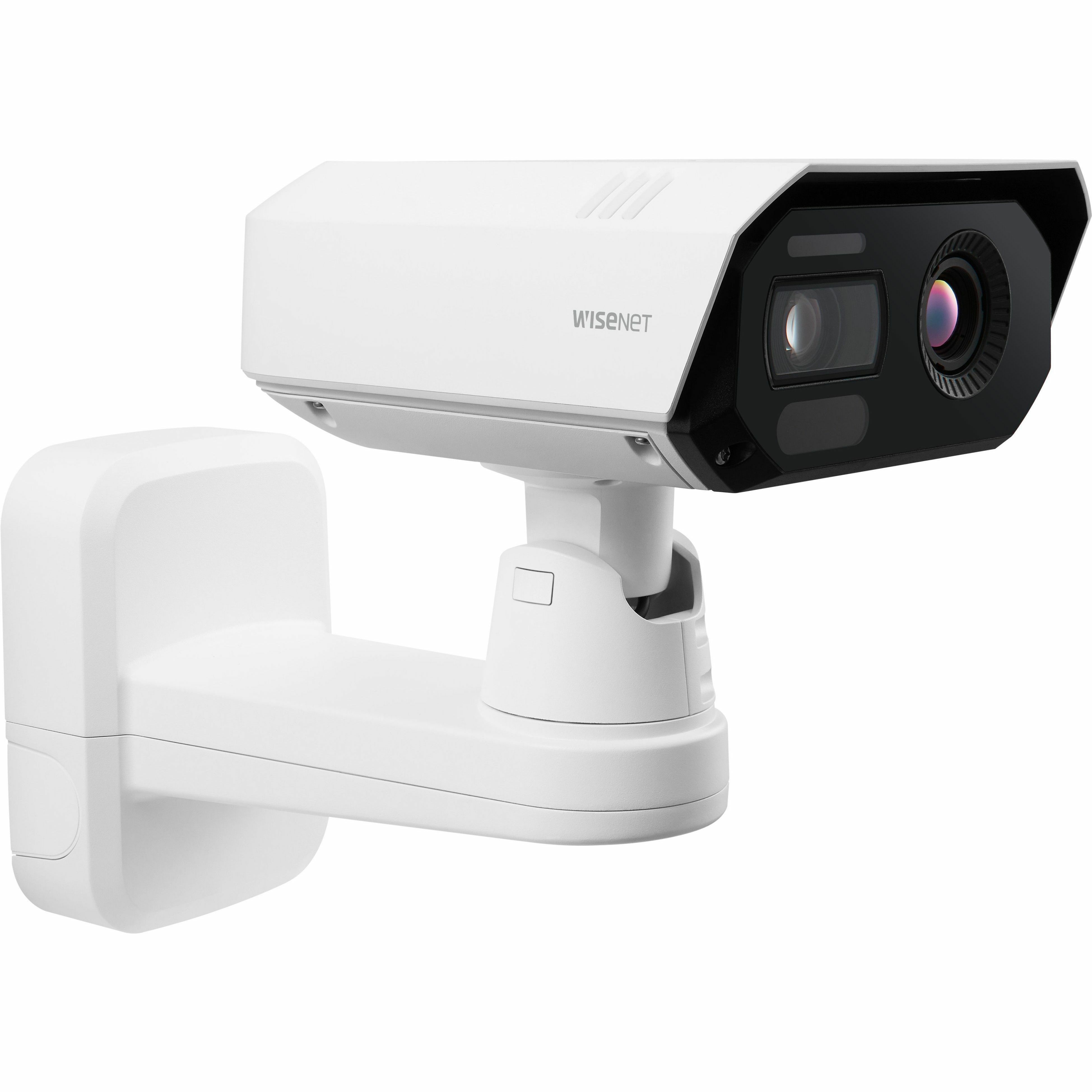

HANWHA TECHWIN TNM-C4940TD/KEX Bi-spectrum AI Thermal Camera VGA thermal/4K visible - TAA Compliant Wisenet T network Bi-spectrum AI Thermal Camera (uncooled) Dual sensor camera with VGA thermal and 4K visible video output built-in 9.1mm fixed lens..
Mfg Part Number: TNM-C4940TD/KEX , Item #: 4809527
Image may not reflect the actual item.
Price: $8,097.92
+ Free Shipping
Quantity:
More to Come
Last Updated: Jun 06, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | TNMC4940TDKEX |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | T |
| Product Model | TNM-C4940TD |
| Product Name | Bi-spectrum AI Thermal Camera |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | 4K |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/1.8" |
| Thermal Image Sensor Type | Uncooled Microbolometer |
| Color Supported | Color |
| Field of View | H: 50.0, V: 37.0, D: 63.8 / H:112.1°(Wide)~47.5°(Tele) / V:58.0°(Wide)~26.6°(Tele) / D:137.5°(Wide)~54.6°(Tele) |
| Number of Sensors | 2 |
| Video | |
| Video Formats | H.265M |
| Video Formats | MJPEG |
| Video Formats | H.264H |
| Video Formats | H.265H |
| Video Formats | H.265 |
| Video Formats | H.264M |
| Video Formats | H.264 |
| Maximum Video Resolution | 3840 x 2160 |
| Thermal Video Resolution | 1280 x 960 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed/Varifocal |
| Minimum Focal Length | 4.40 mm |
| Maximum Focal Length | 9.30 mm |
| Lens Included | Yes |
| Optical Zoom | 2.1x |
| Maximum Thermal Focal Length | 0.36" |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | DNS |
| Protocols | IPv6 |
| Protocols | NTP |
| Protocols | SNMPv1/v2c/v3 (MIB2) |
| Protocols | RTP/UDP |
| Protocols | DDNS |
| Protocols | LLDP |
| Protocols | RTP/TCP |
| Protocols | UDP/IP |
| Protocols | IPv4 |
| Protocols | TCP/IP |
| Protocols | RTP/RTSP/RTCP |
| Protocols | FTP |
| Protocols | IGMP |
| Protocols | Bonjour |
| Protocols | HTTPS |
| Protocols | SSL/TLS |
| Protocols | DHCP |
| Protocols | ICMP |
| Protocols | SRTP |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Power Source Type | PoE+ |
| Physical Characteristics | |
| Mount Type | Wall Mount |
| Mount Type | Pole Mount |
| Color Family | White |
| Product Color | White |
| Weight (Approximate) | 9.99 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Audio Compression |
| Features | Face Detection |
| Features | SD Card Local Storage |
| Features | Alarm Triggering |
| Features | Privacy Masking |
| Features | Vehicle Detection |
| Features | Human Detection |
| Features | Motion Detection |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Korea |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
