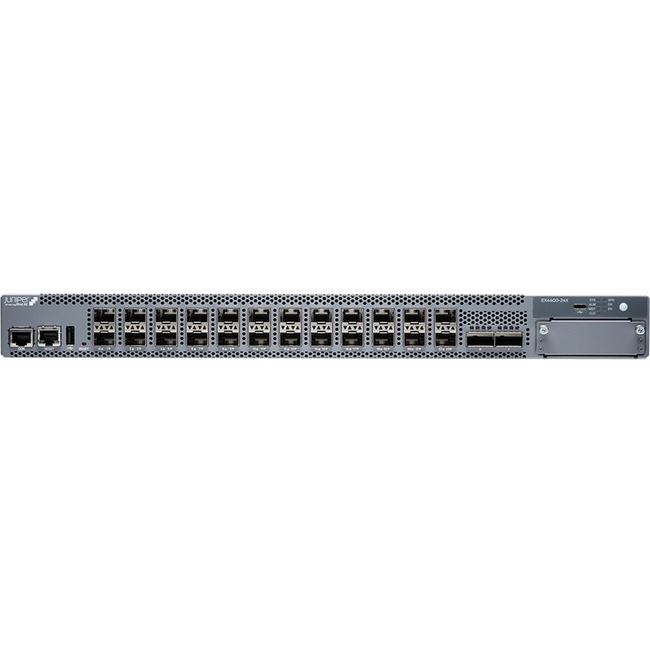

MIST SYSTEMS EX4400-24X-DC-AFI 24X10GBASEX SWITCH 2X100G DC AFI

The EX4400 line of Ethernet access switches offers secure, cloud-ready access for enterprise campus, branch, and data center networks for the AI era and optimized for the cloud. The platforms boost network performance and visibility, meeting the security demands of today as well as for networks of the next decade. As part of the underlying infrastructure for Juniper Mist Wired Assurance, the EX4400 is purpose-built for, and managed by, the cloud. The switch leverages Mist AI to simplify operations and provide better visibility into the experience of connected devices, delivering a refreshing, user experience-first approach to access layer switching.

Product Description

The Juniper Networks® EX4400 line of Ethernet switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, campus, and data center networks. The EX4400 switches combine the simplicity of the cloud, the power of Mist AI™, and a robust hardware foundation with best-in-class security and performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper Mist™ Wired Assurance, the EX4400 can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.

Key features of the EX4400 include:

• Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
• Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
• End-to-end encryption using Media Access Control Security (MACsec) AES256
• IEEE 802.3bz Multigigabit
• IEEE 802.3bt Power over Ethernet (PoE++)
• Standards-based microsegmentation using group-based policies (GBP)
• Flow-based telemetry to monitor traffic flows for anomaly detection
• Precision Timing Protocol - Transparent clock
• 10-member Virtual Chassis support

Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4400 enables a variety of deployments, including campus, branch, and data center top-of-rack deployments. As requirements grow, Juniper's Virtual Chassis technology allows up to 10 EX4400 switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay- as-you-grow solution for expanding network environments.

General Information
Manufacturer	Juniper Networks, Inc
Manufacturer Part Number	EX4400-24X-DC-AFI
Manufacturer Website Address	http://www.juniper.net
Brand Name	Juniper
Product Series	EX4400
Product Model	EX4400-24X-DC-AFI
Product Name	EX4400-24X-DC-AFI Ethernet Switch
Product Type	Ethernet Switch
Interfaces/Ports
Modular	Yes
Port/Expansion Slot Details	24 x 10 Gigabit Ethernet Network
Media & Performance
Media Type Supported	Optical Fiber
Ethernet Technology	10 Gigabit Ethernet
Network Technology	10GBase-X
I/O Expansions
Total Number of Expansion Slots	24.0
Expansion Slot Type	SFP+
Number of SFP+ Slots	24
Network & Communication
Layer Supported	3
Networking Standards	IEEE 802.1w
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.3ab
Networking Standards	IEEE 802.1s
Networking Standards	IEEE 802.3bz
Networking Standards	IEEE 802.3u
Networking Standards	IEEE 802.3by
Networking Standards	IEEE 802.3ae
Networking Standards	IEEE 802.1p
Networking Standards	IEEE 802.1ae
Networking Standards	IEEE 802.1x
Networking Standards	IEEE 802.1D
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.1ak
Networking Standards	IEEE 802.1ab
Networking Standards	IEEE 802.1Q
Networking Standards	IEEE 802.3z
Networking Standards	IEEE 802.3ah
Management & Protocols
Manageable	Yes
Power Description
Input Voltage	120 V AC
Input Voltage	230 V AC
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Number of Power Supplies Supported	2
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Compact
Form Factor	Rack-mountable
Height	1.7"
Width	17.4"
Depth	16.9"
Weight (Approximate)	13.01 lb
Miscellaneous
Application/Usage	Enterprise
Application/Usage	Campus
Application/Usage	Network
Application/Usage	Data Center
Warranty
Limited Warranty	Lifetime
