ZyXEL

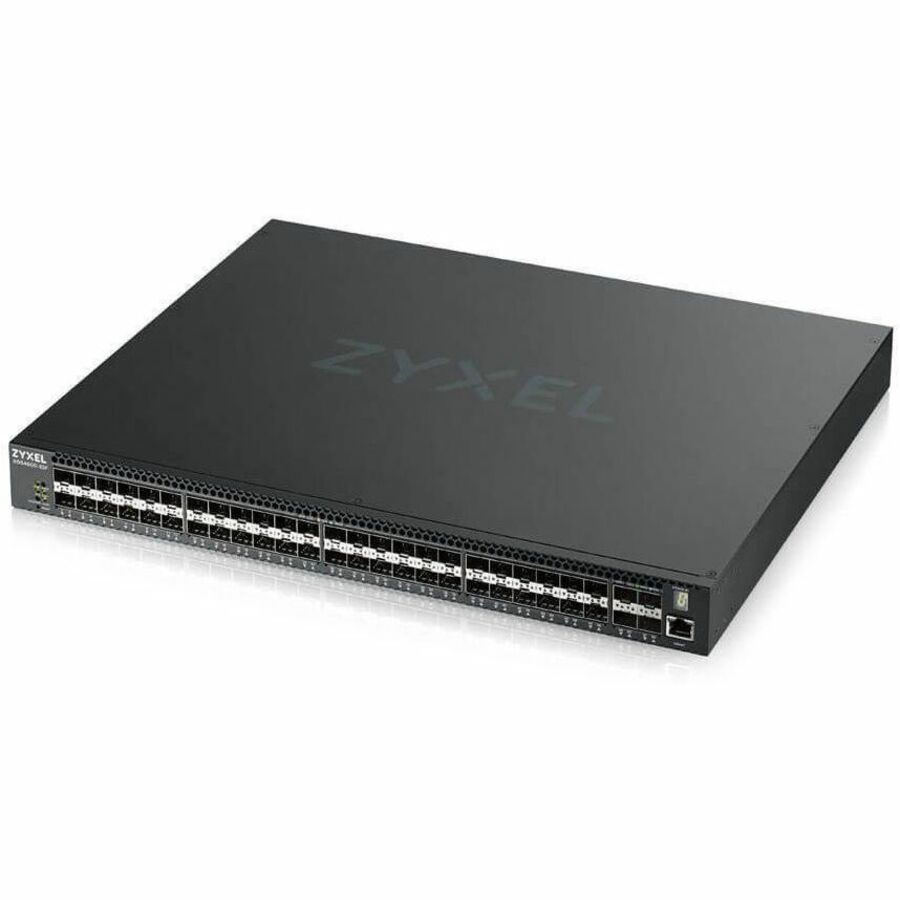

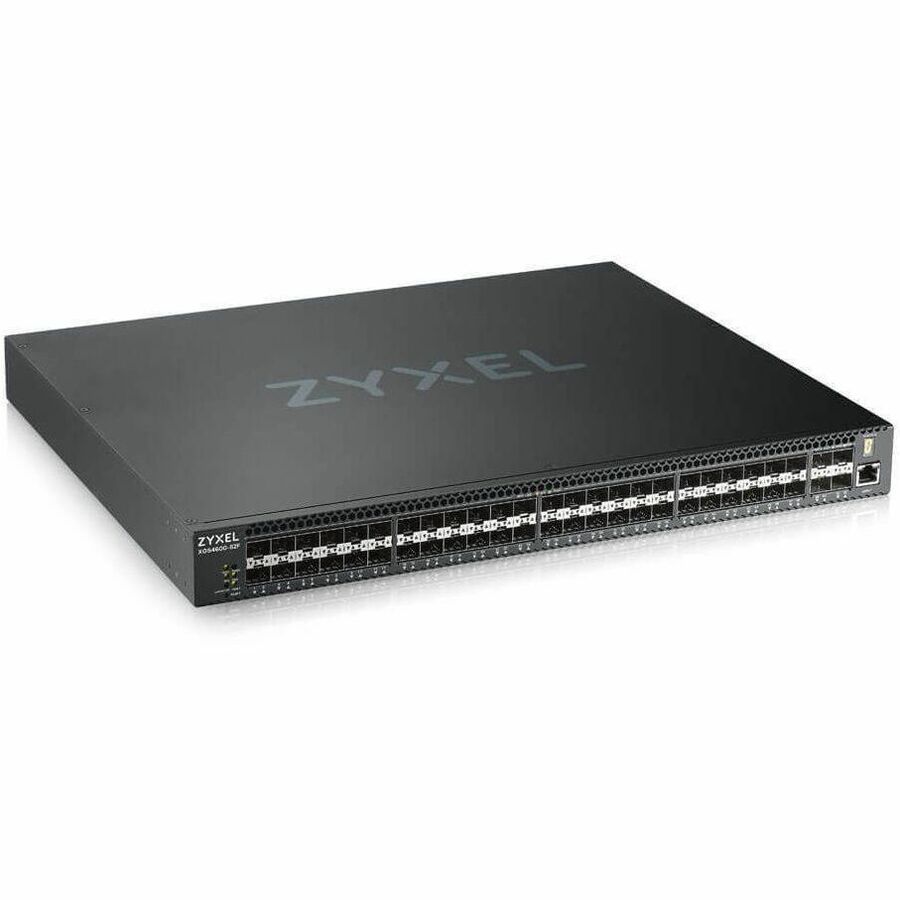

ZyXEL XGS4600-52F-DC - DC TELCO 48-PORT SFP LAYER 3+ MANAGED 10 GIGABIT SWITCH 4X 10G
Mfg Part Number: XGS4600-52F-DC , Item #: 4808812
, PO and Wire.
Stylish Outlook
New ID design with carbon fiber look name plate delivers the modern look-and-feel in the closet.
High Availability
The XGS4600 Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements.
Stacking Capability
The XGS4600 Series allows creating a physical stack through one or two 10-Gigabit SFP+ slots. The dynamic routing feature simplifies cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks. Additionally, now we offer the advanced routing license supports RIPng and OSPFv3 for XGS4600 to support IPv6 routing environment.
High Resiliency
The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.
Robust Hardware
High-quality hardware design ensures stability and longevity for XGS4600 Series on your networks.
| General Information | |
| Manufacturer | ZYXEL Communications Corp. |
| Manufacturer Part Number | XGS4600-52F-DC |
| Manufacturer Website Address | http://www.us.zyxel.com |
| Brand Name | ZYXEL |
| Product Series | XGS4600 |
| Product Model | XGS4600-52F |
| Product Name | 48-port GbE L3 Aggregation Fiber Switch with 4 SFP+ Uplink |
| Product Type | Layer 3 Switch |
| Technical Information | |
| Features | DHCP Snooping |
| High Availability Supported | Yes |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Uplink |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 4 |
| Networking Standards | IEEE 802.1ab |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.1x |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.3 |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.3z |
| Management & Protocols | |
| Manageable | Yes |
| Reliability | |
| MTBF | 815860 Hour |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Power Source | Power Supply |
| Power Source | DC |
| Power Consumption | 70.16 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 14.2" |
| Weight (Approximate) | 10.96 lb |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Network |
| Application/Usage | Business |
| Certifications & Standards | Safety
EMC
|
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
