ASUS

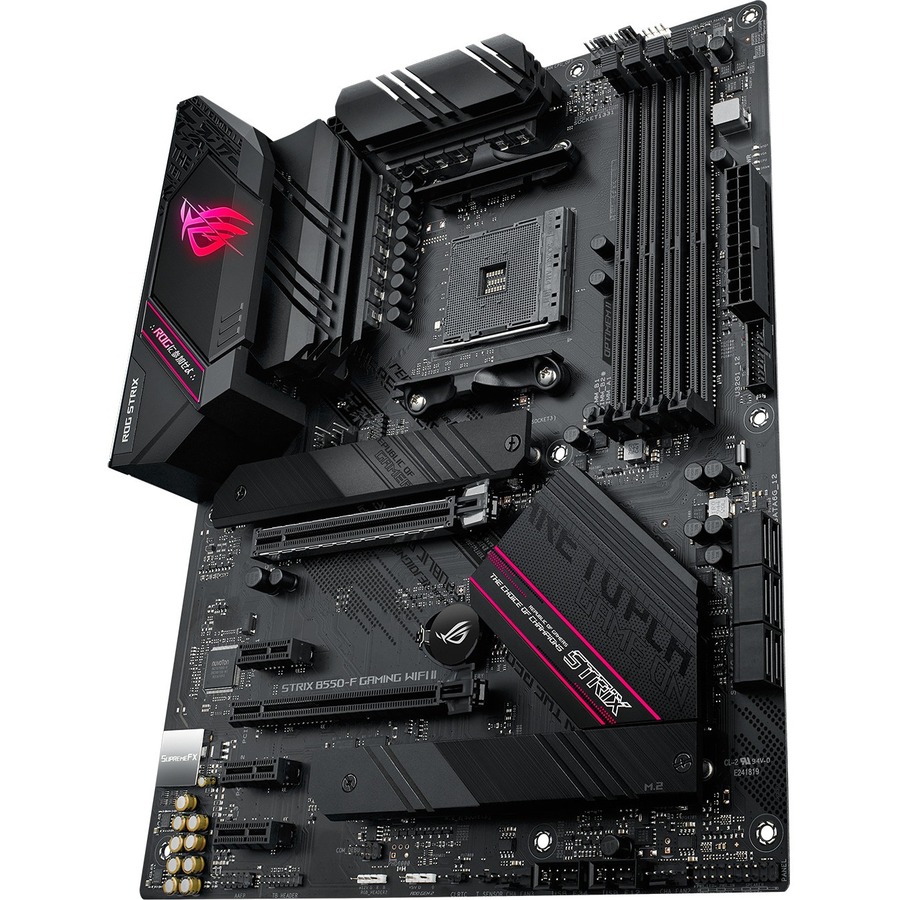

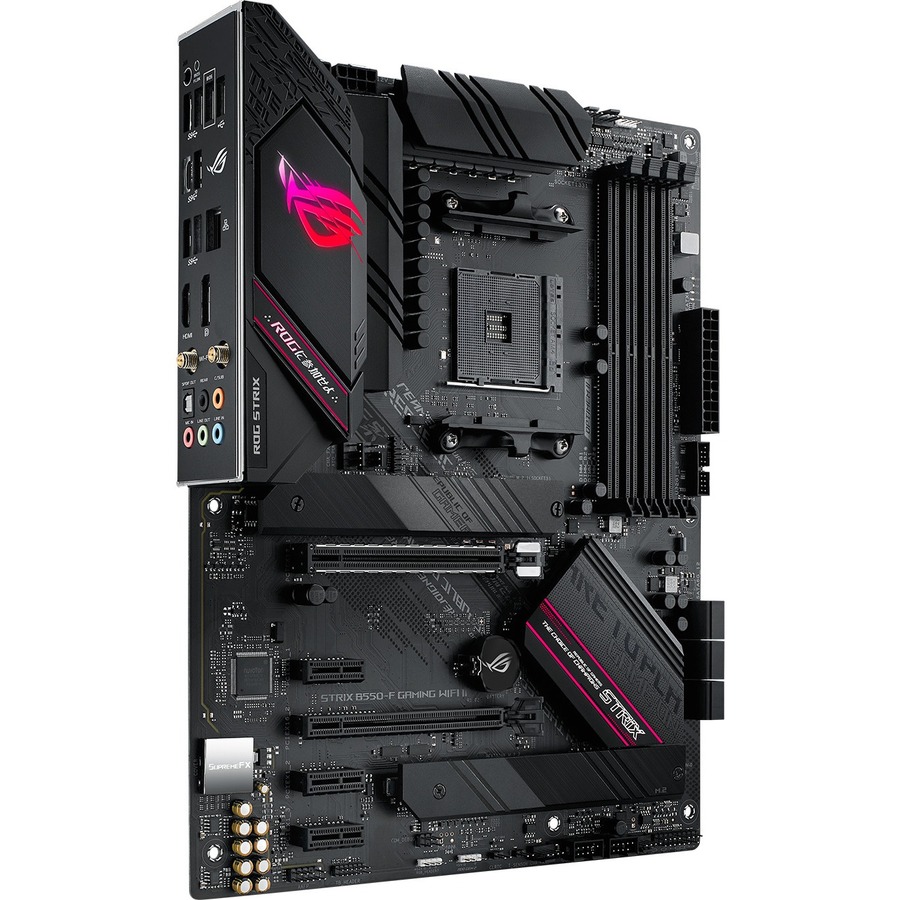

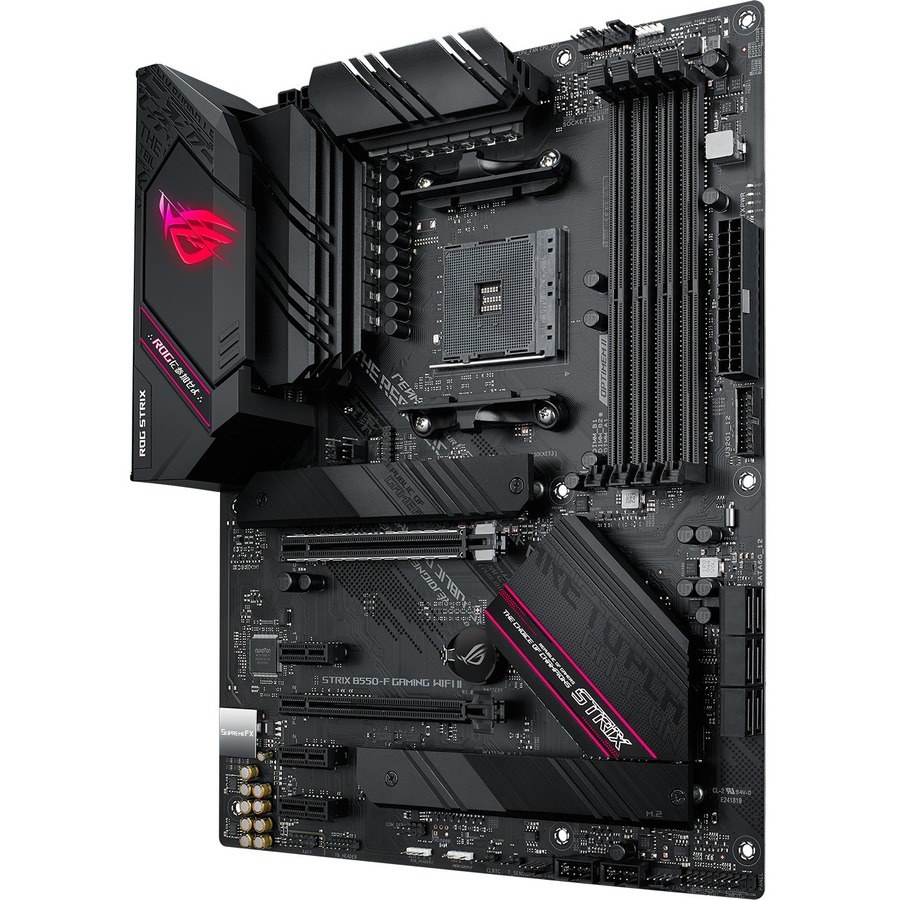

ASUS ROG STRIX B550-F GAMING WIFI II
Mfg Part Number: ROG STRIX B550-F GAMING WIFI II , Item #: 4807158
, PO and Wire.
ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle Zen 3 architecture AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming WiFi II gives you a head start on your dream build
ADVANCE YOUR GAMING IMMERSION
ROG Strix B550-F Gaming WiFi II is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.
PCIE 4.0-READY

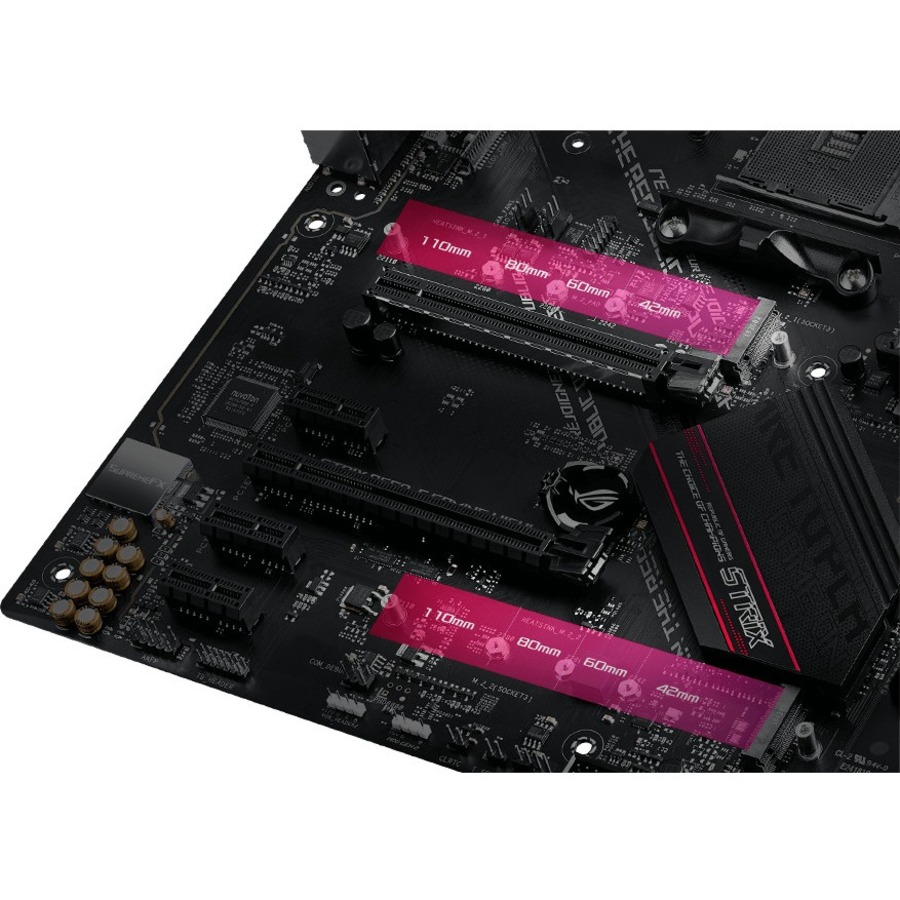

ROG Strix B550-F Gaming WiFi II features two M.2 slots, one of which supports the PCIe 4.0 standard to provide maximum storage flexibility and the lightning-fast data speeds. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.
ALL-ROUND PERFORMANCE
ROG Strix B550-F Gaming WiFi II provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory - so it has everything you need to load up your build with high-performance components for playing in the big leagues.
PLAY YOUR OWN STYLE
The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming WiFi II are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.
UNDENIABLY ROG STRIX
ROG Strix B550-F Gaming WiFi II embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots.
ROG GIVES YOU MORE
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROGSTRIXB550FGAMINGWIFIII |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus ROG |
| Product Line | Strix |
| Product Model | STRIX B550-F GAMING WIFI II |
| Product Name | STRIX B550-F GAMING WIFI II Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | B550 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Processor Supported | Ryzen 7 |
| Processor Supported | Ryzen 3 PRO |
| Processor Supported | Ryzen 5 |
| Processor Supported | Ryzen 3 |
| Processor Supported | Ryzen 7 PRO |
| Processor Supported | Ryzen 9 PRO |
| Processor Supported | Ryzen 5 Pro |
| Processor Supported | Ryzen 9 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 4866 MHz |
| Memory Speed Supported | 3466 MHz |
| Memory Speed Supported | 5100 MHz |
| Memory Speed Supported | 3400 MHz |
| Memory Speed Supported | 3733 MHz |
| Memory Speed Supported | 4666 MHz |
| Memory Speed Supported | 3866 MHz |
| Memory Speed Supported | 2800 MHz |
| Memory Speed Supported | 2666 MHz |
| Memory Speed Supported | 2400 MHz |
| Memory Speed Supported | 4133 MHz |
| Memory Speed Supported | 3600 MHz |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 4000 MHz |
| Memory Speed Supported | 4266 MHz |
| Memory Speed Supported | 4600 MHz |
| Memory Speed Supported | 3000 MHz |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 4466 MHz |
| Memory Speed Supported | 3200 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 5 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x1 Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of Onboard USB 3.2 Ports | 2 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
