CTA DIGITAL

CTA DIGITAL ADD-GSMAR SINGLE MONITOR SPRING ARM RED USB PORTS

Mfg Part Number:  ADD-GSMAR
Image may not reflect the actual item.
Price: $132.46 + Free Shipping
Quantity:
More to Come
Last Updated: May 20, 2025
No Sales Tax except these states
, PO and Wire.

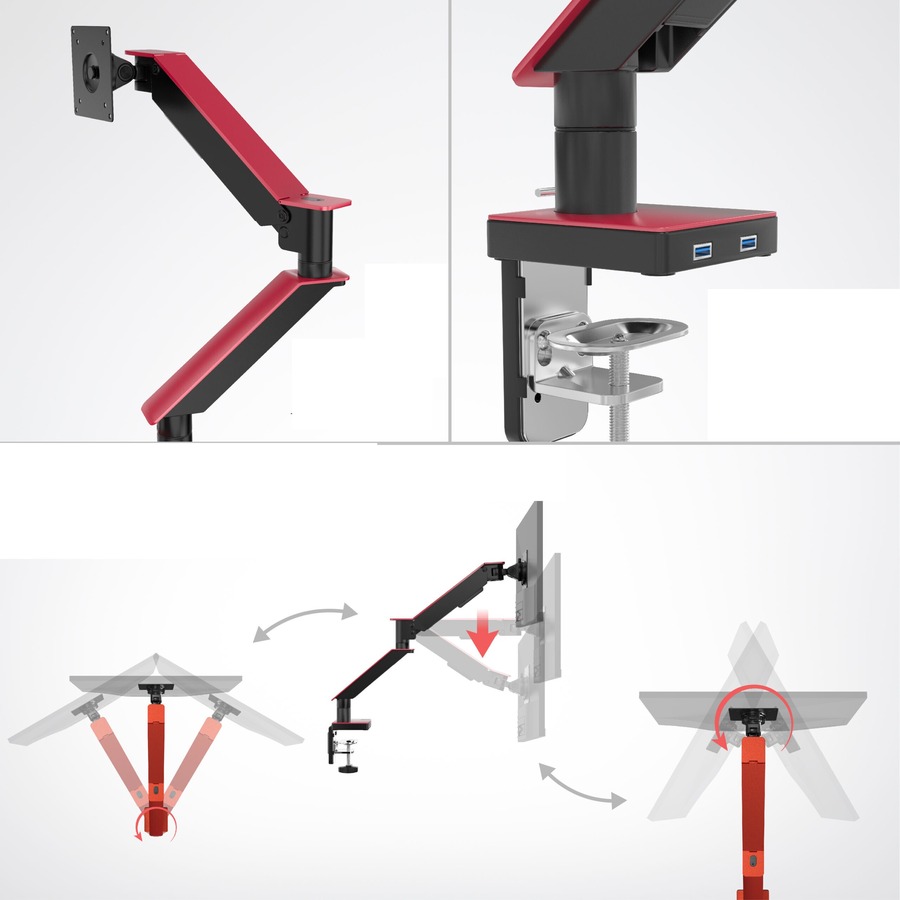

CTA Digital's Single Monitor Gas Spring Monitor Arm with USB Ports lives at the crossroads of style and function. This sturdy, versatile mount features a gorgeous red metal finish for just the right pop of color. A spring-loaded center joint locks to the perfect angle when tightened with the included Allen key, and swivels a full 360-degrees. To lock, press the magnetic joint cover, pop it out, tighten the joint, then replace cover. The head of this sturdy unit attaches via standard VESA 75 x 75 or 100 x 100 mm plate to curved or flat monitors up to 35 inches and 24 lbs. It slides out of a locking bracket, for simple mounting. The head tilts a full 180-degrees up and down as well as left to right, and locks in place with an Allen key. The head also rotates for use in either portrait or landscape orientation. The base swivels to create the ideal viewing angle. The mount attaches in two ways. It grips counters that have a thickness range of 0.39 to 3.35 inches via padded rotary C-clamp. It can also be permanently screwed into surfaces through pre-drilled grommets with a hole diameter of 0.39 to 2.3 inches. The base comes with 2 USB ports, ideal for both charging and use with additional devices. Store Allen keys in holes at the rear of the C-clamp mount. All cables can be managed via useful clips down the spring arms.

  • 360-degree swivel flexible arm rotation
  • VESA joint allows for portrait to landscape orientation and has 180 degree vertical or horizontal flexibility.
  • (2) USB ports with wires at rear at the base of the mount for ultra-portable device charging
  • Locking/Unlocking gas spring arm versatility for optimal preferred height adjustments
  • Magnetic joint covers for a clean and seamless aesthetic
  • C-Clamp offers a tool bar to store included integral Allen key tools to make joint adjustments when needed

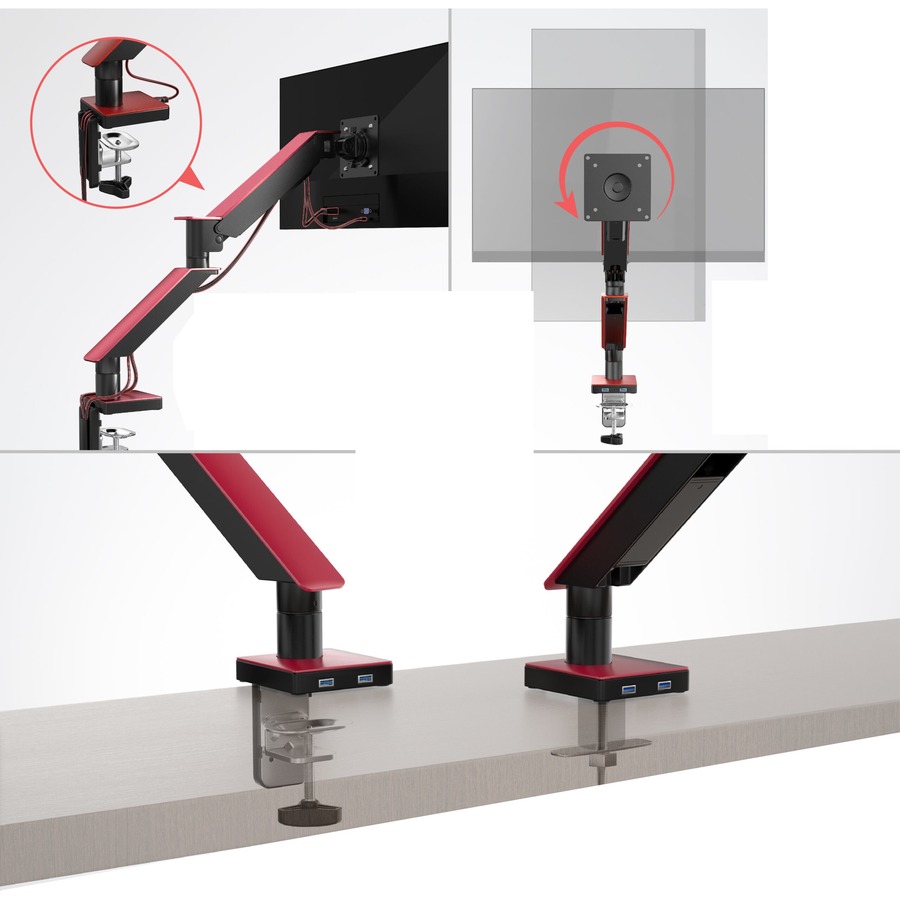

  • Cable management with detachable clips throughout the arm for a clean and amalgamated setup
  • Available with C-Clamp or Grommet style mounting
  • Compatible 75 x 75 mm or 100×100 mm VESA mount plate. Compatible with screens up to 35" max and CTA's Paragon enclosures.
  • Comes with 2 options of VESA plates, one security and one non-security, depending upon mounting environment you can choose which one you need!
Main Specification
General Information
Manufacturer CTA Digital, Inc
Manufacturer Part Number ADDGSMAR
Manufacturer Website Address http://www.ctadigital.com
Brand Name CTA Digital
Product Name Single Monitor Gas Spring Arm with USB Ports (Red)
Packaged Quantity 1
Product Type Mounting Arm
Product Information
Device Supported Curved Screen Display
Device Supported Monitor
Device Supported Flat Panel Display
Number of Displays Supported 1
Minimum Load Capacity 24 lb
Maximum Load Capacity 24.20 lb
Maximum Screen Size Supported 35"
Features Spring Loaded Mechanism
Features Gas Spring
Features Magnetic
Features Spring Arm
Features Cable Management
Features Adjustable Joint
Features Rotate
Features Lockable
Features USB Port
Features 180° Tilt
Features Sturdy
Features Landscape/Portrait Mounting
Features 360° Swivel
Features Adjustable Angle
Features Flexible
Height Adjustable Yes
Physical Characteristics
Product Color Red
Finishing Red
Finishing Metal
VESA Mount Compatible Yes
Mounting Pattern 100 x 100
Mounting Pattern 75 x 75
Height 17.70"
Width 4.50"
Depth 22.80"
Weight (Approximate) 7 lb
Miscellaneous
Package Contents
  • 1 x C-Clamp
  • 1 x Grommet Clamp
  • 1 x Gas Spring Monitor Arm
  • 2 x VESA Plate
  • 1 x Set of Hardware
Application/Usage Counter
Application/Usage Surface
Warranty
Limited Warranty 1 Year
WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
