Capture Your Events With the Best Quality Video and AI!

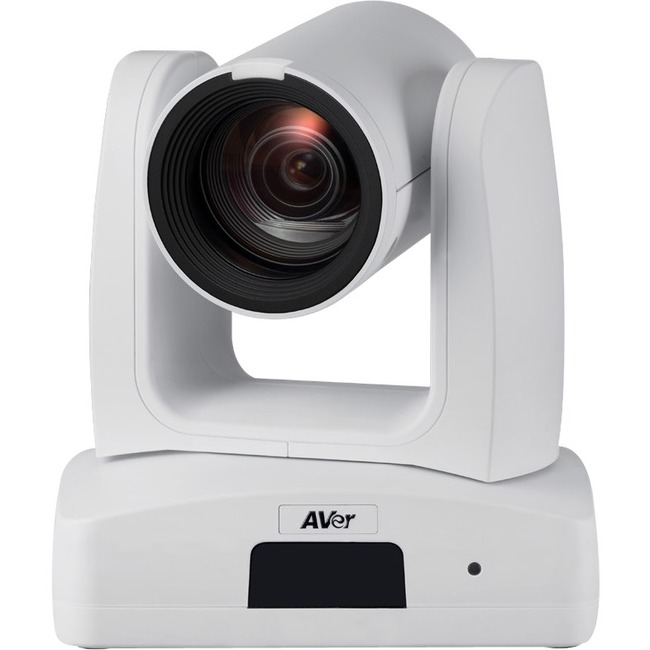

The AVer PTZ310UV2 12X 4K AI PTZ Camera is our latest generation of PTZs to offer the best image quality, video streaming support and AI functionality. The camera offers 4K resolution, 8MP picture with 60fps and simultaneous output of USB/IP/HDMI/3G-SDI. The PTZ310UV2 features Zoom and Microsoft Teams video mode for easy conference setups and the SRT protocol to optimize video streaming performance across unpredictable networks. Built-in AI functions provide preset content areas or adjust FOV to capture everyone on screen.
4Kp60
Simultaneous output at 4Kp60 with HDMI/USB/IP.
Seamless tracking between your preset zones
AVer SmartShoot uses AI functionality to optimize your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot's Advanced Preset Zone Tracking, you can create an uncompromising multi-camera feel with just one PTZ310UV2 across all your preset zones. Save effort and time, while providing your video with a huge variety of shooting ranges.
Highly versatile camera motion control
The PTZ310UV2 advanced Motion Control Settings allow you to preform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, the PTZ310UV2 is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.
Prepare for any angle with outstanding preset location functionality
Preset the PTZ310UV2 with up to 256 different locations through VISCA via RS232 and RS422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.
Tally light
Simplify multi-camera live video productions with an illuminated red light on the active camera.
Free Software for Users and AV Managers
Whether you need a simple tool to control your PTZ or TR camera, or manage over a hundred on your network, AVer has great options. CaptureShare and PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered. For new voice tracking features, look to PTZ Link. Visit our support page for easy download of our desktop software.
| General Information | |
| Manufacturer | AVer Information Inc |
| Manufacturer Part Number | PTZ310UV2 |
| Manufacturer Website Address | http://www.averusa.com |
| Brand Name | AVer |
| Product Line | Pro AV |
| Product Model | PTZ310UV2 |
| Product Name | Pro AV PTZ310UV2 Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | 4K |
| HD Recording | Yes |
| Camera Iris | Auto |
| AI-powered | Yes |
| Display & Graphics | |
| Image Sensor Type | Exmor CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | DFOV : 79.2° (Wide) to 7.5° (Tele), HFOV : 72.1° (Wide) to 6.3° (Tele), VFOV : 44.0° (Wide) to 3.7° (Tele) |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | MJPEG |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | NDI |
| Analog Video Signal Format | 3G-SDI |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.90 mm |
| Maximum Focal Length | 46.80 mm |
| Lens Included | Yes |
| Minimum Aperture | f/2.8 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 12x |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | VISCA |
| Protocols | PELCO-P |
| Protocols | PELCO-D |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 19 W |
| Input Voltage | 100 V AC |
| Input Voltage | 240 V DC |
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Power Source Type | AC |
| Power Source Type | PoE+ |
| Physical Characteristics | |
| Mount Type | Ceiling Mount |
| Height | 7.6" |
| Width | 7.1" |
| Depth | 5.7" |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Operating Humidity | 20% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 20% |
| Maximum Storage Humidity | 95% |
| Miscellaneous | |
| Features | 3D Noise Reduction |
| Features | 2D Noise Reduction |
| Features | Auto Gain Control |
| Features | Built-in Tally Light |
| Features | Automatic White Balance |
| Features | Wide Dynamic Range |
| Features | PTZ |
| Features | Back Light Compensation (BLC) |
| Features | Mirror |
| Features | Auto Flip |
| Indoor/Outdoor | Indoor |
| Package Contents |
|
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | Accessories
|
