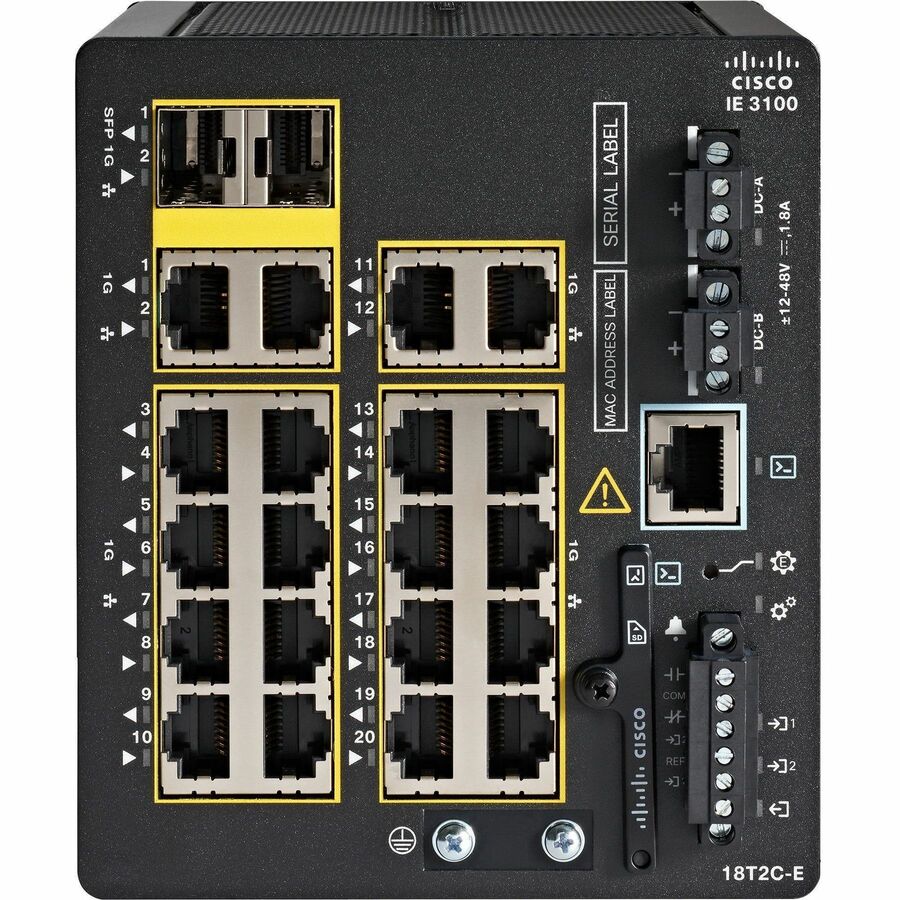

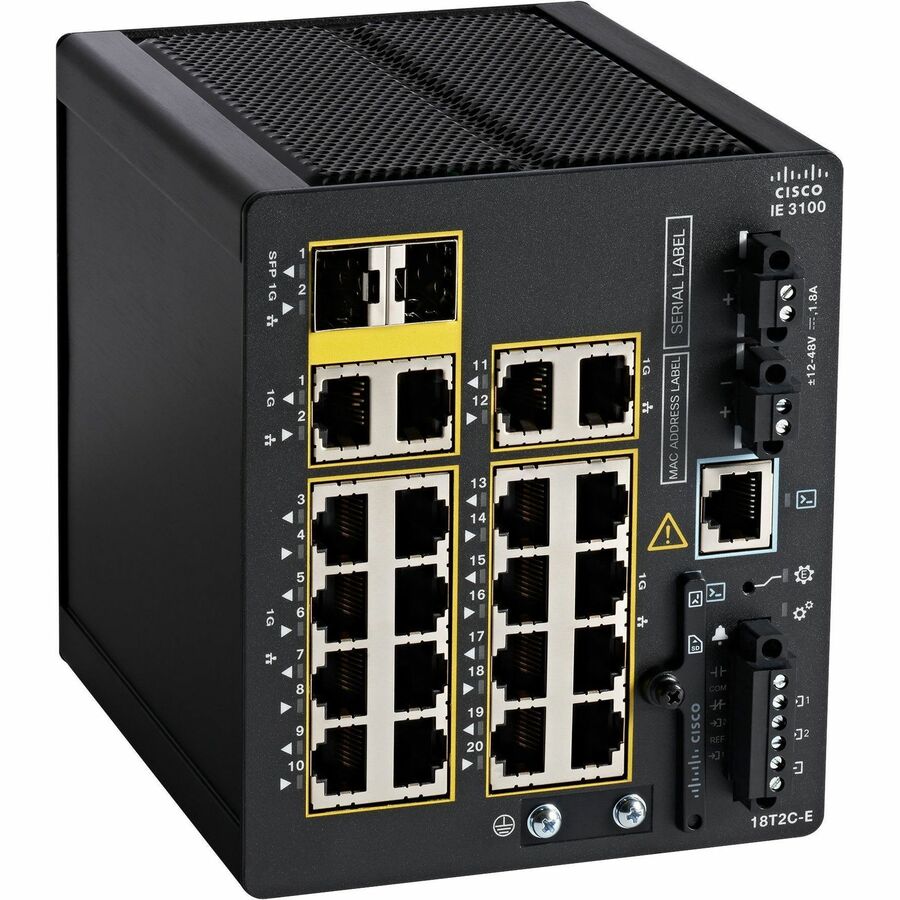

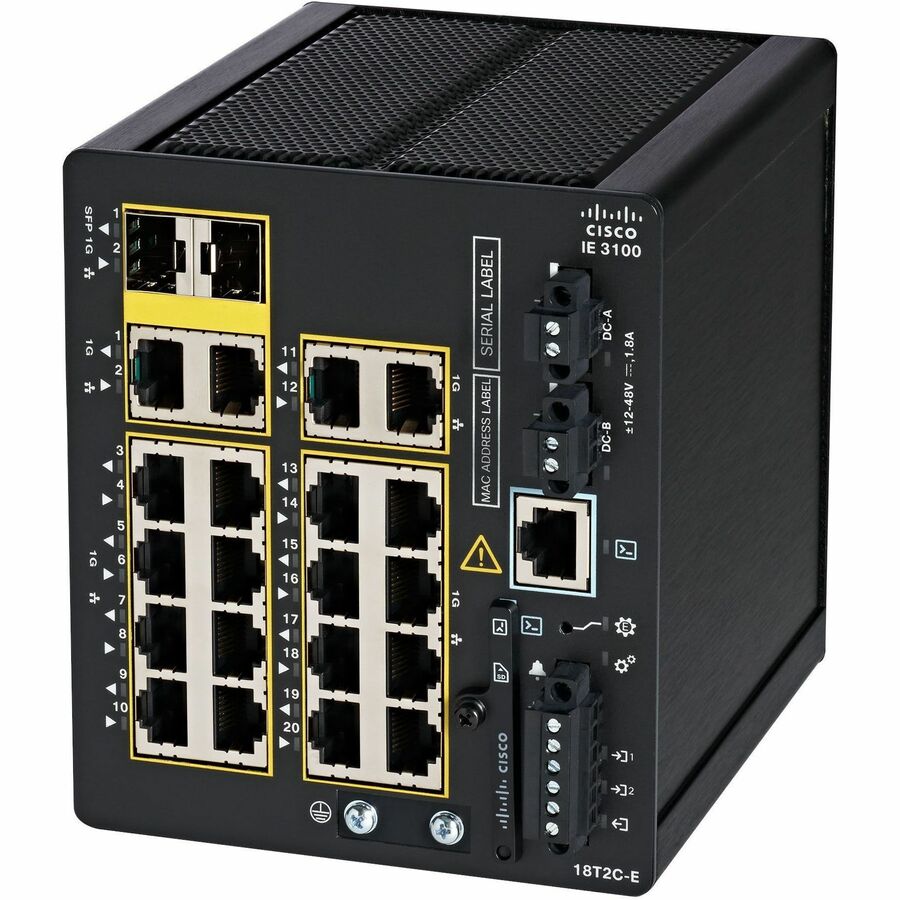

CISCO IE-3100-18T2C-E IE3100 W/18GE COPPER, 2GE COMBO,FIXED SYS,NETWORK ESSENTIALS
Mfg Part Number: IE-3100-18T2C-E , Item #: 4803198
, PO and Wire.
The Cisco Catalyst IE3100 Rugged Series delivers mainstream adoption of Gigabit Ethernet connectivity in a compact, fixed form-factor switch that is purpose-built for a wide variety of extended enterprise and industrial applications in the most space constrained scenarios.
Product overview
Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.
The IE3100 Rugged Series switches offer:
- Models offering 6, 10, 12, or 20 Gigabit Ethernet ports with up to 4 Gigabit SFP uplink ports or 2 Gigabit Combo uplink ports
- Robust resiliency enabled by features such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), and dual-input DC power supplies
- Simplified software management with universal images
- Support for industrial automation protocols EtherNet/IP (CIP), Modbus and PROFINET
- Support for Layer-2 Network Address Translation
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | IE-3100-18T2C-E |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | IE3100 Rugged |
| Product Name | Catalyst IE3100 Rugged Layer 3 Switch |
| Packaged Quantity | 1 |
| Product Type | Layer 3 Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 20 |
| Uplink Port | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 18 x 10/100/1000 Base-T RJ-45 Network Port |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Uplink Network Port |
| Port/Expansion Slot Details | 1 x (RS-232) RJ-45 Serial Port |
| Port/Expansion Slot Details | 1 x Micro-USB Type B |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T |
| Maximum Data Transfer Rate | 125 MB/s |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.1x |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.1ab |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.3ah |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.3u |
| Management & Protocols | |
| Manageable | Yes |
| Reliability | |
| MTBF | 642050 Hour |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 240 W |
| Input Voltage | 9.6 V |
| Input Voltage | 48 V |
| Input Voltage | 12 V |
| Input Voltage | 60 V |
| Power Source | Power Adapter |
| Power Source | DC |
| Redundant Power Supply Supported | Yes |
| Number of Power Supplies Supported | 2 |
| Power Consumption | 36.70 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Compact |
| Form Factor | DIN Rail Mountable |
| Height | 5" |
| Width | 4.3" |
| Depth | 5.1" |
| Weight (Approximate) | 2.80 lb |
| Miscellaneous | |
| Application/Usage | Enterprise |
| Application/Usage | Industrial |
| Application/Usage | IP Camera |
| Application/Usage | Wireless Access Point |
| Application/Usage | Outdoor |
| Energy Star | No |
