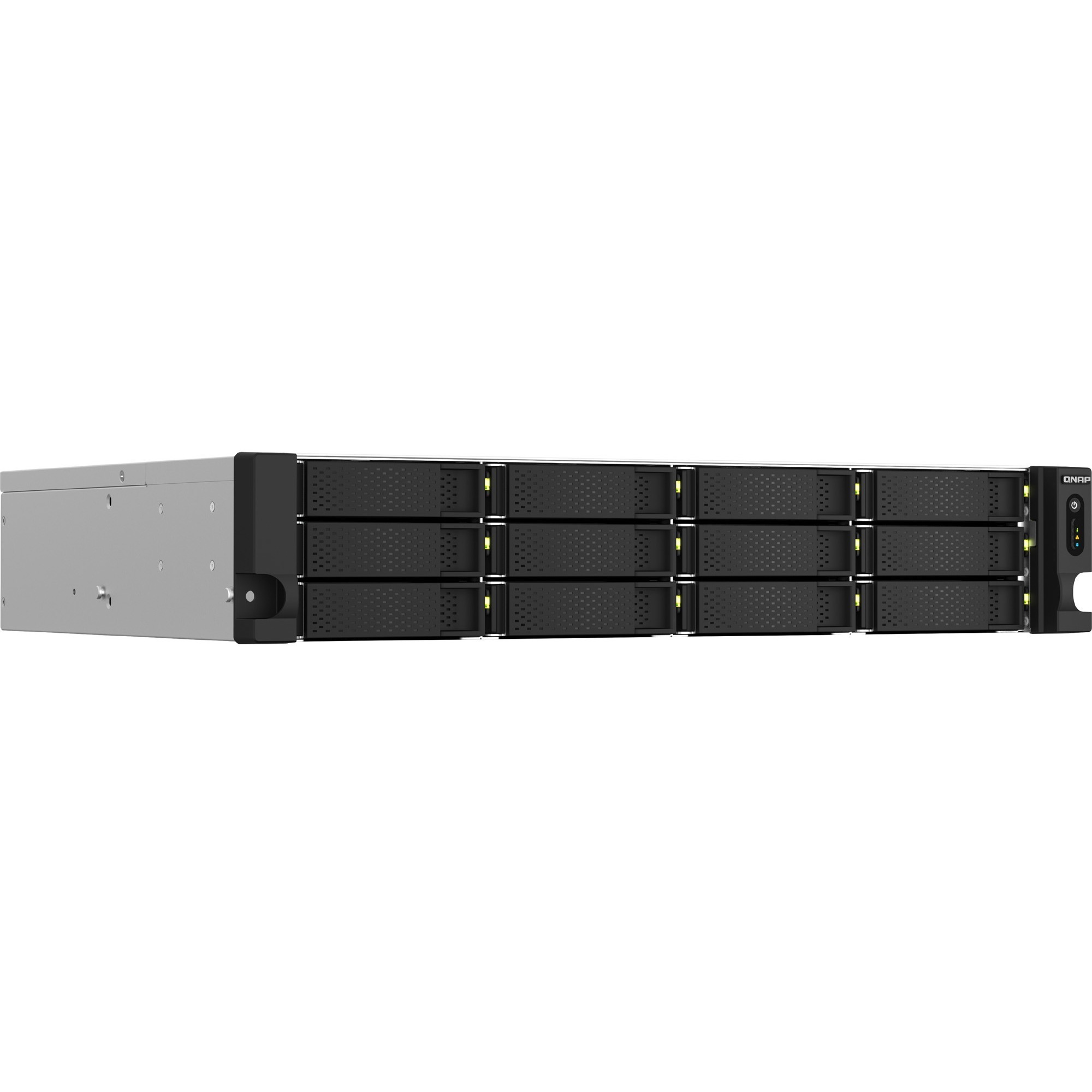

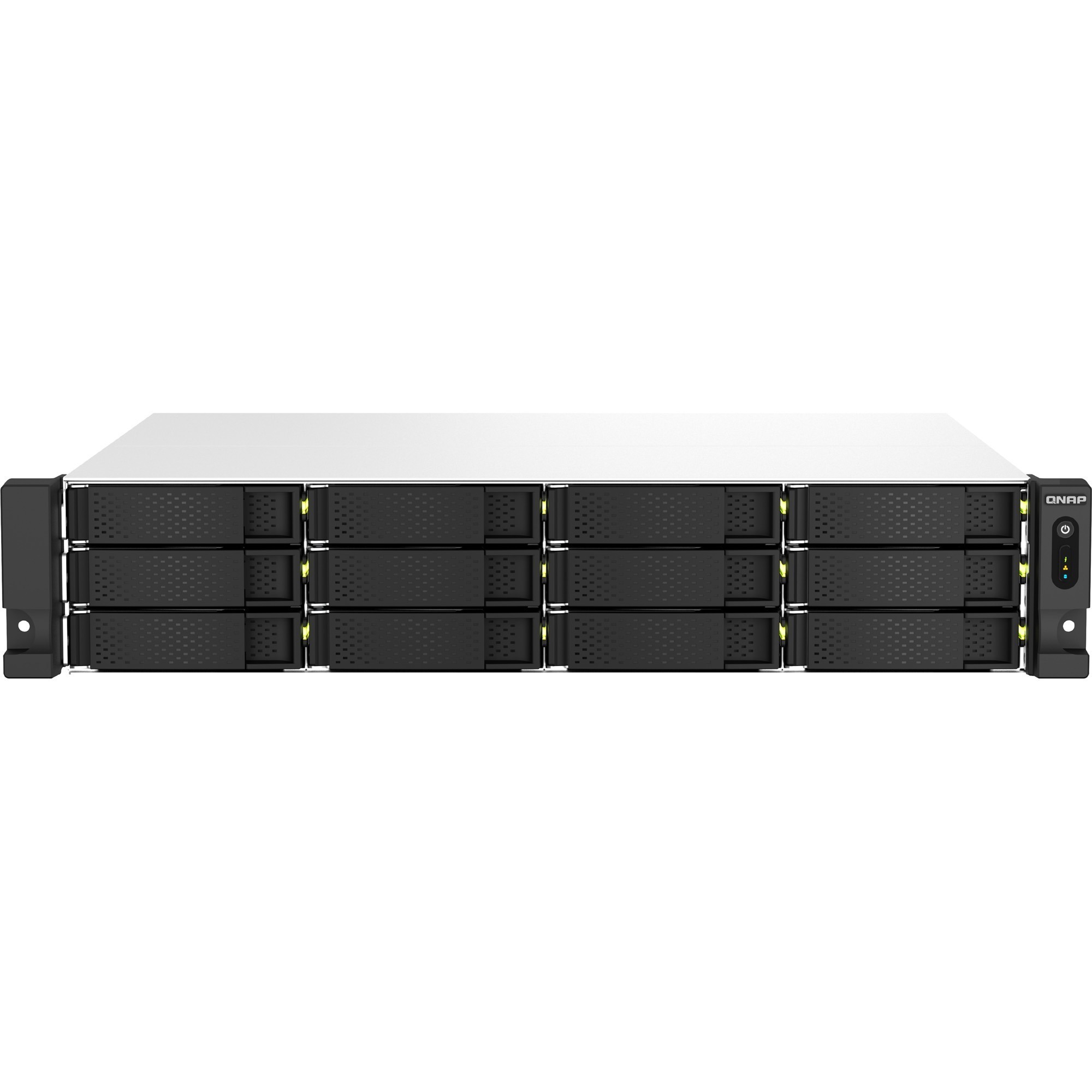

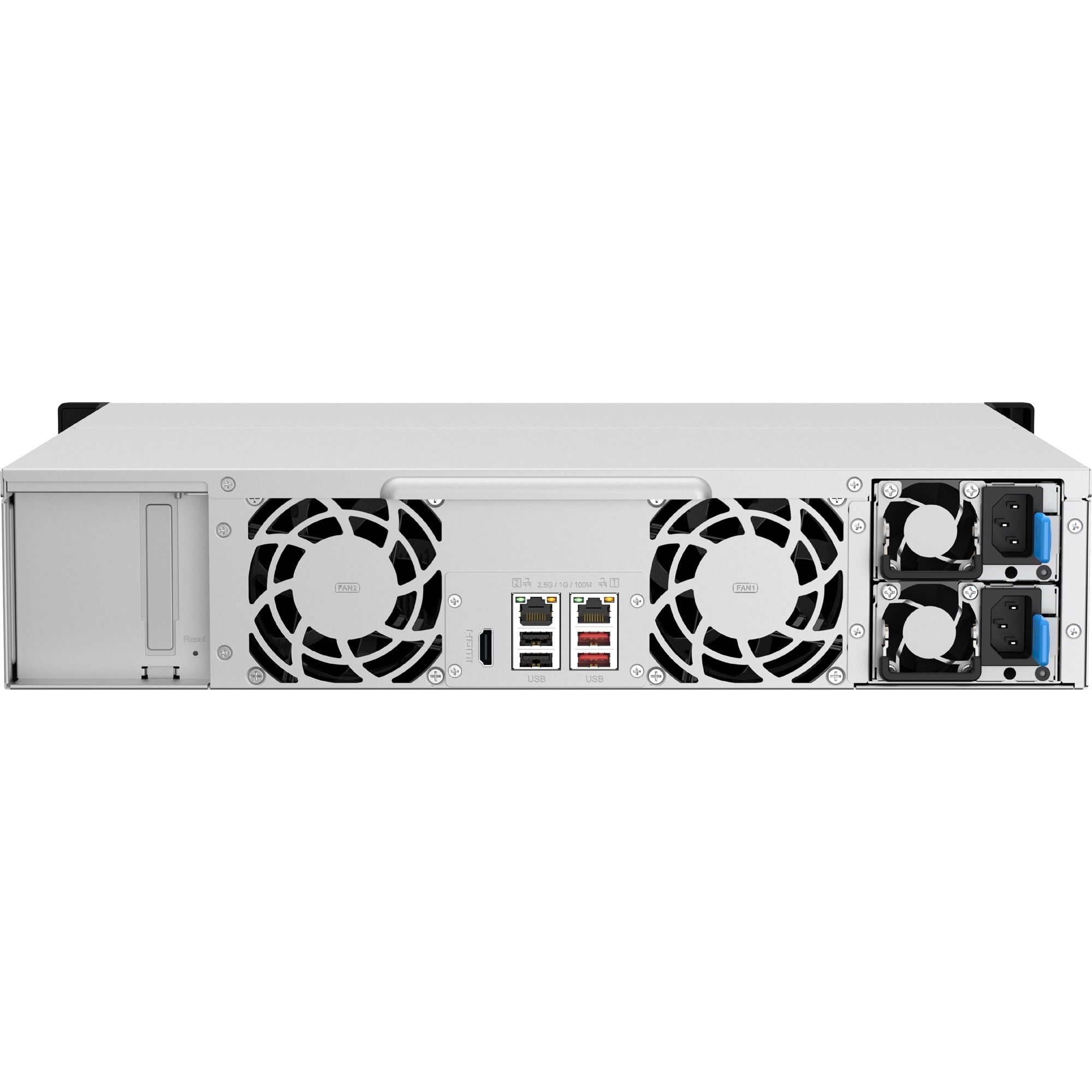

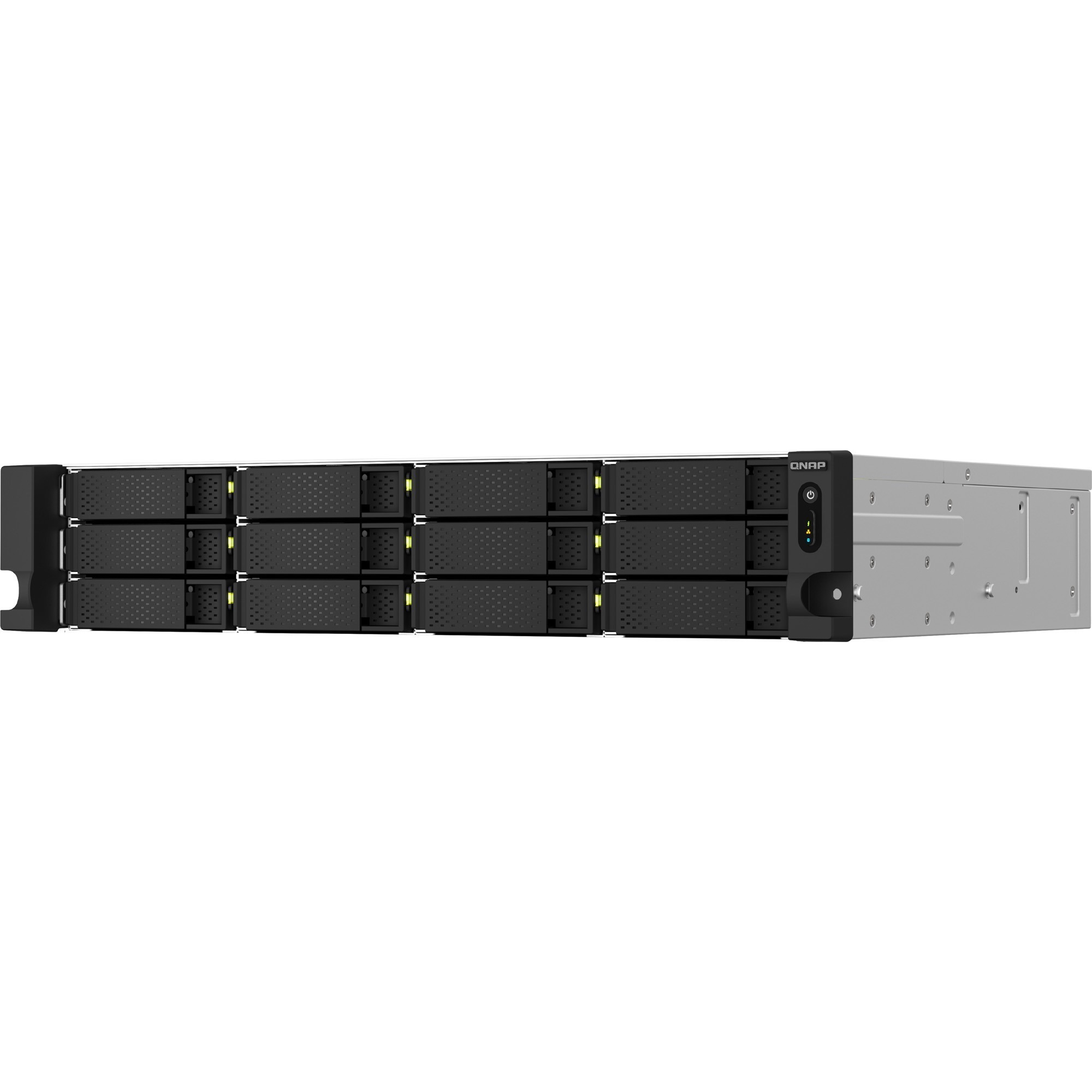

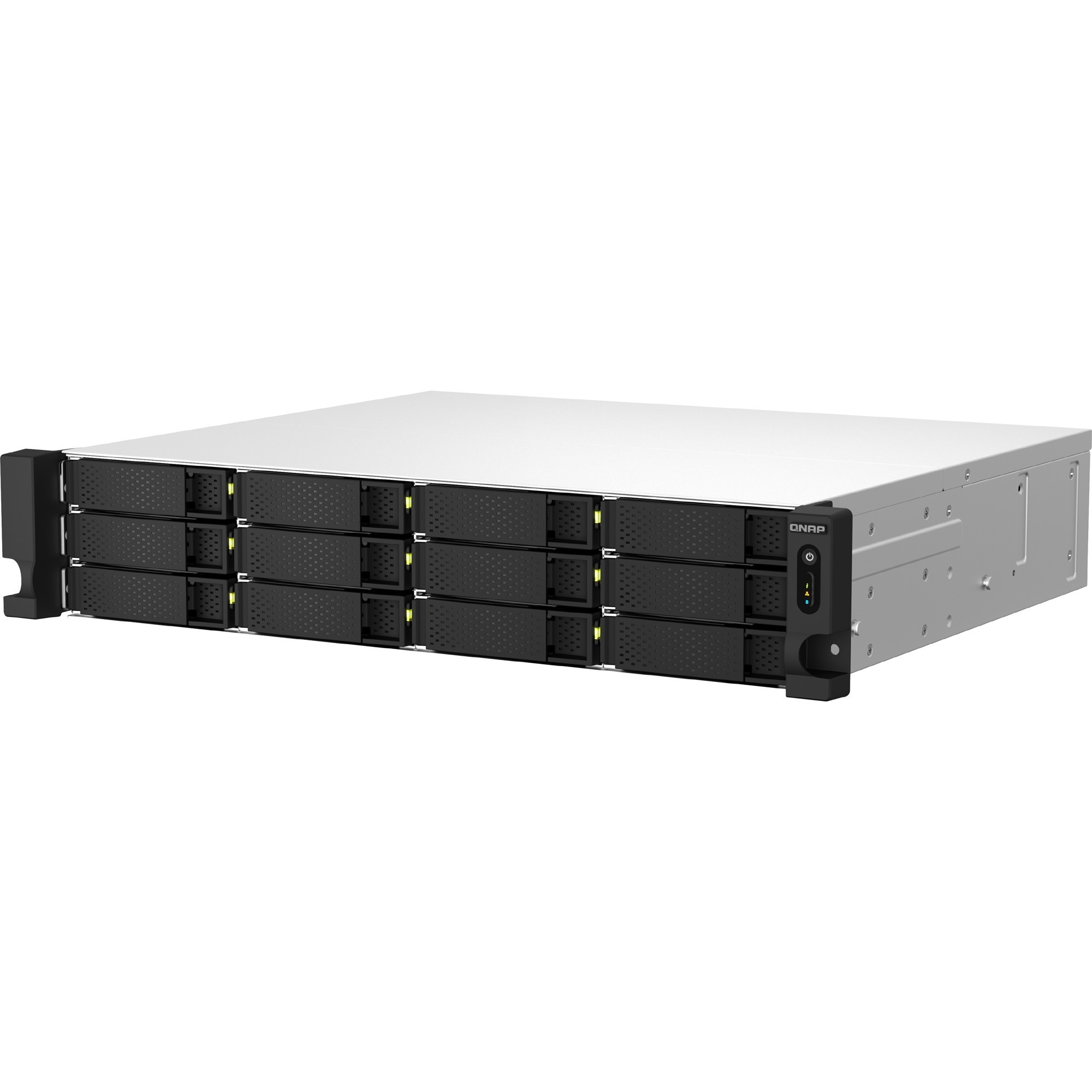

QNAP NAS TS-1264U-RP-8G-US 2U 12Bay Celeron N5095 4C 4T 2.9GHz 8GB RAM Retail

Intel® quad-core rackmount NAS with dual-port 2.5GbE and PCIe expandability for high-speed transmission and virtualization applications

Powered by an Intel® Celeron® N5095 quad-core processor (burst up to 2.9GHz), the TS-1264U-RP features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. The built-in 4K HDMI output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS-1264U-RP provides flexibility in extending NAS functionality, allowing you to install various cards: a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-1264U-RP also supports AES 256-bit encryption to ensure the confidentiality of sensitive business data without affecting system performance. The TS-1264U-RP also features a redundant power supply to ensure maximum system uptime.

2.5GbE connectivity

Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

PCIe expandability

Install a PCIe Gen3 x2 card to expand the core functionality of the TS-1264U-RP, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.

PCIe expandability

Install a PCIe Gen3 x2 card to expand the core functionality of the TS-1264U-RP, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.

Snapshots

Protect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data.

License-free virtualized environment

Host multiple containerized apps to run a wide range of applications and services.

Drives Auto-Tiering

Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.

Flexible expansion

Scale your storage capacity to fit growing data needs by connecting QNAP's expansion units.

Quad-core high performance

The TS-1264U-RP is powered by an Intel Celeron N5095 quad-core processor and supports 8 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.

Streamline large file transfers and video editing with 2.5GbE

The TS-1264U-RP comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.

General Information
Manufacturer	QNAP Systems
Manufacturer Part Number	TS-1264U-RP-8G-US
Manufacturer Website Address	http://www.qnap.com
Brand Name	QNAP
Product Series	TS-x64
Product Model	TS-1264U-RP-8G
Product Name	TS-1264U-RP-8G SAN/NAS Storage System
Product Type	SAN/NAS Storage System
Storage
Number of Hard Drives Supported	12
Number of Hard Drives Installed	0
Number of Solid State Drive Supported	12
Number of Solid State Drive Installed	0
Flash Memory Capacity	4 GB
Processor & Chipset
Processor Manufacturer	Intel
Processor Type	Celeron
Processor Model	N5095
Processor Core	Quad-core (4 Core)
Processor Speed	2 GHz
Memory
Standard Memory	8 GB
Network & Communication
Ethernet Technology	2.5 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays	12
Number of 2.5"/3.5" Bays	12
Total Number of Expansion Slots	1
Expansion Slot Type	PCI Express 3.0 x2
Controllers
Controller Type	Serial ATA/600
RAID Supported	Yes
RAID Levels	0, 1, 5, 6, 10, 50, 60, JBOD
Interfaces/Ports
HDMI	Yes
Total Number of USB Ports	4
Number of USB 2.0 Ports	2
Number of USB 3.2 Gen 2 Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
Software
Operating System	QTS 5.0.1
Management & Protocols
Protocols	DDNS
Protocols	HTTPS
Protocols	HTTP
Protocols	IPv6
Protocols	WEBDAV
Protocols	SNMPv2
Protocols	FTP
Protocols	IPSec
Protocols	TFTP
Protocols	L2TP
Protocols	LDAP
Protocols	TLS
Protocols	CIFS/SMB
Protocols	DHCP
Protocols	FTPS
Protocols	AFP
Protocols	Telnet
Protocols	SSL
Protocols	iSCSI
Protocols	PPTP
Protocols	SFTP
Protocols	SSH
Protocols	IPv4
Protocols	NFS
Protocols	FXP
Power Description
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	300 W
Redundant Power Supply	Yes
Physical Characteristics
Height	3.5"
Width	19"
Depth	16.7"
Form Factor	Rack-mountable
Rack Height	2U
Weight (Approximate)	20.79 lb
Miscellaneous
Package Contents	TS-1264U-RP-8G SAN/NAS Storage System 1 x Ethernet Cable 2 x Power Cords 48 x Flat Head Screw (for 3.5" HDD) 36 x Flat Head Screw (for 3.5" HDD) Quick Installation Guide (QIG)
Warranty
Limited Warranty	3 Year
