Image may not reflect the actual item.
Price: $85.40
+ Free Shipping
Quantity:
In Stock: 1
Last Updated: Jun 20, 2026
No Sales Tax except these states
, PO and Wire.

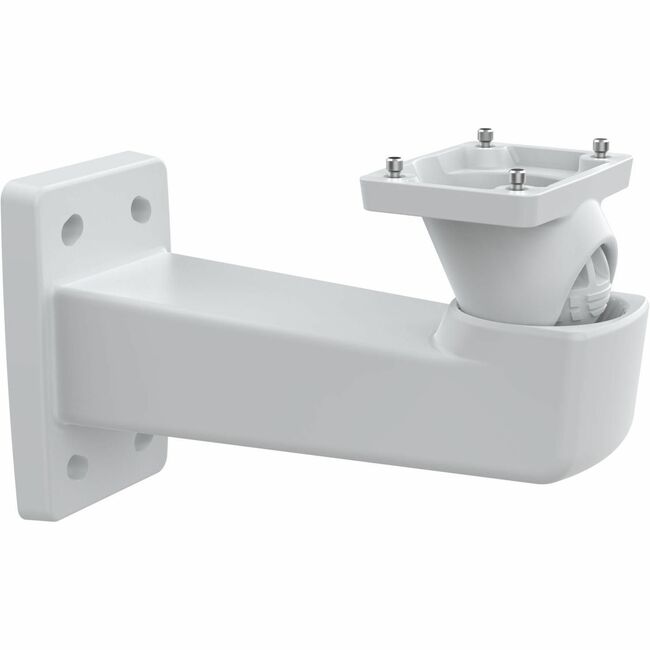

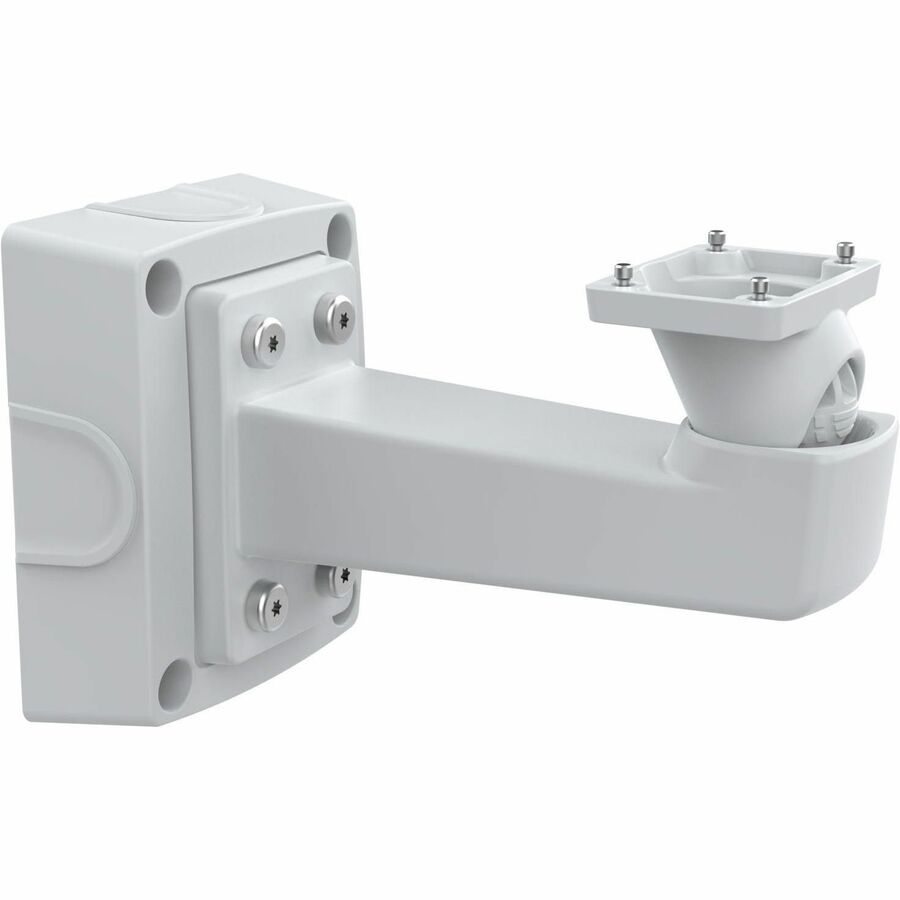

Highly robust and rotatable wall mount, made of aluminum, and compatible with all Axis outdoor fixed box cameras and housings. Corrosion tested according to NEMA 4X, UL listed and IK10 rated. When used together with AXIS T94R01P Conduit Back Box, the Ethernet cable can be routed through cable protection pipes/conduits along the wall (from the left or right).
- Highly robust wall mount
- Rotatable
- Flexible cable routing
- IK10 Rated
- Aluminium
Main Specification
| General Information | |
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02567-001 |
| Manufacturer Website Address | http://www.axis.com |
| Brand Name | AXIS |
| Product Model | TQ1003-E |
| Product Name | TQ1003-E Wall Mount |
| Packaged Quantity | 1 |
| Product Type | Wall Mount |
| Product Information | |
| Device Supported | Camera |
| Device Supported | Back Box |
| Device Supported | Housing |
| Maximum Load Capacity | 15.43 lb |
| Features | 10° Tilt |
| Features | Rotate |
| Features | Flexible |
| Features | ±5° Rotation |
| Features | IK10 |
| Features | Cable Management |
| Features | Robust |
| Features | Pan Adjustment |
| Mount Profile | Fixed |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Finishing | Powder Coated |
| Product Material | Chromate Aluminum |
| Product Material | Polyvinyl Chloride (PVC) |
| Form Factor | Wall Mountable |
| Height | 5.50" |
| Width | 3.10" |
| Depth | 8.30" |
| Weight (Approximate) | 1.53 lb |
| Miscellaneous | |
| Application/Usage | Wall |
| Application/Usage | Indoor/Outdoor |
| Application/Usage | Cable Management |
| Compatibility | Axis Cameras
|
