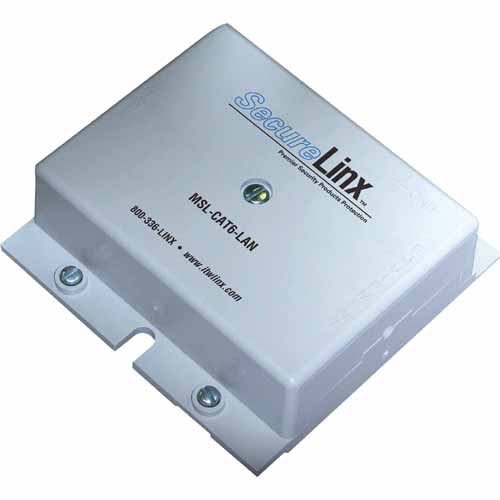

ITW LINX ITWLinx SurgeGate CAT6-LAN Surge Suppressor

Mfg Part Number:  CAT6-LAN
Image may not reflect the actual item.
Price: $104.99
Quantity:
In Stock: 10
Last Updated: Oct 10, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
General Information
Manufacturer ITW Linx
Manufacturer Part Number CAT6-LAN
Manufacturer Website Address http://www.itwlinx.com
Brand Name ITWLinx
Product Line SurgeGate
Product Model CAT6-LAN
Product Name SurgeGate CAT6-LAN Surge Suppressor
Product Type Surge Suppressor/Protector
Technical Information
Dataline Protection Ethernet
Physical Characteristics
Height 4.3"
Width 4.3"
Depth 1.5"
Weight (Approximate) 6.72 oz
Miscellaneous
Additional Information

Features:

  • Exceeds TIA/EIA Standards 568 and 758 for CAT6 connector performance
  • Solid-state protection for fastest response
  • Use between buildings in a campus environment as a building entrance protector or in hostile industrial applications as an isolated loop protector
  • Expandable System Protection: SurgeGate Series Base
  • Units and Modules can be attached to expand system protection as your system grows

Product Specifications:

  • Recommended Grounding Impedance: Less then 0.5 Ohm
  • Signal Perfect Circuitry: Yes
  • Fused/Auto-Resettable: Yes
  • Performance Rating: Cat 6
  • Clamping Level: 16V
  • Response Time: 1-5 Nanoseconds
  • Capacitance: Less then 5pF
  • Agency Approvals: UL Primary 497 (Listed as Category Series - 16), Isolated Loop (497B)
Warranty
Limited Warranty Lifetime
