MELLANOX

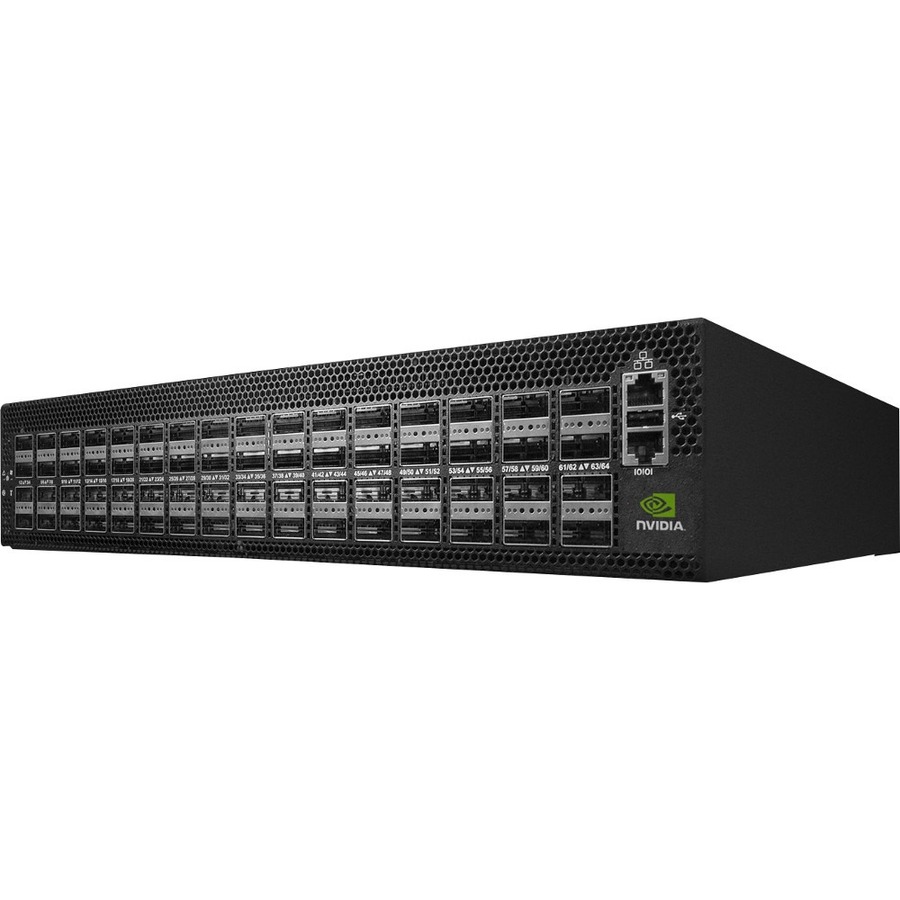

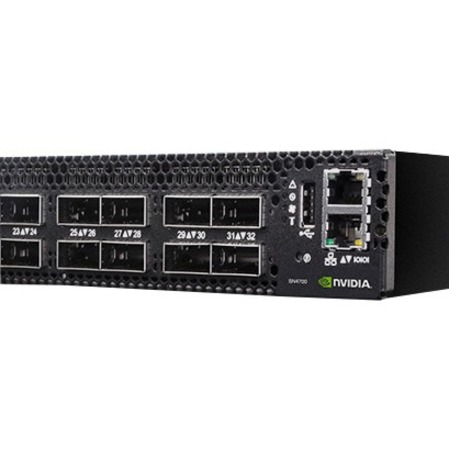

MELLANOX MSN4600-VS2RC SPECTRUM-3 56PORT 200GBE 2U ENET W/ CUMULUS LINUX 64QSFP C2P
Mfg Part Number: MSN4600-VS2RC , Item #: 4797694
Image may not reflect the actual item.
Price: $57,364.08
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Nov 14, 2025
No Sales Tax except these states
, PO and Wire.
SN4600
SN4600 is a 2U 64-port 200GbE spine that can also be used as a high density leaf, fully splittable to up to 128X 10/25/50GbE ports when used with splitter cables. SN4600 allows for maximum flexibility, with ports spanning from 1 to 200GbE and port density that enables full rack connectivity to any server at any speed, and a variety of blocking ratios.
SN4600 is a 2U 64-port 200GbE spine that can also be used as a high density leaf, fully splittable to up to 128X 10/25/50GbE ports when used with splitter cables. SN4600 allows for maximum flexibility, with ports spanning from 1 to 200GbE and port density that enables full rack connectivity to any server at any speed, and a variety of blocking ratios.
Main Specification
| General Information | |
| Manufacturer | NVIDIA Corporation |
| Manufacturer Part Number | MSN4600-VS2RC |
| Manufacturer Website Address | http://www.nvidia.com |
| Brand Name | Mellanox |
| Product Line | Spectrum-3 |
| Product Series | SN4000 |
| Product Model | MSN4600-VS2RC |
| Product Name | Spectrum-3 MSN4600-VS2RC Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 64 x 200 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 200 Gigabit Ethernet |
| I/O Expansions | |
| Total Number of Expansion Slots | 64.0 |
| Expansion Slot Type | QSFP56 |
| Network & Communication | |
| Layer Supported | 4 |
| Networking Standards | IEEE 802.1ab |
| Networking Standards | IEEE 802.1Qaz |
| Networking Standards | IEEE 802.1x |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.1Qbb |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.1p |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Compatible Rack Unit | 2U |
| Form Factor | DIN Rail Mountable |
| Form Factor | Rack-mountable |
| Height | 3.5" |
| Width | 16.9" |
| Depth | 22.3" |
| Miscellaneous | |
| Application/Usage | Business |
| Application/Usage | Industrial |
| Application/Usage | Data Center |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
