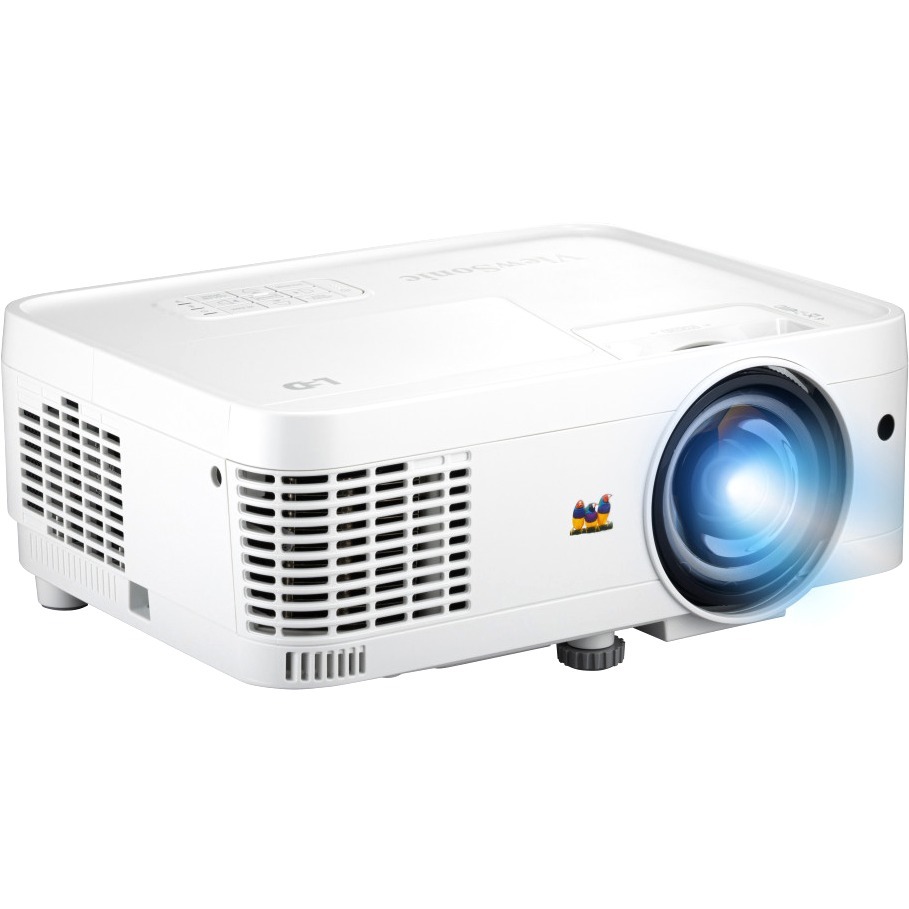

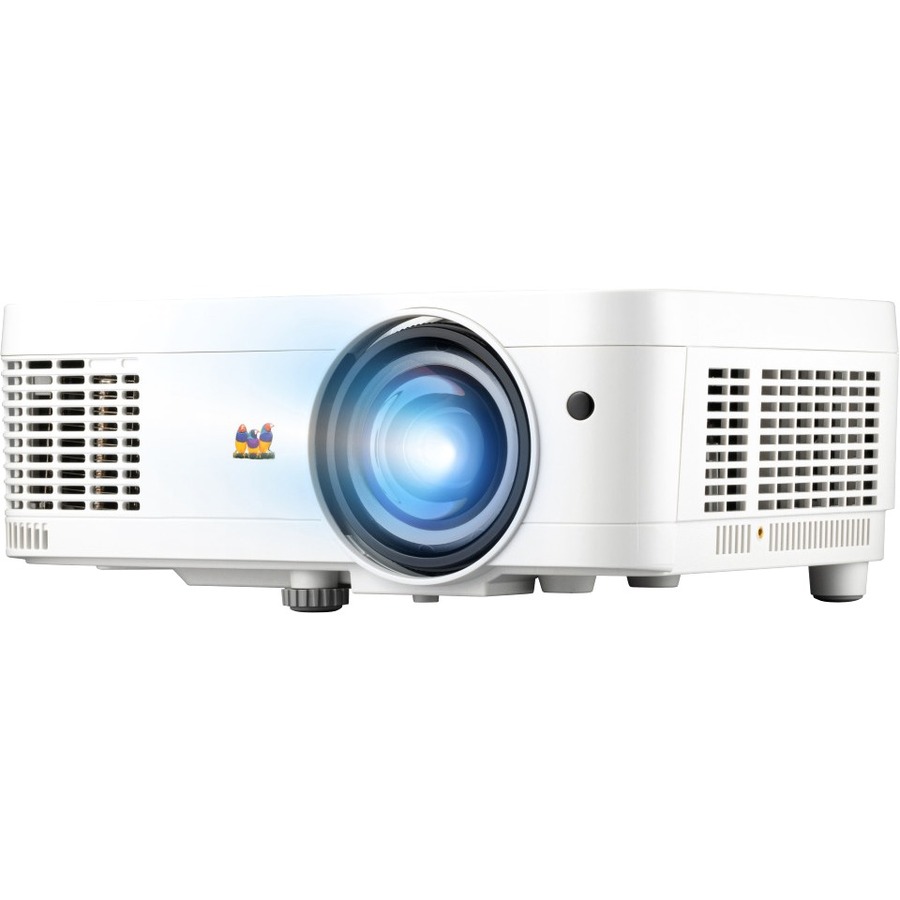

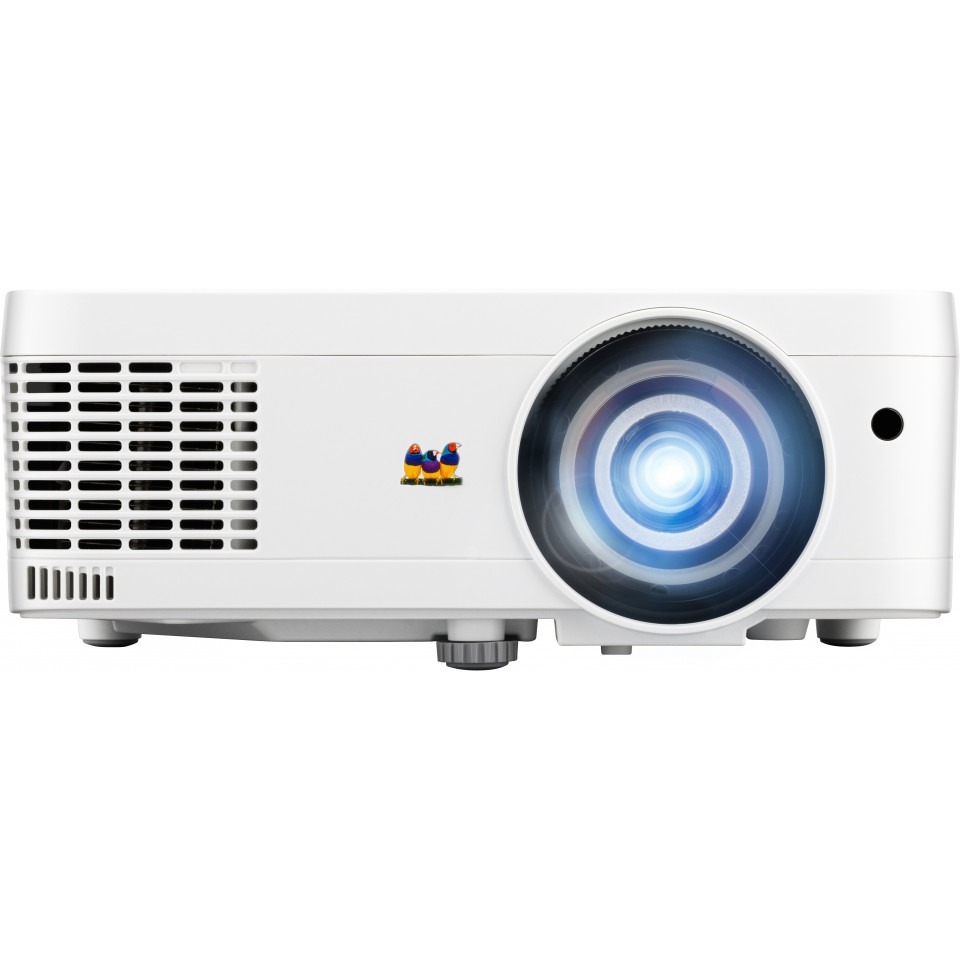

The ViewSonic LS560WH short throw projector is ideal for both education and enterprise environments. Powered by lamp-free LED technology, this high-brightness projector can produce 3,000 ANSI lumens so that images and presentations can be easily viewed in environments with strong ambient light. Treat your audience to spellbinding presentations with vivid colors thanks to a wide color gamut. An eco-friendly, lamp-free design reduces maintenance and dramatically lowers your total cost of ownership, while a 0.49 short throw lens can create a 100" screen from just 3.6 ft. away. Enjoy convenient features like instant power on/off, image correction, flexible setup and so much more. This projector comes equipped with comprehensive LAN control for compatibility with Crestron, AMX, Extron, PJ Link, ATEN and ViewSonic® vController systems.
Advanced LED Light Source
This projector uses the latest solid-state LED technology that is both mercury-free and lamp-free, offering a greener, filter-free projector solution. The LED light source provides over 60,000 hours of usage while consuming less than half the power of a typical LCD TV, thereby lowering your total cost of ownership.
Breathtaking Brightness in any Environment
Packed with 3,000 lumens of brightness, this projector produces bright images in any environment - with excellent performance in rooms with ambient light.
Lowers the Total Cost of Ownership
Designed for up to 30,000 hours of usage, this long-lasting, energy-efficient projector not only reduces your energy bills but also minimizes the need for frequent maintenance.
Large Images In Small Spaces
A short throw lens enables large images to be projected from short distances in small rooms. In addition, any blinding lights in front of the presenter, distracting shadows on the projected image, or glaring hotspots on the screen, are all eliminated because the projector's light source is closer to the projection surface.
Golf All Year Round
Enjoy the thrill of teeing off on world-famous courses without leaving home. From the iconic fairways of Pebble Beach to the challenging links of St. Andrews, our projectors deliver stunning visuals that transport you to the heart of the action.
Instant Power On for Instant Entertainment
Tired of staring at a blank screen while waiting for the display to power on? We eliminated the typically slow projector start time-this projector can be turned on in an instant just like a TV.
360-Degree Orientation
The projector can be installed in nearly any position, at any angle from floor to ceiling, making any surface a projection surface. Ideal for retail environments, the projector can be pointed straight down at the floor for creative marketing that leads your customers directly to your products.
Reliable 24/7 Operation
Featuring a long lifespan, this professional-grade projector is designed for reliable, continuous 24/7 use.
Sealed Optical Engine
An IP5X sealed optical engine prevents dust and moisture from entering the projector, ensuring impeccable image quality and a long, maintenance-free lifespan.
Horizontal and Vertical Keystone Correction
Horizontal and vertical keystone correction and a corner adjustment feature eliminate crooked and distorted images for a perfectly proportioned picture every time.
| General Information | |
| Manufacturer | ViewSonic Corporation |
| Manufacturer Part Number | LS560WH |
| Manufacturer Website Address | http://www.viewsonic.com |
| Brand Name | ViewSonic |
| Product Model | LS560WH |
| Product Name | LS560WH 3,000 ANSI Lumens WXGA Short Throw LED Projector |
| Product Type | DLP Projector |
| Technical Information | |
| Projection Method | Front |
| Projection Method | Ceiling |
| Display & Graphics | |
| Native Resolution | 1280 x 800 |
| Maximum Resolution | 1920 x 1080 |
| Native Aspect Ratio | 16:10 |
| Graphic Mode | WXGA |
| Projection Lens | |
| Throw Type | Short Throw |
| Maximum Focal Length | 6.90 mm |
| Minimum Diagonal Image Size | 30" |
| Maximum Diagonal Image Size | 25 ft |
| Minimum Projection Distance | 24.80" |
| Maximum Projection Distance | 62.20" |
| Lamp | |
| Number of Lamps | 1 |
| Lamp Type | LED RGB |
| Normal Mode Lamp Life | 30000 Hour |
| Image | |
| Standard Mode Brightness | 3000 lm |
| Color Supported | 1.07 Billion Colors |
| Contrast Ratio | 3,000,000:1 |
| Minimum Vertical Sync | 23 Hz |
| Maximum Vertical Sync | 120 Hz |
| Video | |
| Video Signal Standard | HDTV |
| Output Scan Format | 1080p |
| Audio | |
| Speaker Included | Yes |

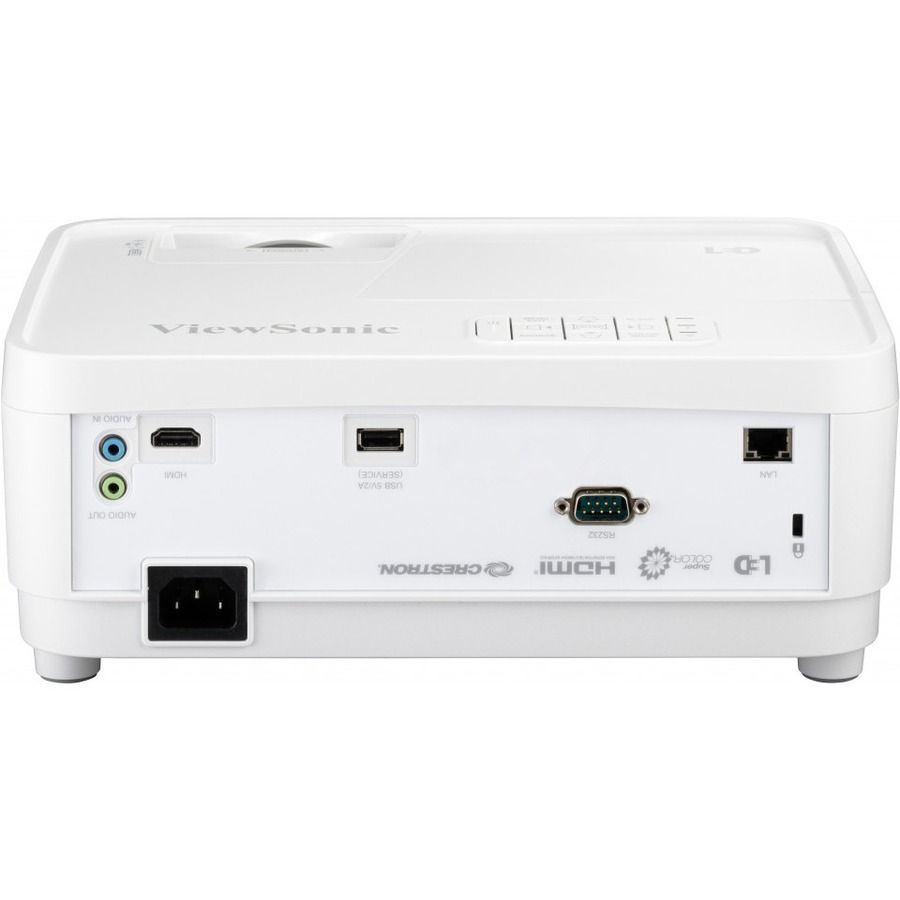

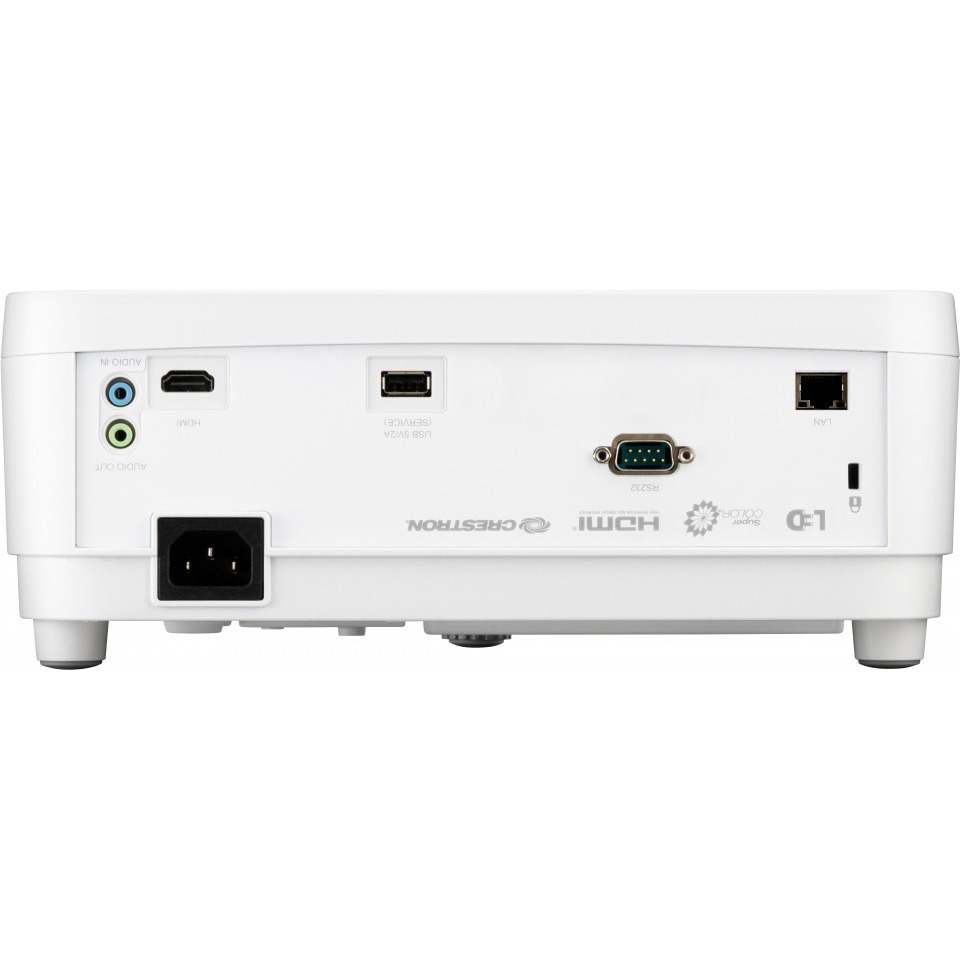

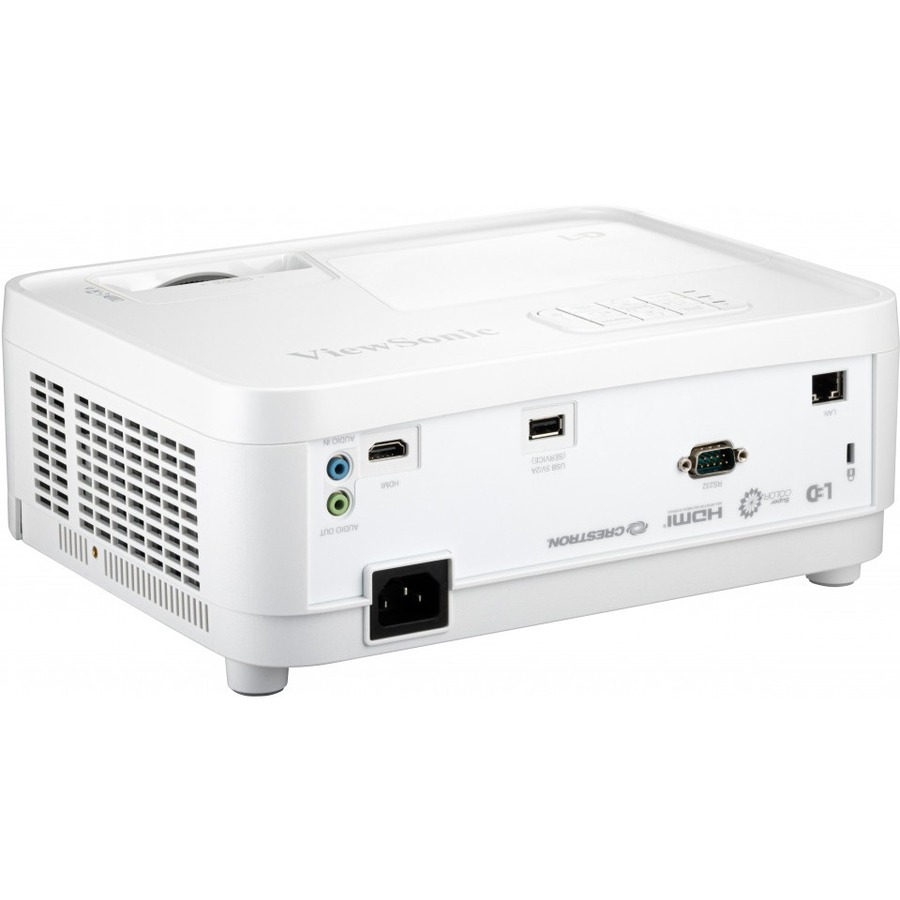

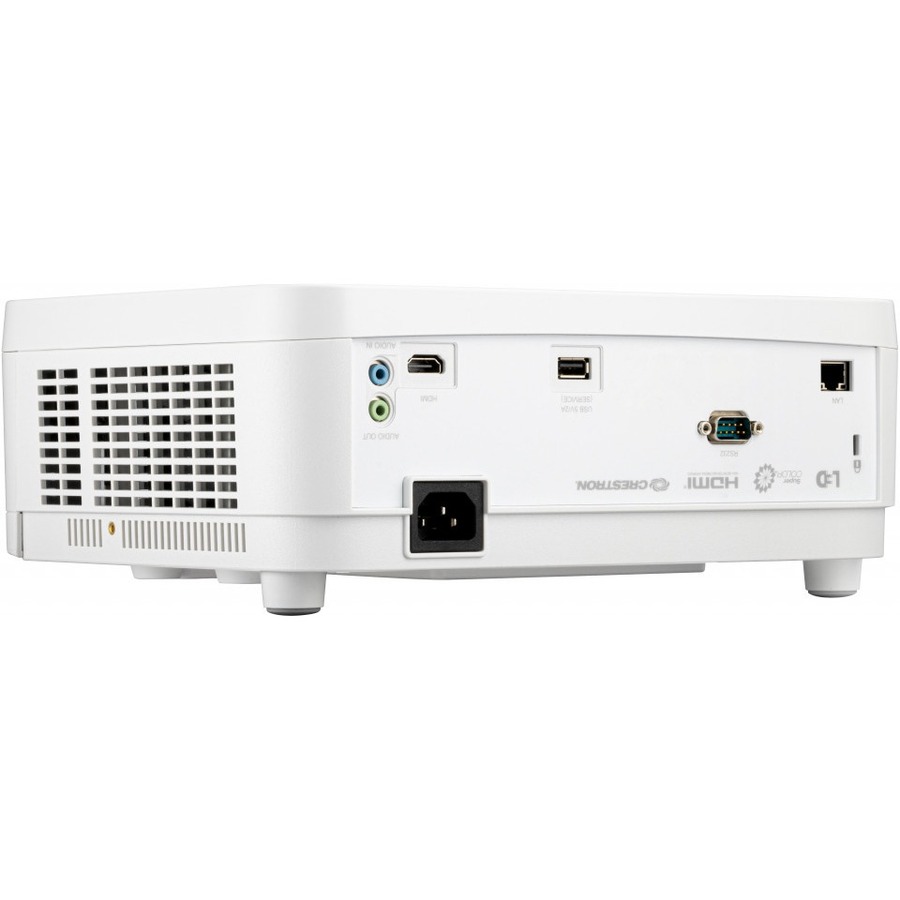

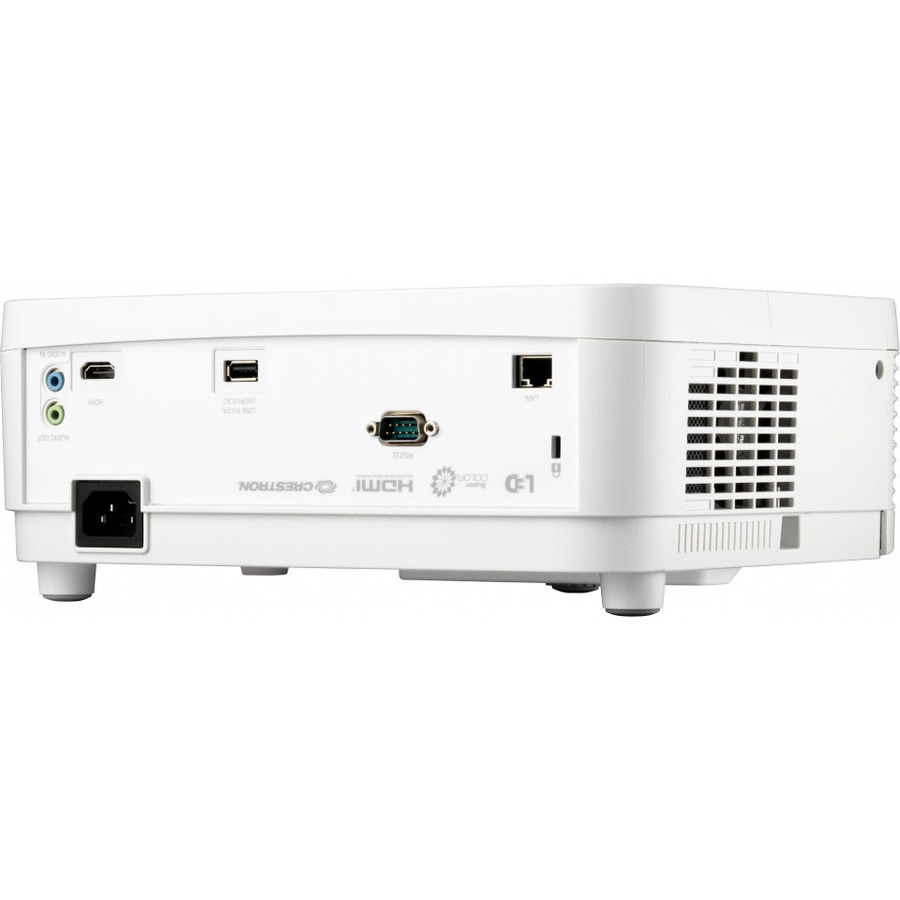

| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Voltage Frequency | 60 Hz |
| Operating Power Consumption | 229 W |
| Physical Characteristics | |
| Product Color | White |
| Color Family | White |
| Form Factor | Wall Mountable |
| Form Factor | Ceiling Mountable |
| Form Factor | Floor Mountable |
| Height | 4.5" |
| Width | 11.5" |
| Depth | 8.7" |
| Weight (Approximate) | 13.67 lb |
| Miscellaneous | |
| Application/Usage | Education |
| Application/Usage | Business |
| Application/Usage | Presentation |
| Application/Usage | Class Room |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Warranty: Three-year limited warranty on parts and labor, 1-year limited warranty on the light source, 1st year free Express Exchange® service. (One year Express Exchange Service requires product registration). |
