QUADRO PERFORMANCE AND FEATURES IN AN EMBEDDED MXM FORM FACTOR
The NVIDIA Quadro P5000, P3000 and P1000 MXM modules offer professional Quadro performance, features, SDK and API support, exacting build standards, rigorous quality assurance, and broad ISV application compatibility.
Designed for the needs of embedded, ruggedized, or mobile system builders, these products make Quadro Pascal architecture graphics and compute capabilities available to form factors unsited for traditional PCI Express expansion cards, tolerate wide ranging thermal and other environmental conditions, are ideal for blade or other deployments where high GPU density is an important consideration, offer GPU memory capacity options, extremely reasonable power requirements, and feature flexible display output options.
Whether you're developing revolutionary products ranging from advanced medical imaging to sophisticated signal processing, or breakthrough machine/deep learning technology, even mission- critical defense systems, MXM gives you the performance to expand the boundaries of the possible.
General Information | |
Manufacturer | PNY Technologies |
Manufacturer Part Number | QRTX3000-KIT |
Manufacturer Website Address | http://www.pny.com |
Brand Name | PNY |

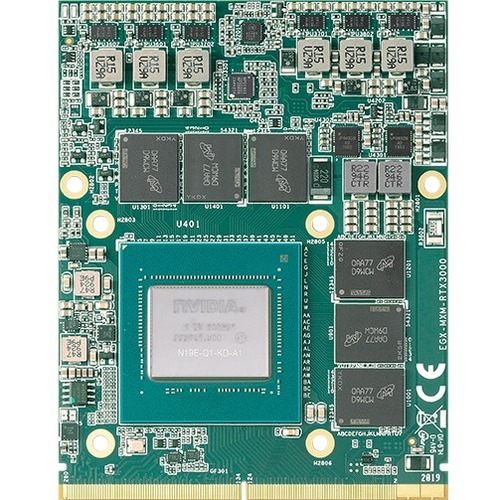

Product Name | Quadro RTX 3000 MXM Graphic Card |
Product Type | Graphic Card |
Technical Information | |
API Supported | OpenCL |
API Supported | DirectCompute |
API Supported | OpenGL 4.6 |
API Supported | Vulkan 1.1 |
API Supported | DirectX 12 |
Processor & Chipset | |
Chipset Manufacturer | NVIDIA |
Chipset Line | Quadro |
Chipset Series | RTX |
Chipset Model | RTX 3000 MXM |
Memory | |
Standard Memory | 6 GB |
Memory Technology | GDDR6 |
Bus Width | 192 bit |
Interfaces/Ports | |
Host Interface | MXM 3.1 |
Host Interface Connector Type | Type-B |
Power Description | |
Power Supply Wattage | 80 W |
Physical Characteristics | |
Width | 3.2" |
Length | 4.1" |
Miscellaneous | |
Platform Supported | PC |
Platform Supported | Linux |
Environmentally Friendly | Yes |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Warranty | |
Limited Warranty | 2 Year |
