SEAGATE

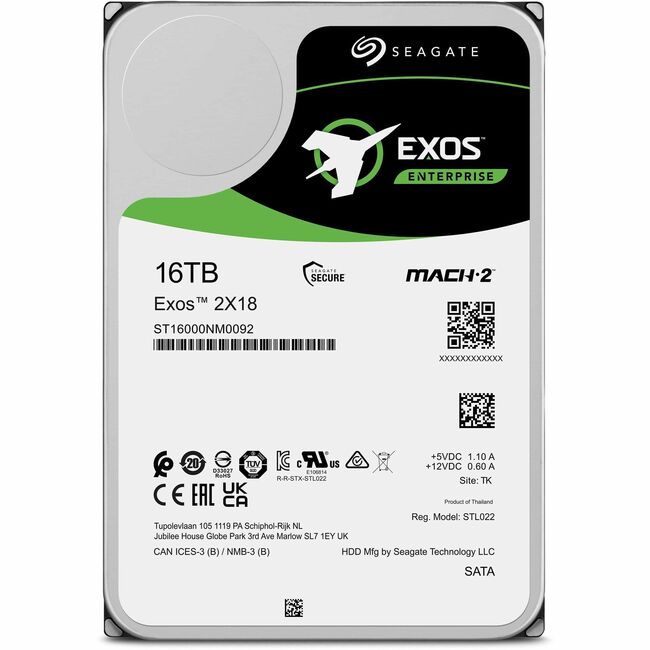

Seagate HD ST16000NM0092 Exos 2X18 16TB 3.5 SATA 512E 4KN 7200RPM 256M Bare
Mfg Part Number: ST16000NM0092 , Item #: 4794260
, PO and Wire.
Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the highest-performing hard drive in the Seagate® X class, the Exos® 2X18 enterprise dualactuator hard drive utilises MACH.2™ technology enabling up to 2× the performance of an enterprise single-actuator 3.5-inch hard drive.
Highest Performance for Highest Rack Space Efficiency
MACH.2 technology enables up to 2× the performance of an enterprise singleactuator 3.5-inch hard drive
Highest 18 TB hard drive performance, making it the logical choice for cloud data centre and massive scale-out data centre applications. Available as two independently addressable, 9 TB logical units for SAS or one 18 TB logical device for SATA
PowerBalance™ feature optimises IOPS/Watt
Helium sealed-drive design delivers lower total cost of ownership through lower power and weight
Next-generation helium side-sealed weld technology for added handling robustness and leak protection
Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF rating
| General Information | |
| Manufacturer | Seagate Technology |
| Manufacturer Part Number | ST16000NM0092 |
| Manufacturer Website Address | http://www.seagate.com |
| Brand Name | Seagate |
| Product Line | Exos |
| Product Series | 2X18 |
| Product Model | ST16000NM0092 |
| Product Name | Exos 2X18 ST16000NM0092 Hard Drive |
| Product Type | Hard Drive |
| Technical Information | |
| Storage Capacity | 16 TB |
| Disk Format | 512e/4Kn |
| Drive Performance | |
| Random 4KB Read | 304IOPS |
| Random 4KB Write | 560IOPS |
| Spindle Speed (rpm) | 7200 |
| Buffer | 256 MB |
| Interfaces/Ports | |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Physical Characteristics | |
| Drive Type | Internal |
| Hot Pluggable | Yes |
| Height | 1" |
| Width | 4" |
| Depth | 5.8" |
| Weight (Approximate) | 1.47 lb |
| Miscellaneous | |
| Device Supported | Storage Array |
| Warranty | |
| Limited Warranty | 5 Year |
