HANWHA TECHWIN

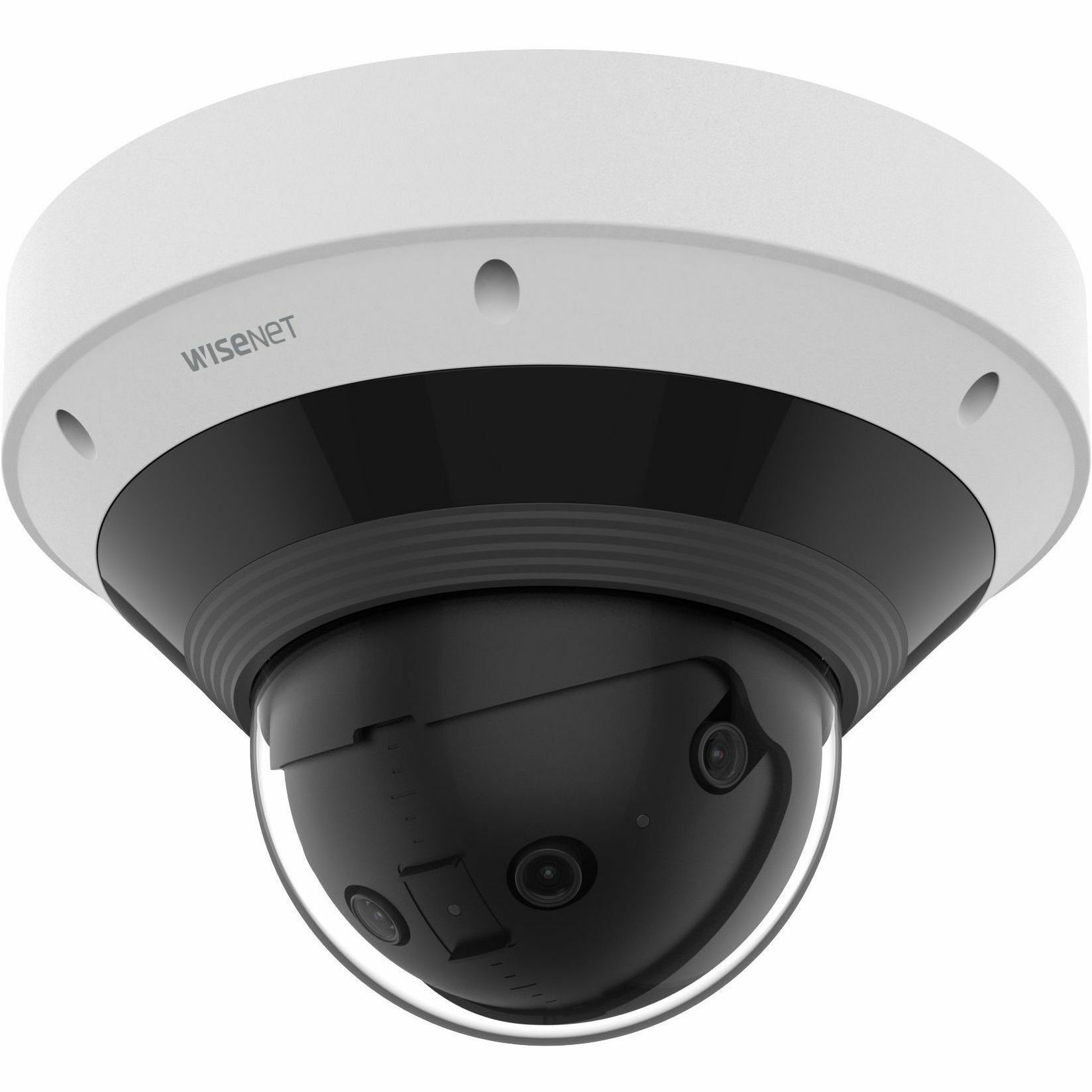

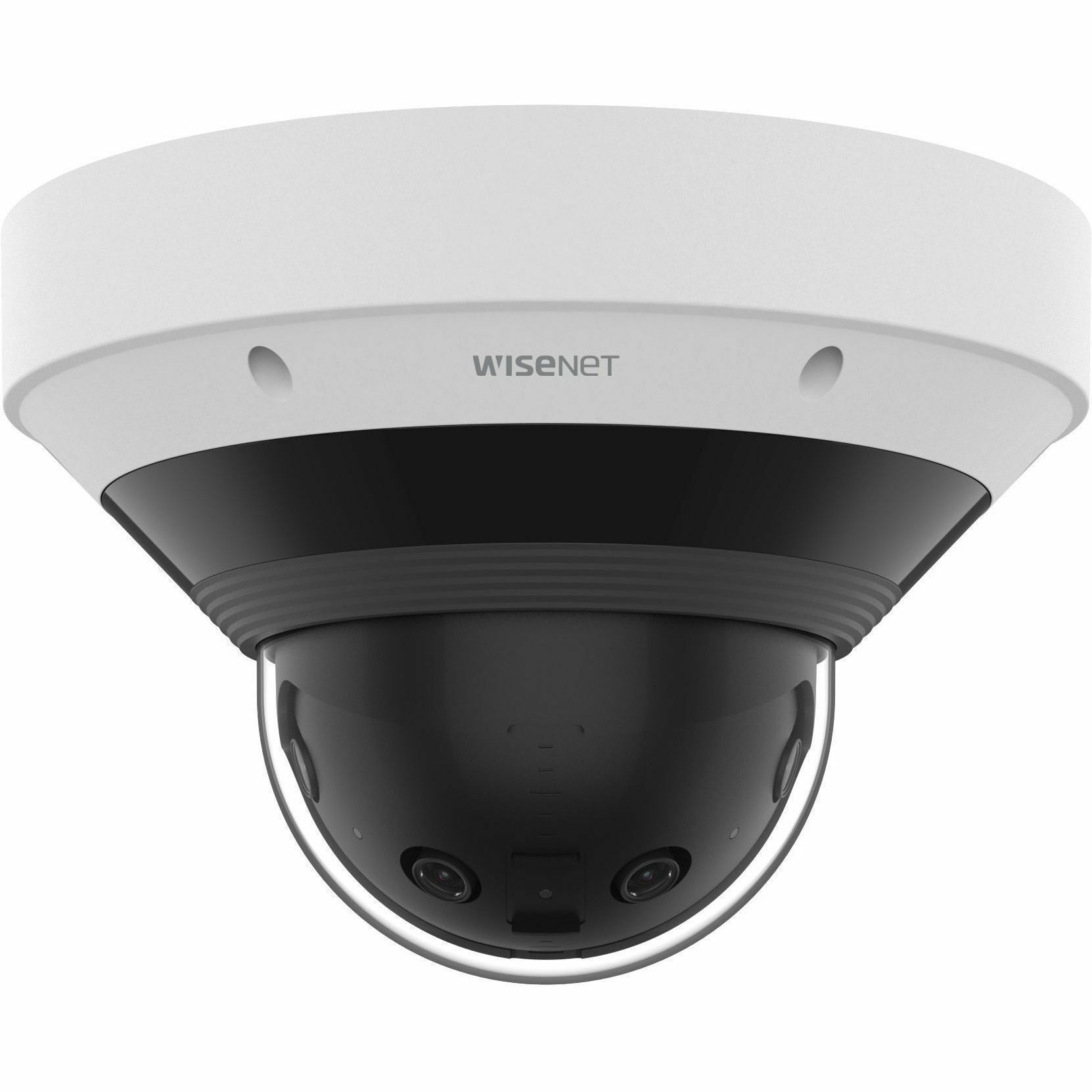

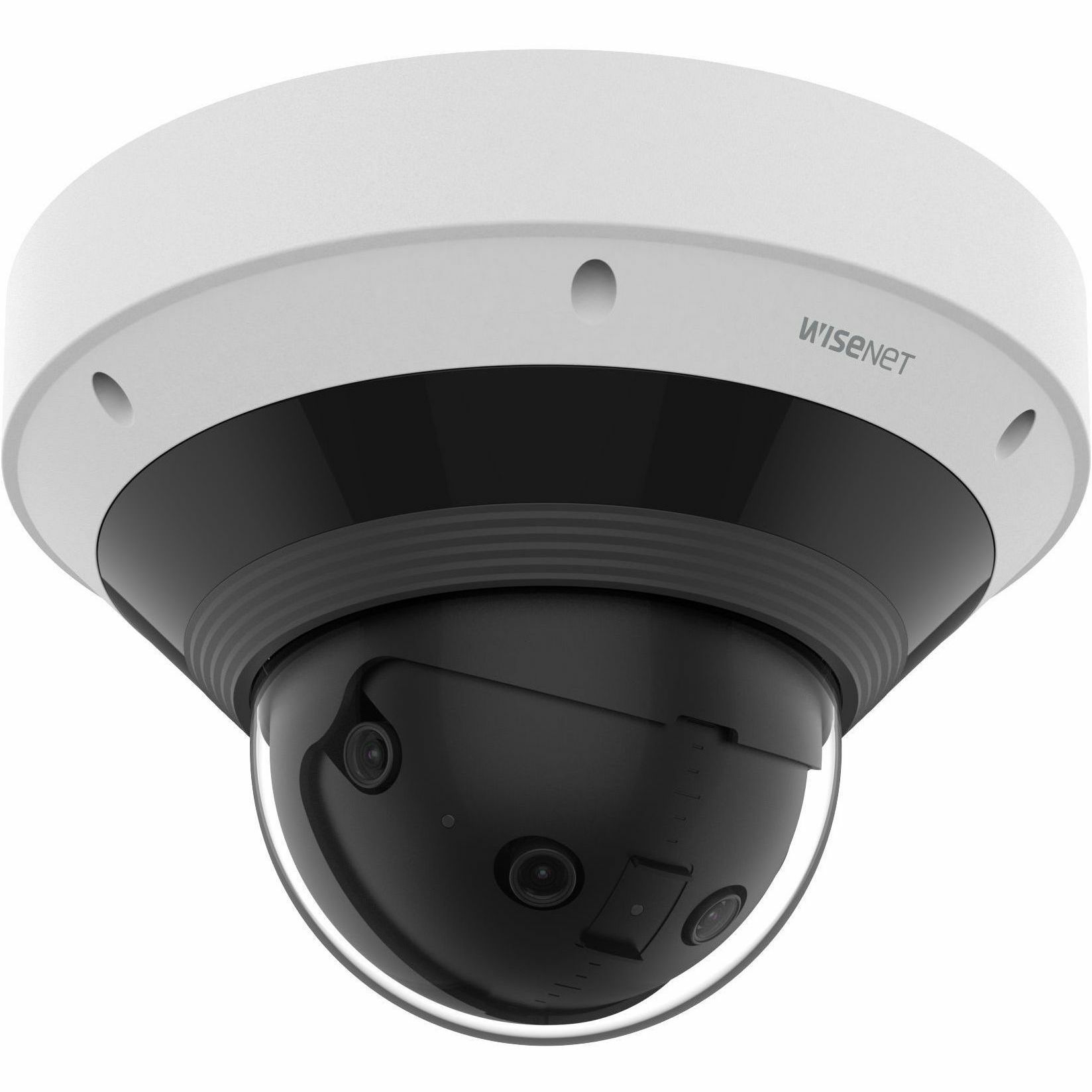

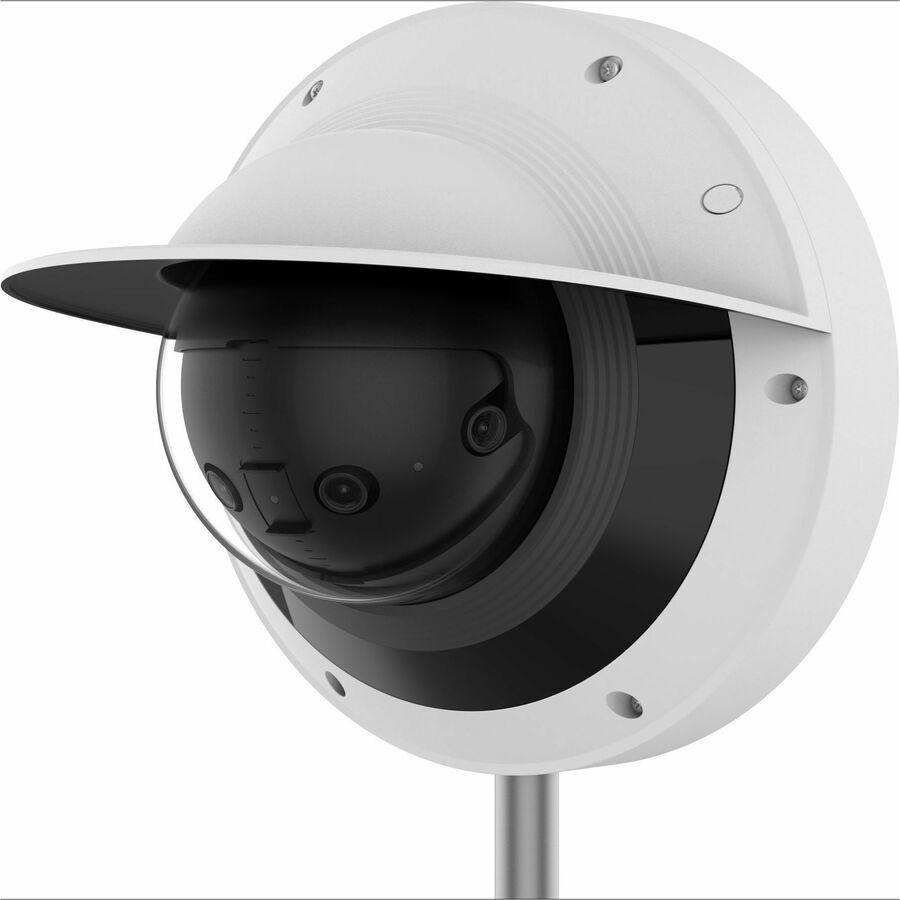

HANWHA TECHWIN PNM-C9022RV 8MP Panoramic Camera with AI and IR - Panoramic Multi-sensor camera FoV: H209 V:60 8MP @ 20fps Alpha Blending triple codec H.265/H.264/MJPEG with WiseStream III technology extreme WDR 120dB Wise NR II IR viewable length 65ft. (20m)
Mfg Part Number: PNM-C9022RV , Item #: 4793556
Image may not reflect the actual item.
Price: $1,595.40
+ Free Shipping
Quantity:
In Stock: 1
Last Updated: Nov 25, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | PNMC9022RV |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | P |
| Product Model | PNM-C9022RV |
| Product Name | 8MP AI IR Panoramic Camera |
| Product Type | Network Camera |
| Technical Information | |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Field of View | H: 209°, V: 60° |
| Effective Camera Resolution | 8 Megapixel |
| Number of Sensors | 4 |
| Video | |
| Video Formats | H.265H |
| Video Formats | MJPEG |
| Video Formats | H.265B |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Video Formats | H.265M |
| Video Formats | H.264H |
| Video Formats | H.264B |
| Video Formats | H.264M |
| Maximum Video Resolution | 5120 x 1568 |
| Maximum Frame Rate | 20 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.80 mm |
| Lens Included | Yes |
| Maximum Aperture | f/2.0 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Solid State Drive Capacity | 512 GB |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | PoE+ |
| Power Source Type | DC |
| Physical Characteristics | |
| Form Factor | Dome |
| Color Family | White |
| Product Color | White |
| Diameter | 10" |
| Weight (Approximate) | 6.39 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Motion Detection |
| Features | Wide Dynamic Range |
| Features | Vehicle Detection |
| Features | Day/Night |
| Features | Noise Reduction |
| Features | Human Detection |
| Features | Back Light Compensation (BLC) |
| Features | Gain Control |
| Features | Audio Detection |
| Features | Tamper Detection |
| Features | Video Content Analytics |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
