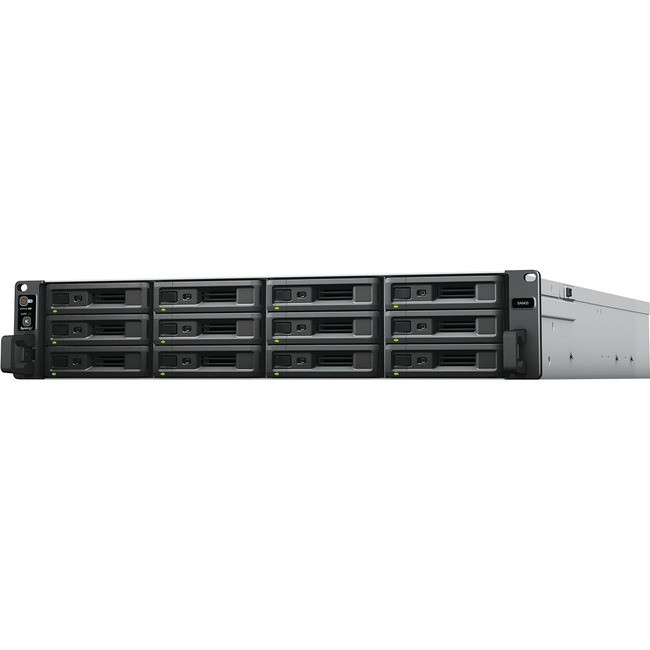

SA6400 | Handle growing data storage demands with ease
Highly scalable storage for enterprise and studios
The 12-bay Synology SA6400 is designed for rapid data scaling. With support for up to 108 drives after expansion, this unit is ideal for enterprise data centers, large production studios, and growing businesses in the retail and hospitality sectors looking to tackle data-intensive projects while leaving room for future expansion.
Scalability
Up to 1.9 PB with 8 x RX1223RP expansion units
CPU
Over 6,500/4,000 MB/s sequential read/write
Networking
Optional 25/40GbE or Fibre Channel connectivity
On-demand storage expansion
The SA6400 scales up flexibly whenever you data demands do. Accommodate up to 9 times the original capacity by adding 12-bay RX1223RP expansion units as your deployment grows.
Built for high reliability
The SA6400 is designed with built-in redundancies to keep mission-critical services running, even when disaster strikes.
Out-of-band (OOB) management
Remotely power on/off, force restart, and reset your server, or view real-time and historical DSM system logs, even while the device is powered off or the primary network is down, using the dedicated out-of-band management console.
Redundant power supply
Reduce the possibility of power disruptions on a single distribution channel or power distribution unit adversely impacting data and service availability with redundant PSUs.
Failover cluster
Combine two SA6400 units into a high-availability cluster with Synology High Availability to achieve full hardware and data redundancy. Minute-level failover minimizes data loss and downtime in the event of server failure, or while performing system updates or upgrades.
Advanced networking options
The SA6400 has the flexibility to accommodate different operating environments.
Built-in fast connectivity
Two 10GbE RJ-45 ports provide rapid transfer speeds right out of the box.
Configurable networking options
Add up to 2 extra 10GbE SFP+/RJ-45, 25GbE SFP28, or Fibre Channel ports in varying configurations.
Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Versatile data storage and business application platform
Provide easy access to business data, consolidate digital assets, or host cost-efficient business solutions.
| General Information | |
| Manufacturer | Synology, Inc |
| Manufacturer Part Number | SA6400 |
| Manufacturer Website Address | http://www.synology.com |
| Brand Name | Synology |
| Product Model | SA6400 |
| Product Name | SA6400 NAS Storage System |
| Packaged Quantity | 1 |
| Product Type | NAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 12 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 12 |
| Number of Solid State Drive Installed | 0 |
| Processor & Chipset | |
| Number of Processors Installed | 1 |
| Processor Type | EPYC |
| Processor Model | 7272 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 2.90 GHz |
| Memory | |
| Standard Memory | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Number of 2.5"/3.5" Bays | 12 |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Controllers | |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, Basic, JBOD, RAID F1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 6 |
| Software | |
| Operating System | DiskStation Manager |
| Management & Protocols | |
| Protocols | NFSv4 |
| Protocols | NFSv4.1 |
| Protocols | LDAP |
| Protocols | SMB |
| Protocols | HTTP |
| Protocols | iSCSI |
| Protocols | SMB 2.0 |
| Protocols | FTP |
| Protocols | SNMP |
| Protocols | CalDAV |
| Protocols | HTTPS |
| Protocols | NFSv3 |
| Protocols | WEBDAV |
| Protocols | SMB 3.0 |
| Protocols | CIFS/SMB |
| Protocols | AFP |
| Protocols | NFS |
| Power Description | |
| Maximum Power Supply Wattage | 550 W |
| Physical Characteristics | |
| Height | 3.5" |
| Width | 19" |
| Depth | 28.5" |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Weight (Approximate) | 36.38 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | The SA6400 is backed by Synology's 5-year limited warranty. |
