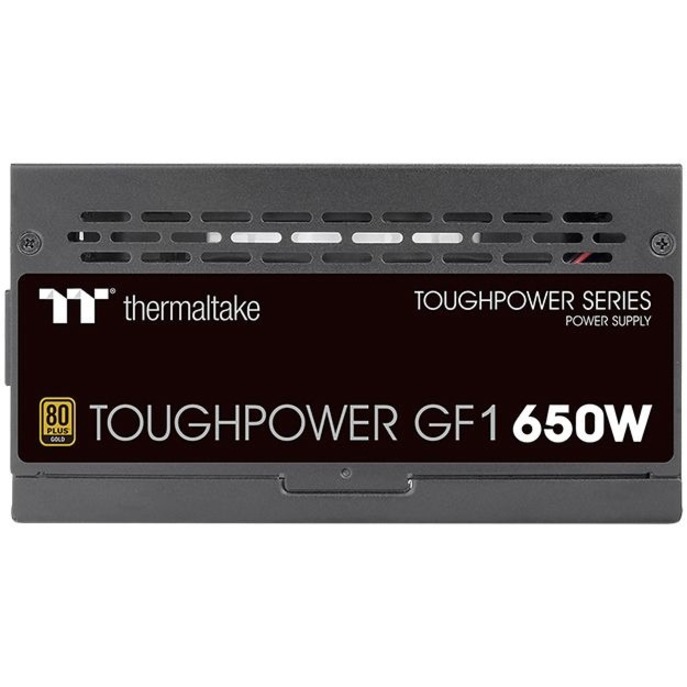

THERMALTAKE PS-TPD-0650FNFAGU-1 Toughpower GF1 650W *** Open Box Item ***

The fully modular Toughpower GF1 series is available in 650W - 850W models and built to deliver 80 PLUS Gold efficiency. The series features a 140mm hydraulic bearing fan, Japanese capacitors and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C, while near silent operation and reliable performance are guaranteed. With an ample 10-year warranty, the Toughpower GF1 is able to satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.

Zero Cable Platform

Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

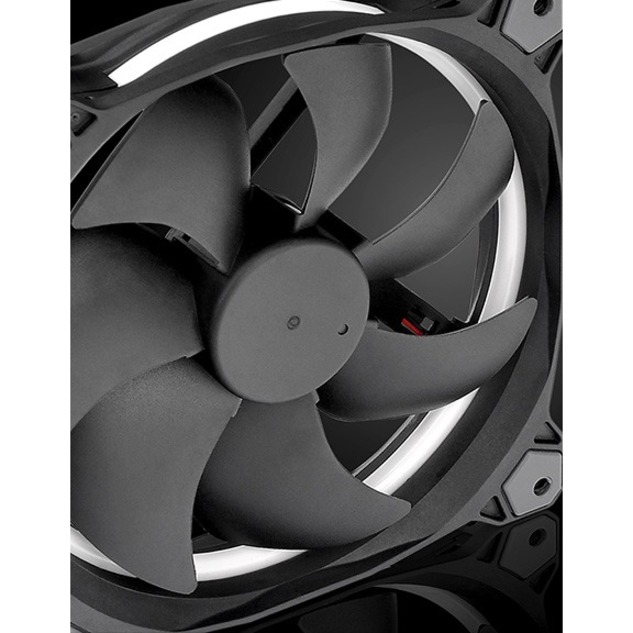

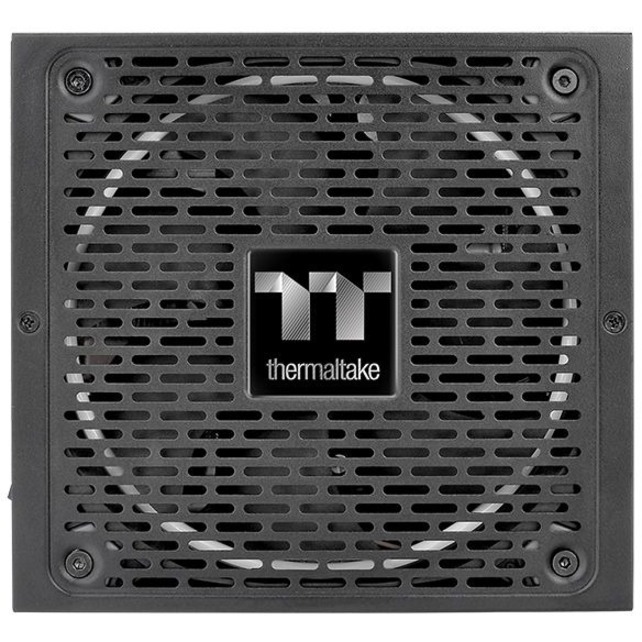

Ultra Quiet 140mm Hydraulic Bearing Fan

Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

?30mV Low Ripple Noise

All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

Extremely Strict Voltage Regulation ?±2%

The voltage regulation, more strict than Intel's standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.

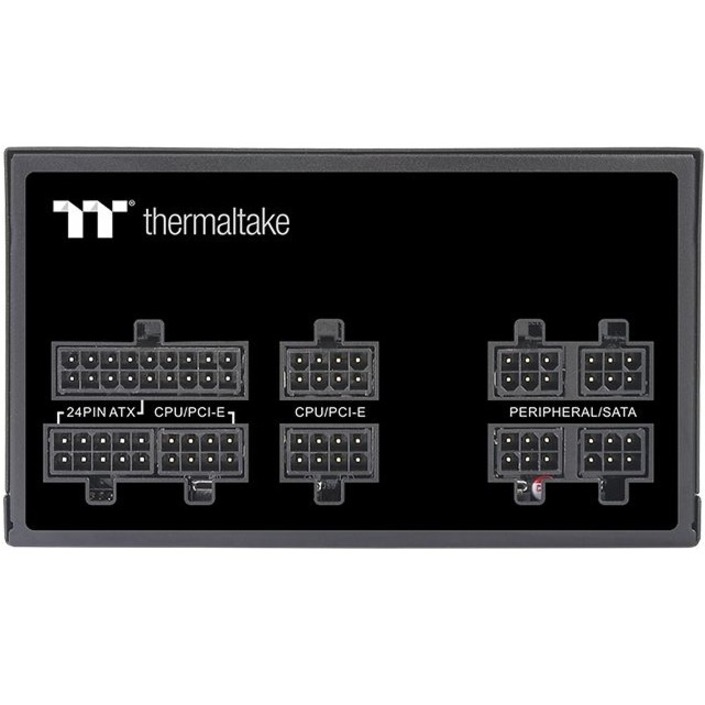

Fully Modular Low-Profile Flat Cable

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

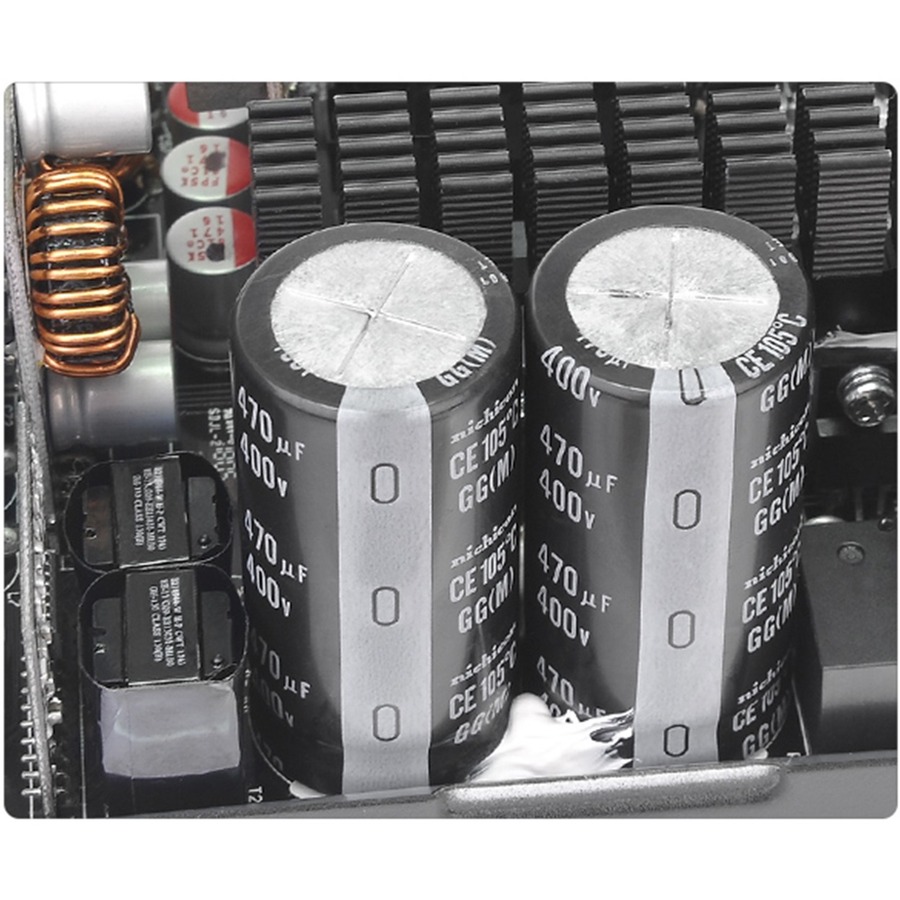

Premium Japanese 105°C/221°F Capacitors

Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail

Powerful single +12V rail ensures a stable and reliable supply to other PC components.

80 PLUS Gold Certified and Intel C6/C7 States Ready

Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.

Specifications

• Mfr Part Number: PS-TPD-0650FNFAGU-1
• MAX. OUTPUT CAPACITY : 650W

• PEAK OUTPUT CAPACITY : 780W

• COLOR : Black

• DIMENSION ( W / H / D ) : 150mm(W) x 86mm(H) x 160mm(D)

• PFC (POWER FACTOR CORRECTION) : Active PFC

• POWER GOOD SIGNAL : 100-500 msec

• HOLD UP TIME : > 16msec at 100% of full load

• INPUT CURRENT : 10A

• INPUT FREQUENCY RANGE : 50Hz - 60HzINPUT VOLTAGE : 100V – 240V~

• OPERATING TEMPERATURE : 0°C to + 50°C
• OPERATING HUMIDITY : 20% to 90%,non- condensing

• STORAGE TEMPERATURE : -20°C to + 70°C

• STORAGE HUMIDITY : 5% to 95%, non-condensing

• COOLING SYSTEM : 14cm hydraulic bearing fan

• EFFICIENCY : Meet 80 PLUS®Gold at 115Vac input.

• MTBF : 120,000 hrs minimum

• SAFETY APPROVAL : CE/cTUVus/TÃœV SÃœD/FCC/BSMI/EAC

• PCI-E 6+2PIN : 4

• PROTECTION : OCP, OVP, UVP, OPP, SCP, OTP
