ADESSO
ADESSO NUSCAN4300B CONNECT THE SCANNER TO YOUR IOS/ANDROID DEVICE OR PC WITH EASE AND ENJOY SCANNIN
Mfg Part Number: NUSCAN4300B , Item #: 4789265
, PO and Wire.

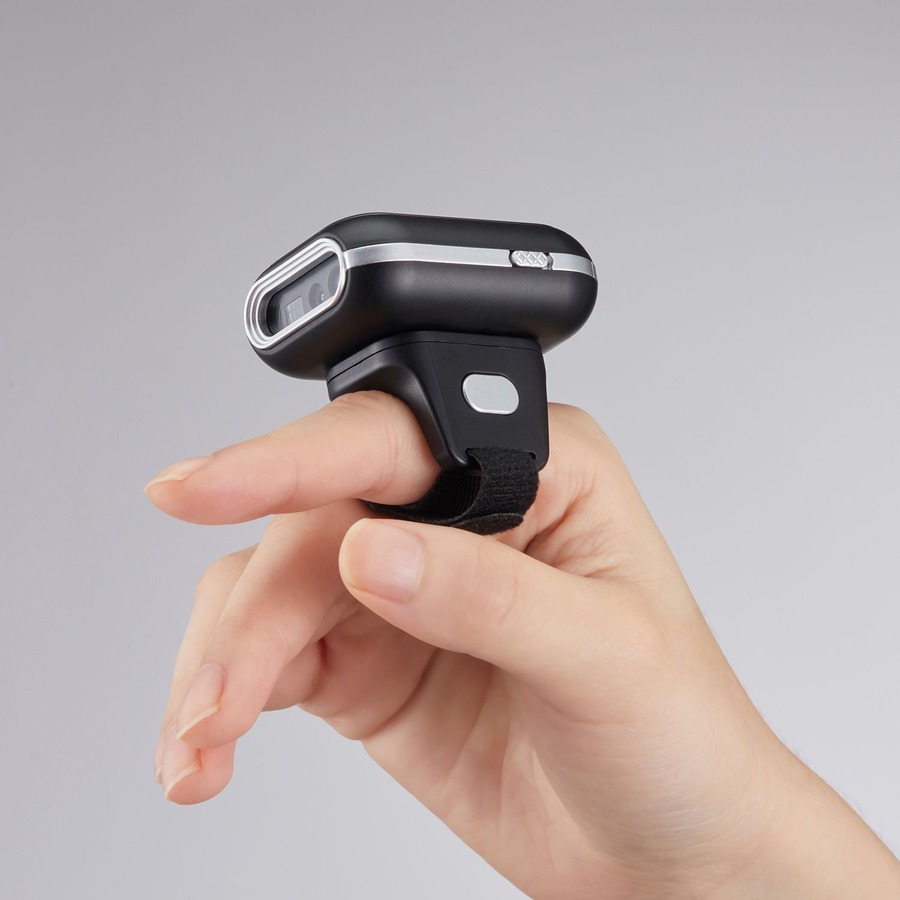

The Adesso Nuscan 4300B is a portable Bluetooth® 2D ring wearable barcode scanner, perfect for use in retail, warehouse, and distribution environments. Its compact ring design allows users to wear the scanner on their fingers, freeing up their hands for other tasks. With a 2D scanning engine, this scanner can quickly and accurately read all types of barcodes, including QR codes and Data Matrix codes. Its superior scanning performance and reliable data collection ensure that no barcode is missed. With drop protection and a long scanning range, this scanner is durable and can capture barcodes from a distance, reducing the need for manual scanning. Whether you need to scan barcodes on products, shelves, or inventory, the Adesso Nuscan 4300B is a versatile and efficient solution.
Bluetooth® Wireless Technology
Connect the scanner to your iOS/Android device or PC with ease and enjoy scanning barcodes wirelessly up to 50 feet away.
Portable Ring Design
Weighing at less than 3 ounces, the NuScan 4300B is extremely lightweight and portable, making it easily the perfect scanning solution wherever you go.
2D Scanning Engine
The 2D scanning engine offers decoding capability for 2D barcodes like PDF417, Data Matrix, QR Code, MicroQR as well as common 1D barcodes.
Superior Scanning Performance
Equipped with its CMOS sensor the device has a motion tolerance of 24 inches per second, offering fast and accurate scanning results.
Drop Protection
With its drop protection and rugged design, the NuScan 4300B can withstand accidental drops of up to 5 feet.
| General Information | |
| Manufacturer | Adesso, Inc |
| Manufacturer Part Number | NUSCAN4300B |
| Manufacturer Website Address | http://www.adesso.com |
| Brand Name | Adesso |
| Product Line | NuScan |
| Product Model | 4300B |
| Product Name | NuScan 4300B Bluetooth 2D Ring Wearable Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 2D |
| Scanning Capability | 1D |
| Barcode Symbology Supported | 1D:
2D:
|
| Light Source | LED |
| Image Sensor Type | CMOS |
| Scanner Range | Long Range |
| Scanning Distance | 12" |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 70° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 24 in/s |
| Maximum Ambient Light | 70000 lux |
| Drop Specification | With its drop protection and rugged design, the NuScan 4300B can withstand accidental drops of up to 5 feet. |
| Minimum Print Contrast | 30% |
| Image Sensor Resolution | 1280 x 800 |
| Network & Communication | |
| Bluetooth | Yes |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | 104°F (40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | Wearable |
| Height | 1" |
| Width | 1.9" |
| Length | 4.2" |
| Weight (Approximate) | 2.96 oz |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Retail |
| Application/Usage | Warehouse |
| Application/Usage | Industrial |
| Application/Usage | Library |
| Platform Supported | iOS |
| Platform Supported | Android |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
