TYAN

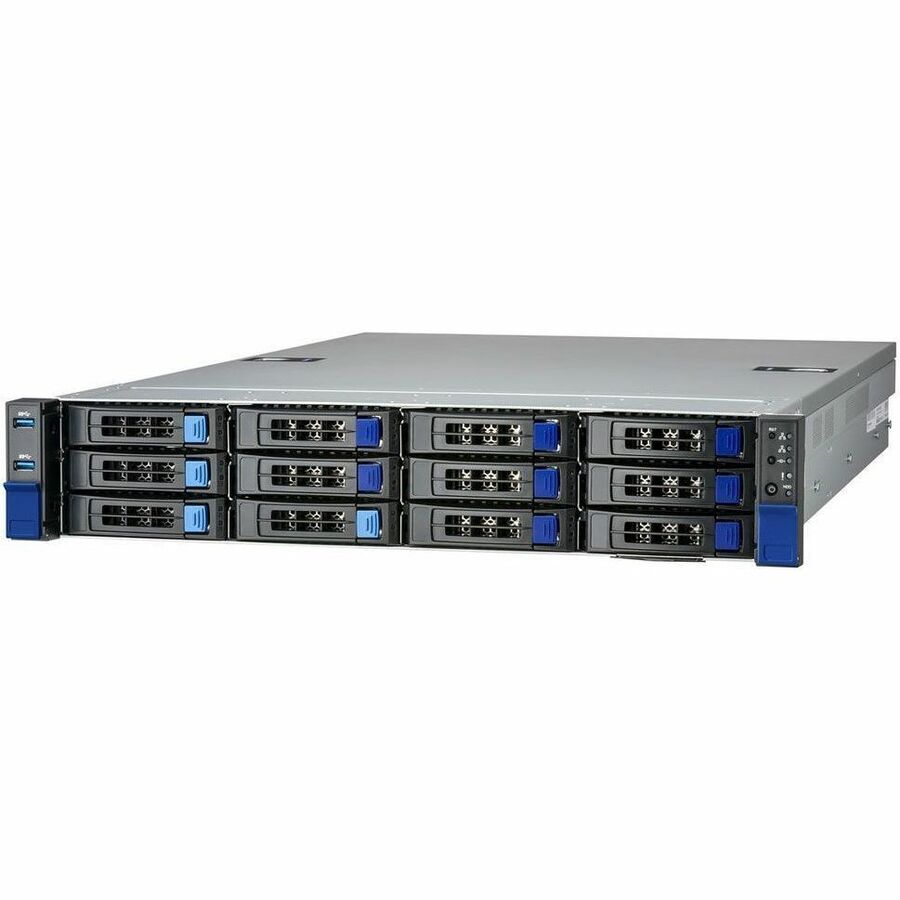

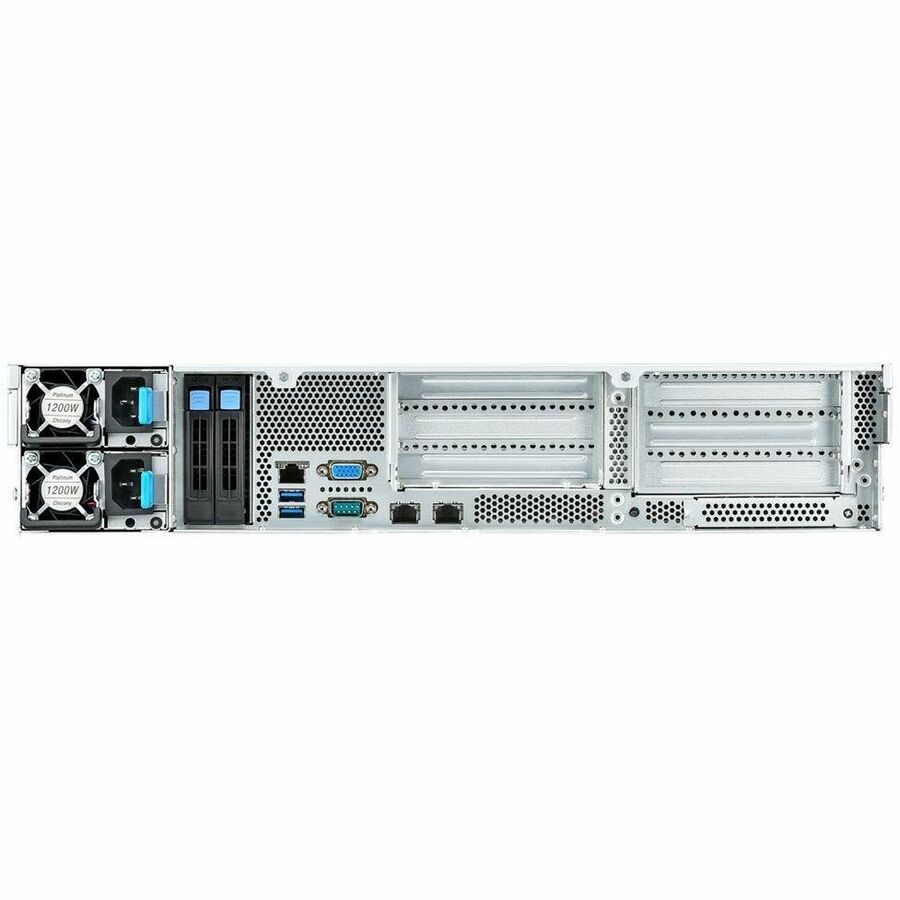

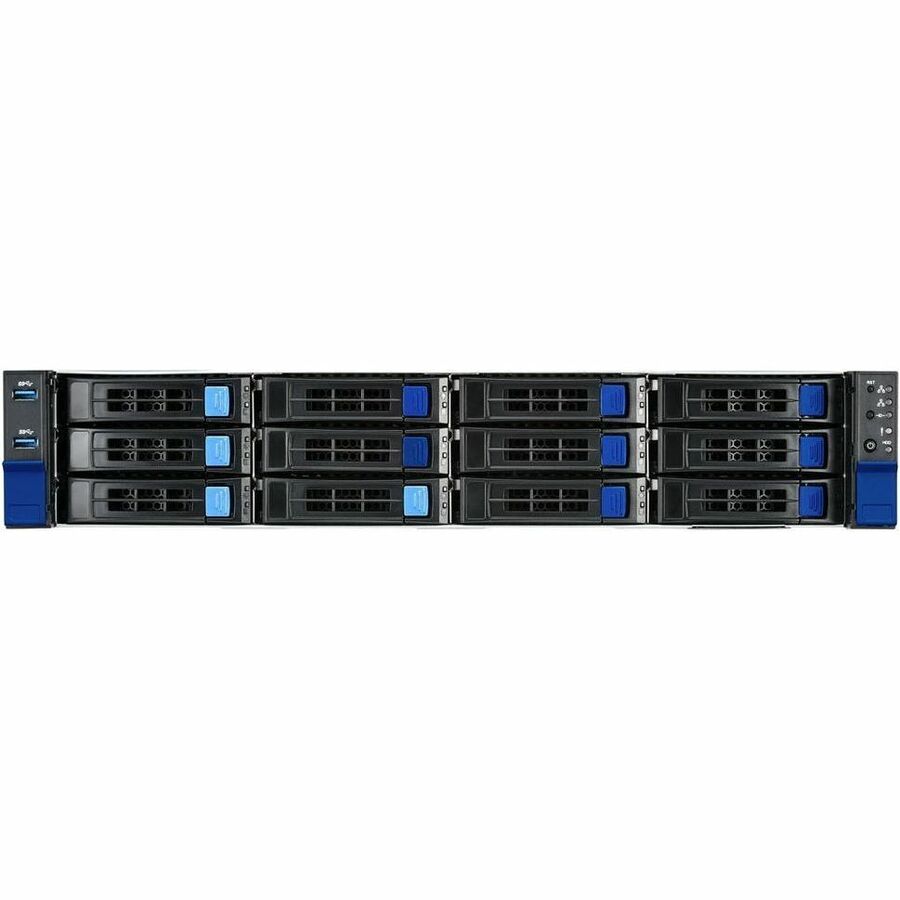

Tyan SV B8056T70V8E6HR-2T Transport SX TS70-B8056 2U1S Storage Server BrownBox
Mfg Part Number: B8056T70V8E6HR-2T , Item #: 4781104
Image may not reflect the actual item.
Price: $4,768.98
+ Free Shipping
Quantity:
In Stock: 2
Last Updated: Sep 29, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | B8056T70V8E6HR-2T |
| Manufacturer Website Address | http://www.tyan.com |
| Brand Name | Mitac |
| Product Line | Transport SX |
| Product Model | TS70B8056 |
| Product Name | Transport SX TS70B8056 Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket SP5 LGA-6096 |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 24 |
| Storage | |
| Supported Storage Drive Interfaces | PCI Express 4.0 x4 |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Types | SSD |
| Supported Storage Drive Types | HDD |
| Controllers | |
| Controller Type | NVMe |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 14 |
| Number of 3.5" Bays | 12 |
| Total Number of Expansion Slots | 6 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Ports | 6 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of SATA Interfaces | 2 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1200 W |
| Thermal Design Power | 400 W |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 17.3" |
| Depth | 27.6" |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 6 |
