TYAN

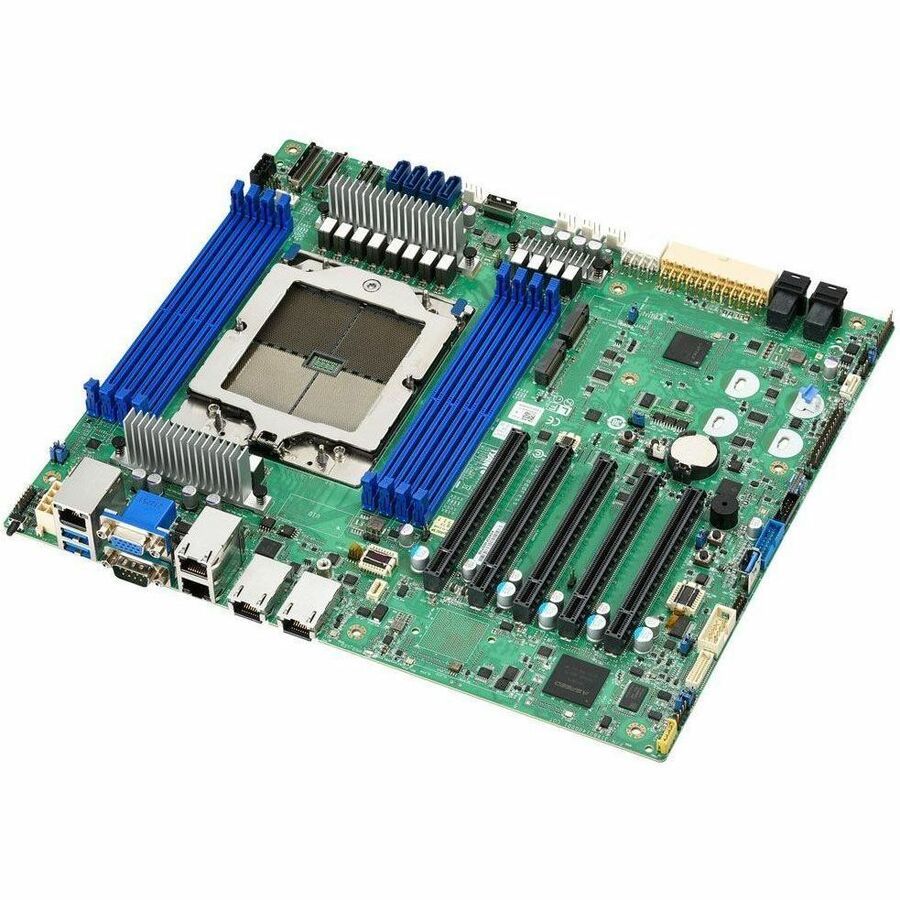

Tyan MB S8050GM4NE-2T AMD EPYC9004 Socket SP5 DDR5 Max2048GB PCIE CEB BrownBox
Mfg Part Number: S8050GM4NE-2T , Item #: 4781061
Image may not reflect the actual item.
Price: $1,181.68
+ Free Shipping
Quantity:
In Stock: 8
Last Updated: May 06, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | S8050GM4NE-2T |
| Manufacturer Website Address | http://www.tyan.com |
| Brand Name | Mitac |
| Product Model | S8050 |
| Product Name | Tomcat HX S8050 Server Motherboard |
| Packaged Quantity | 1 |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Total Processor Supported | 1 |
| Processor Socket | Socket SP5 LGA-6096 |
| Processor Generation Supported | 4th Gen |
| Processor Supported | EPYC |
| Memory | |
| Number of Memory Slots | 8 |
| Memory Form Factor | RDIMM |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4000 MHz |
| Memory Speed Supported | 4800 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | AST2600 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 5 |
| PCI Express Standard | PCI Express 5.0 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x16 Slots | 5 |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 5 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 12 |
| Number of M.2 Interfaces | 2 |
| Physical Characteristics | |
| Form Factor | SSI CEB |
| Width | 12" |
| Depth | 10.5" |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 6 |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
