Stylish Design with Industrial-Grade Performance and Efficiency.
Powerful Cooling Ability
METAL 120 PWM is a performance-oriented cooling fan and your top pick for every cooler system. MONTECH after relentless testing has created a cutting-edge high static pressure and airflow system which produce a pleasant noise, industrial performance, and efficiency.

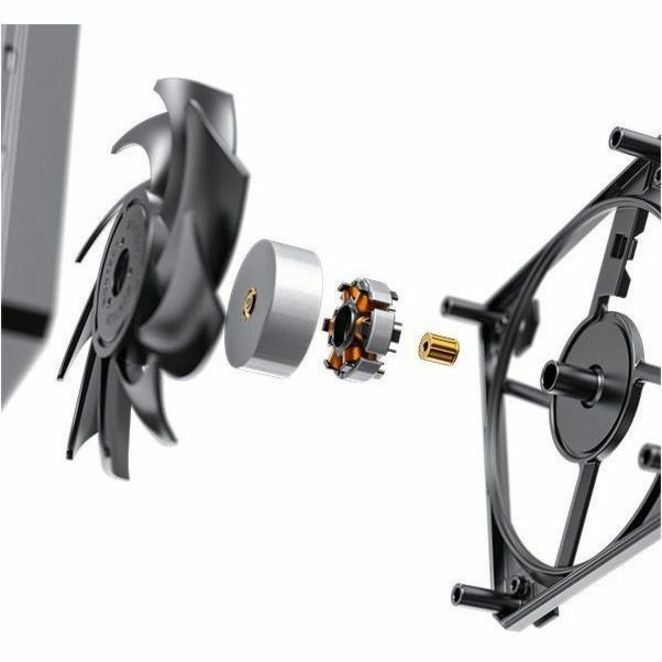

Strengthened Metal Bearing HUB
The durability and stability of METAL 120 PWM have been upgraded with a tailor-made metal shell, strengthened metal bearings, and a unique airfoil shaped design.

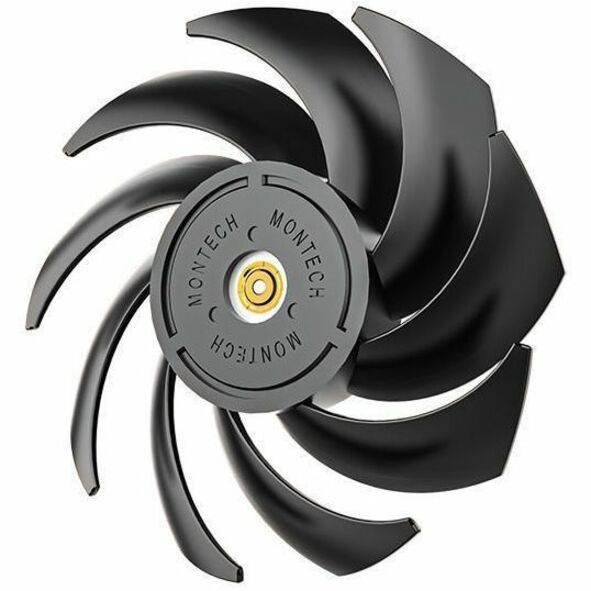

Unique Airfoil-Shaped Design
Every angle of the fan blades is calculated by our engineering team.
With the airfoil shape fan blades and its refined raw material, airflow has now become more stable causing the static pressure to become stronger.
Compatible with PWM Automatic Control Mode
Thanks to the advanced PWM technic, the temperature can be detected by motherboard, which allows the user to adjust the fan speed at will from 600RPM up to 2200 RPM and cool you PC efficiently.
Two-time Dynamic Balancing Test
Every METAL 120 PWM has undergone dynamic balancing tests twice to greatly reduce the vibration of the fan and improve the noise while spinning.
Innovative Craftsmanship

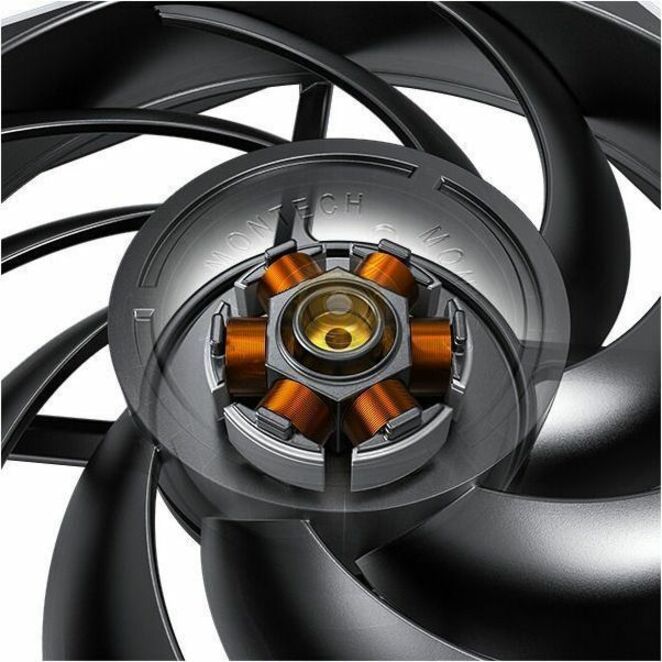

METAL 120 PWM adopts an industrial-grade 6-pole motor to efficiently lower the power consumption and stabilize the fan.
Shock-Proof Feature
Our Integrated 8 large anti-vibration pads, reduce vibration and the noise caused from resonance phenomena.
High-end HDB bearing
Compared to other hydraulic bearing fans, HDB bearing fan enables extremely long-life span of 40,000 hours. It has been proven to have longer durability, longevity, and is much quieter.
| General Information | |
| Manufacturer | Telon Co., Ltd. |
| Manufacturer Part Number | METAL 120 PWM |
| Manufacturer Website Address | https://www.telon.com.twc/ |
| Brand Name | MONTECH |
| Product Model | METAL 120 PWM |
| Product Name | METAL 120 PWM Cooling Fan |
| Product Type | Cooling Fan |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Hydro Dynamic Bearing |
| Fan Speed (Min) | 800 rpm |
| Fan Speed (Max) | 1950 rpm |
| Maximum Airflow | 69 CFM |
| Noise Levels (A-Weighted) | 26 dB(A) |
| Fan Life | 4.6 Year |
| Maximum Air Pressure | 2.82mmH2O |
| Interfaces/Ports | |
| Connectors | 4-pin PWM |
| Physical Characteristics | |
| Product Material | Metal |
| Maximum Fan Diameter | 4.72" |
| Fan Height | 0.98" |
| Fan Width | 4.72" |
| Weight (Approximate) | 5.57 oz |
| Miscellaneous | |
| Application/Usage | PC |
| Application/Usage | Motherboard |
| Application/Usage | CPU |
| Application/Usage | Case |
| Warranty | |
| Limited Warranty | 3 Year |
