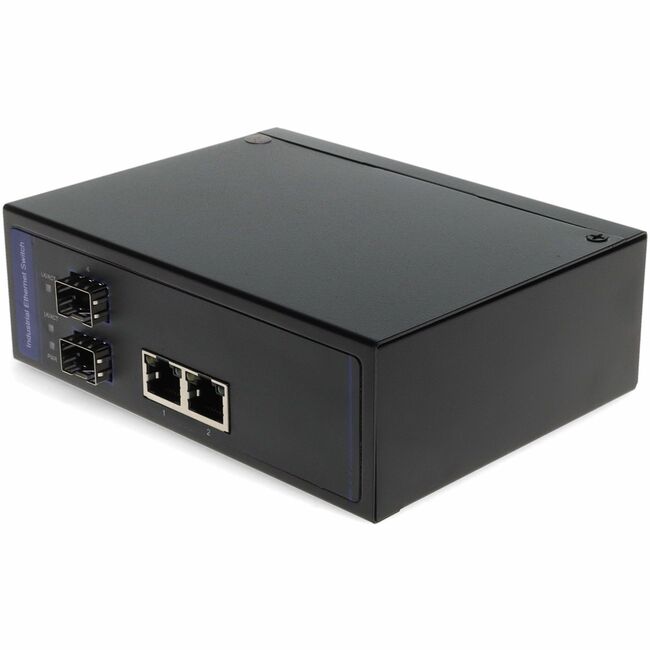

AddOn ADD-GMC-2RJ2SFP-POE+ 10/100/1000BASE-TX(RJ-45) X2 TO 2 OPEN SFP PORT POE+ (30W) MEDIA CONVERTE

This is a four port media converter that converts and supports two 10/100/1000Base-TX(RJ-45) to two 1000Base-X via an open SFP port connectors. The open SFP ports allow users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from two 10/100/1000Base-TX(RJ-45) to two 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. The two 10/100/1000Mbps UTP RJ-45 ports support full duplex 10/100/1000Mbps connectivity (half duplex only supported in 10/100Mbps mode). The PoE(PSE) ethernet switch is a Power Sourcing Equipment (PSE) which combines data transfered over cable with 48V(typical) power supply, providing power to IEEE802.3at powered device (PD) over CAT5e UTP cable (cable length up to 100 meters/330 feet). The two UTP RJ-45 ports are organized to be PoE output port, and each PoE port can output up to 30 watts (DC 52V/.6A) power into CAT5e twisted-pair cable. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.

General Information
Manufacturer	AddOn
Manufacturer Part Number	ADD-GMC-2RJ2SFP-POE+
Manufacturer Website Address	http://www.addoncomputer.com
Brand Name	AddOn
Product Name	10/100/1000Base-TX(RJ-45) x2 to 2 Open SFP Port POE+ (30W) Media Converter
Packaged Quantity	1
Product Type	Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports	4
Network (RJ-45)	Yes
Number of PoE+ (RJ-45) Ports	2
PoE Port Type	PSE
Number of Network (RJ-45) Ports	2
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Fiber Mode Supported	Single-mode
Fiber Mode Supported	Multi-mode
Maximum Data Transfer Rate	1 Gbit/s
I/O Expansions
Total Number of Expansion Slots	2.0
Expansion Slot Type	SFP
Number of SFP Slots	2
Network & Communication
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-X
Network Technology	10/100/1000Base-TX
Power Description
Power Source	AC
Miscellaneous
Application/Usage	Network
Certifications & Standards	802.3at
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
TAA Compliant	No
Warranty
Limited Warranty	3 Year
