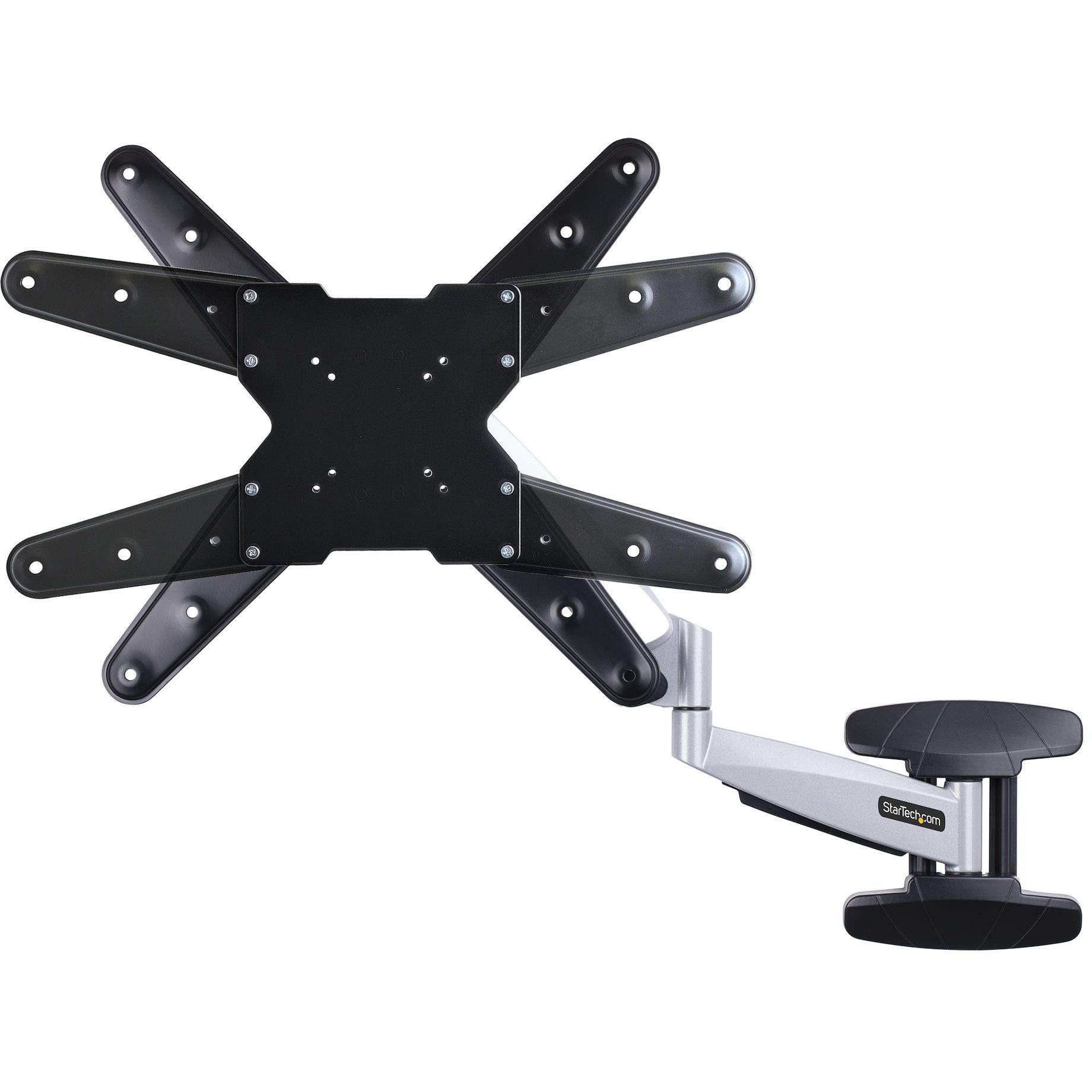

STARTECH FHA-TV-WALL-MOUNT VESA TV WALL MOUNT SWIVEL - FULL MOTION TV WALL MOUNT TILTING

"The steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23" to 55" and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75x75 to 400x400.

Versatile TV Mounting

Securely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors, clients, and employees. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls, using the included hardware.

Supported VESA mounting patterns: 75x75,100x100, 200x100, 200x200, 300x300, 400x200, and 400x400.

Full-Motion Adjustment

The VESA plate swivels +90 / -90 degrees, tilts +8 / -15 degrees, and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments, with a range of up to 12.6in (32cm).

The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.

Durable Construction

The robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.

The height adjustable TV wall mount is backed for two years, including free lifetime 24/5 multi-lingual technical assistance."

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	FHATVWALLMOUNT
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	Wall Mount
Packaged Quantity	1
Product Type	Wall Mount
Product Information
Device Supported	TV
Device Supported	Flat Panel Display
Device Supported	Curved Screen Display
Number of Displays Supported	1
Minimum Load Capacity	17.64 lb
Maximum Load Capacity	66.14 lb
Minimum Screen Size Supported	23"
Maximum Screen Size Supported	55"
Features	180° Swivel
Features	8°/-15° Tilt
Features	Durable
Features	Adjustable
Features	Full Motion
Features	Articulating
Features	Cable Management
Features	+/- 90° Swivel
Features	Tool-less Adjustment
Features	+/- 3° Rotation
Mount Profile	Low Profile
Height Adjustable	Yes
Physical Characteristics
Color Family	Dual Color
Product Color	Black
Product Color	Silver
Finishing	Silver
VESA Mount Compatible	Yes
Mounting Pattern	75 x 75
Mounting Pattern	400 x 200
Mounting Pattern	100 x 100
Mounting Pattern	300 x 300
Mounting Pattern	200 x 100
Mounting Pattern	400 x 400
Mounting Pattern	200 x 200
Product Material	Steel
Product Material	Aluminum
Height	17.70"
Width	17.70"
Length	23.40"
Weight (Approximate)	13.20 lb
Miscellaneous
Package Contents	1 x Arm Assembly 2 x Decorative Covers 2 x VESA Extension Plates, LH 2 x VESA Extension Plates, RH 8 x VESA Extension Plate Screws 1 x Wrench 1 x 4mm Hex Key 1 x 6mm Hex Key 1 x Bubble Level 4 x M5x14mm Screws 4 x M6x14mm Screws 4 x M6x30mm Screws 4 x M8x30mm Screws 4 x M8x50mm Screws 4 x Display Washers, Small 4 x DiapLay Washers, Large 8 x Short Spacers 8 x Tall Spacers 5 x Wall Mounting Screws 5 x Concrete Anchors 5 x Wall Mounting Washers 1 x Manual
Application/Usage	Lobby
Application/Usage	Wall
Application/Usage	Board Room
Country of Origin	China
Warranty
Limited Warranty	2 Year
