ASUS
ASUS MB PRIME Z790-P WIFI D4-GSI Z790 LGA1700 Max128GB DDR4 PCIe ATX Bulk Pack
Mfg Part Number: PRIME Z790-P WIFI D4-GSI , Item #: 4771379
, PO and Wire.

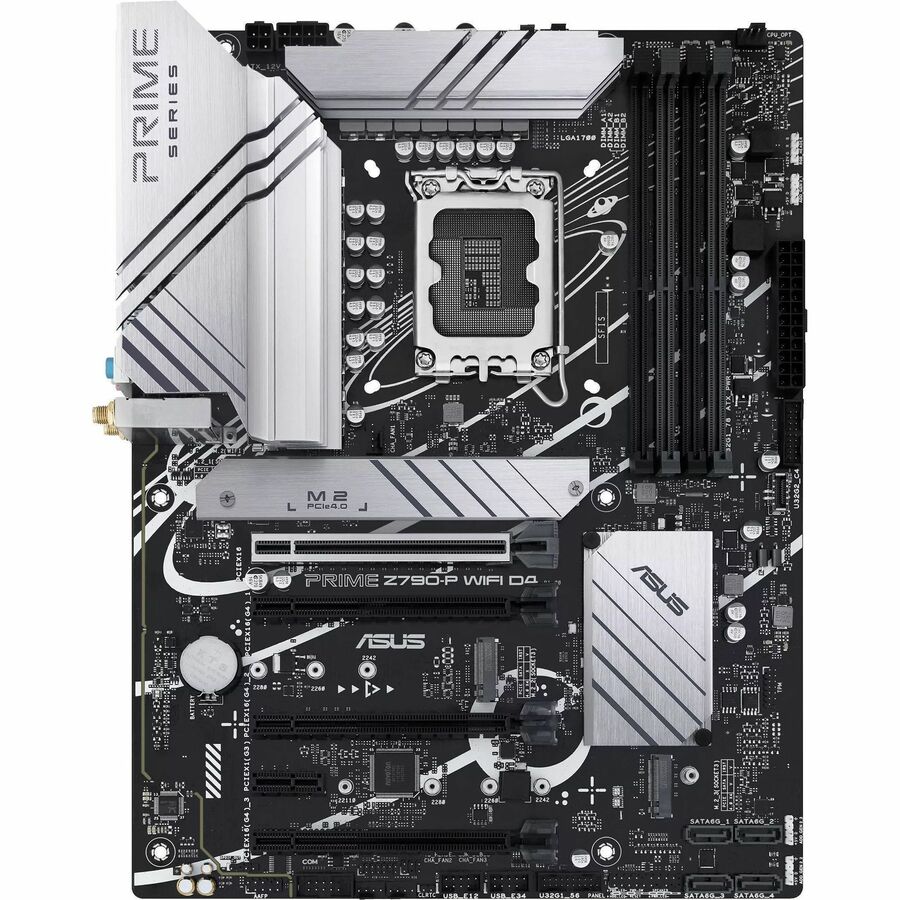

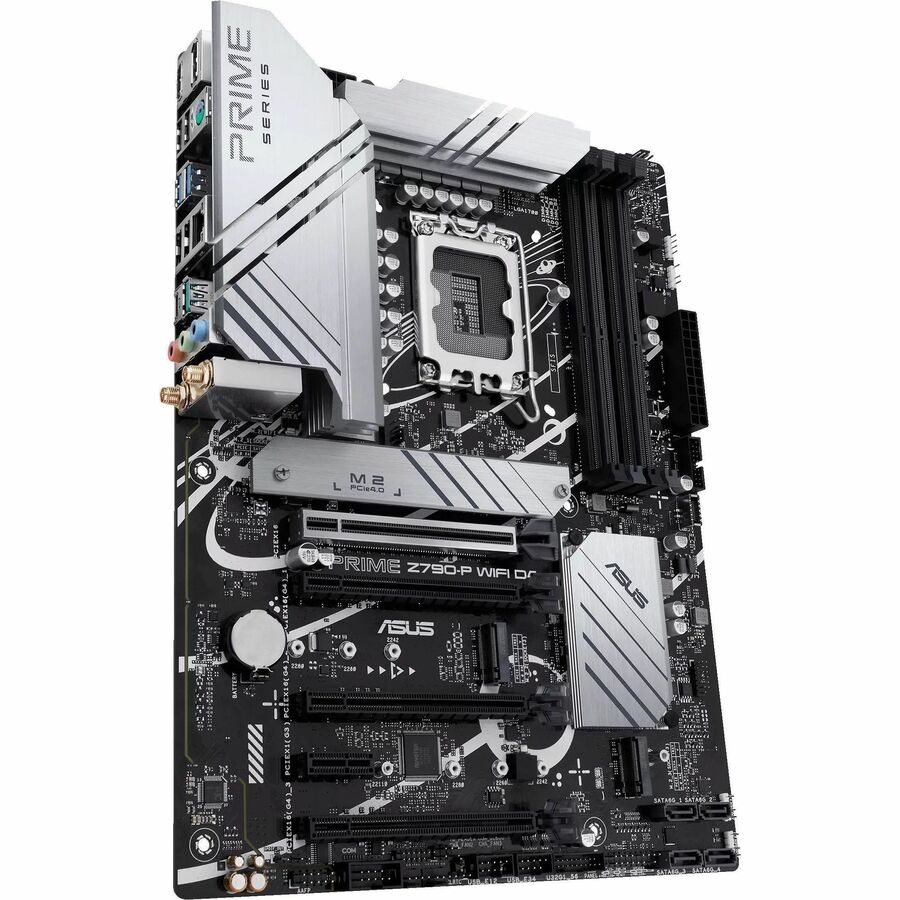

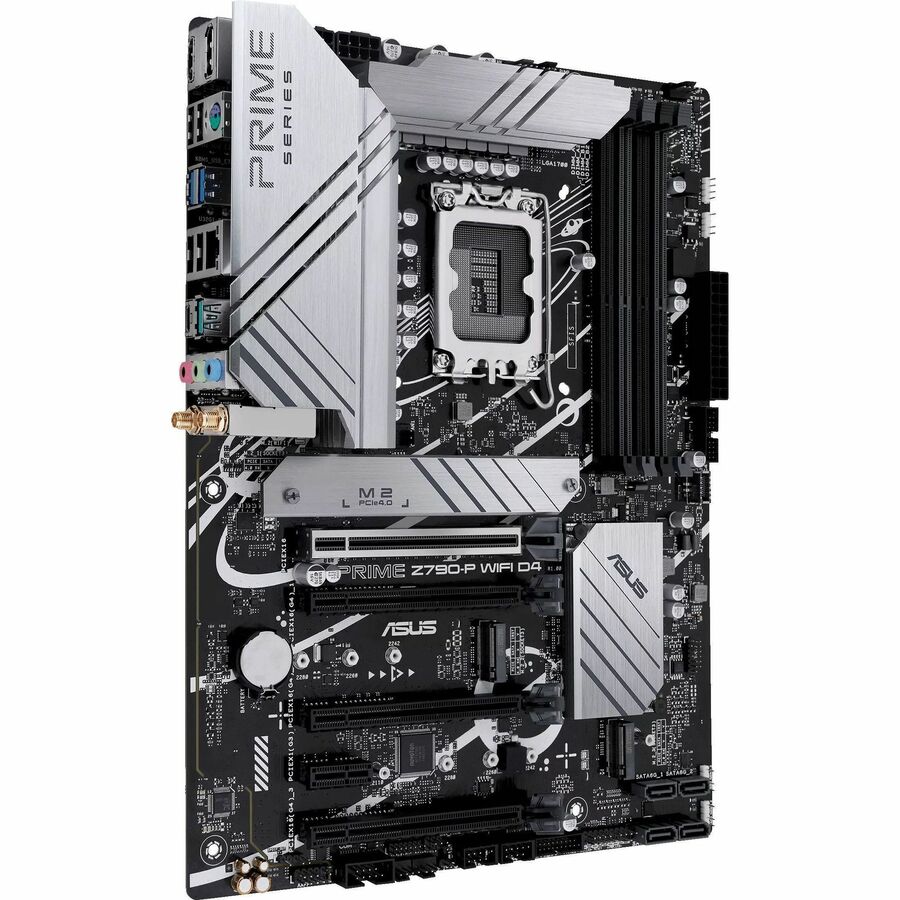

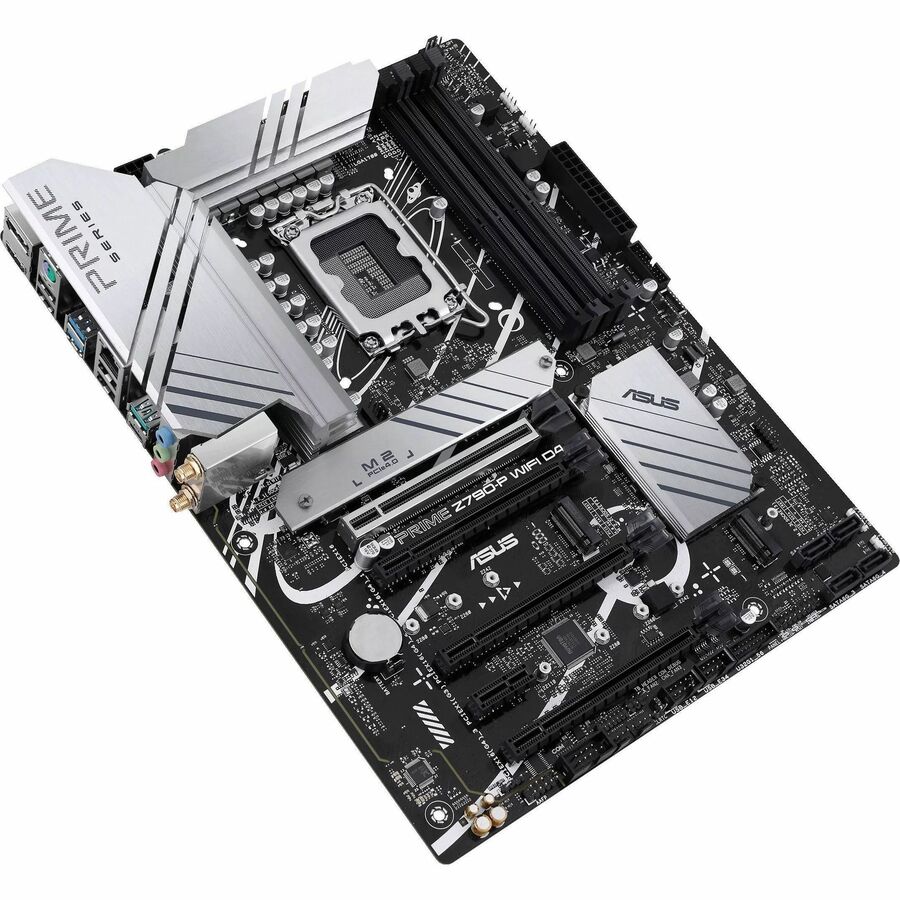

ASUS Prime Z790-P WIFI D4, an Intel Z790 LGA 1700 ATX motherboard with PCIe®5.0, three M.2 slots, 14+1 DrMOS, DDR4, Realtek 2.5Gb Ethernet, Intel®Wi-Fi 6, HDMI®, DP, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 2 Type-C®, Thunderbolt™(USB4®) support, Aura Sync
- Intel®LGA 1700 socket:Ready for 12th and 13th Gen Intel®processors
- Enhanced power solution:14+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity:Intel®Wi-Fi 6, PCIe®5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™(USB4®) header support, 3 PCIe®4.0 M.2
- ASUS OptiMem II:Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive cooling:Large VRM heatsinks, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13thGen Intel®Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P WIFI D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AIO coolers can also be controlled via the UEFI BIOS.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME Z790-P WIFI D4-GSI |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus |
| Product Line | Prime |
| Product Model | PRIME Z790-P WIFI D4 |
| Product Name | PRIME Z790-P WIFI D4 Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 14th Gen |
| Processor Generation Supported | 12th Gen |
| Processor Generation Supported | 13th Gen |
| Processor Supported | Core |
| Processor Supported | Celeron |
| Processor Supported | Pentium Gold |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 3466 MHz |
| Memory Speed Supported | 3333 MHz |
| Memory Speed Supported | 3200 MHz |
| Memory Speed Supported | 2933 MHz |
| Memory Speed Supported | 4600 MHz |
| Memory Speed Supported | 3000 MHz |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 5133 MHz |
| Memory Speed Supported | 5000 MHz |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 4000 MHz |
| Memory Speed Supported | 3400 MHz |
| Memory Speed Supported | 3866 MHz |
| Memory Speed Supported | 2800 MHz |
| Memory Speed Supported | 2666 MHz |
| Memory Speed Supported | 2400 MHz |
| Memory Speed Supported | 5333 MHz |
| Memory Speed Supported | 4700 MHz |
| Memory Speed Supported | 4133 MHz |
| Memory Speed Supported | 5066 MHz |
| Memory Speed Supported | 3733 MHz |
| Memory Speed Supported | 4500 MHz |
| Memory Speed Supported | 3600 MHz |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 4266 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10 |
| RAID Levels | 5 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 5 |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 3.0 |
| PCI Express Standard | PCI Express 4.0 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 4 |

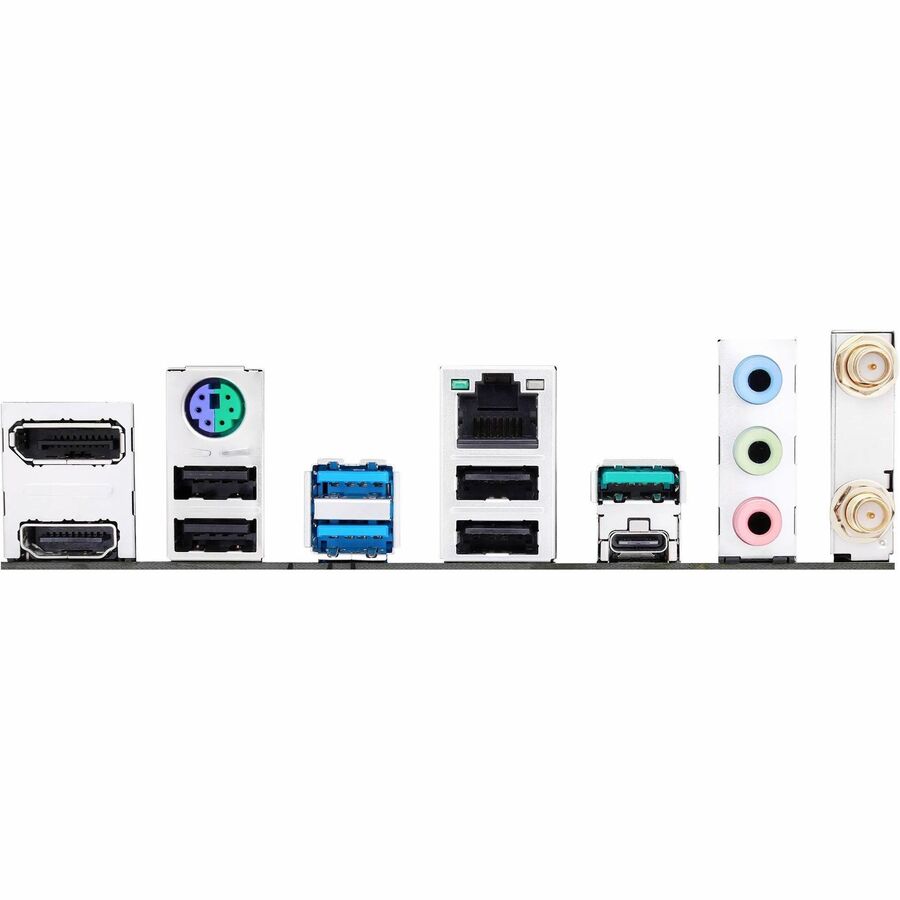

| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.2" |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
