Edimax

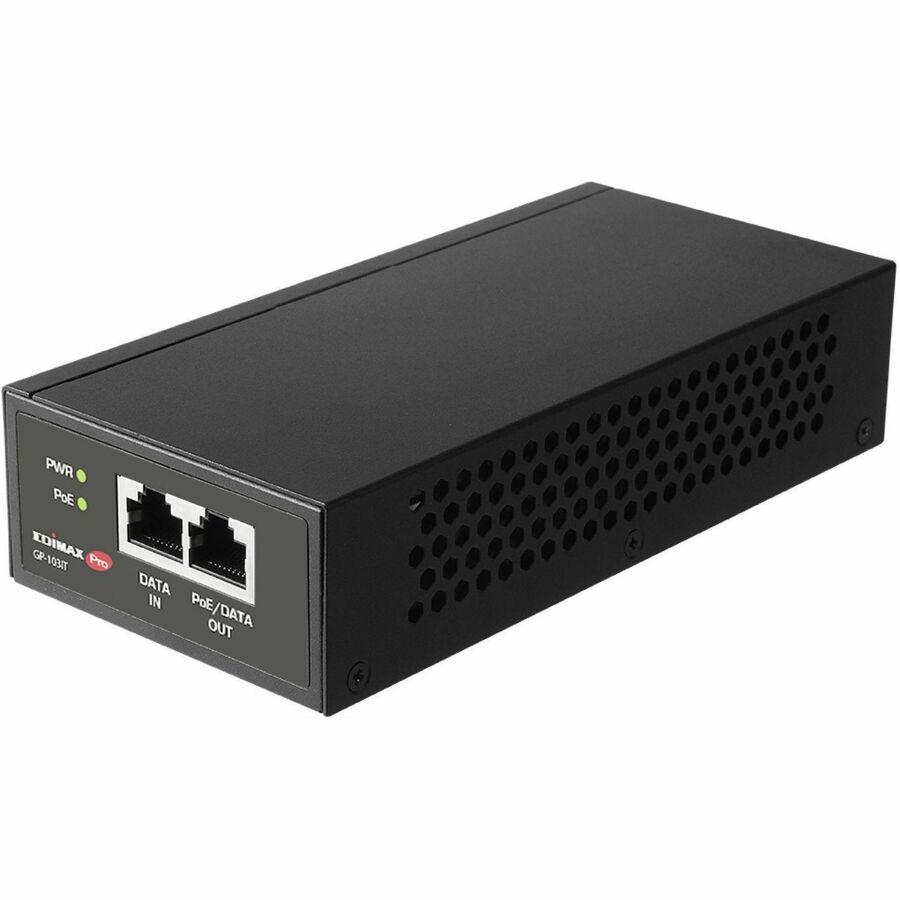

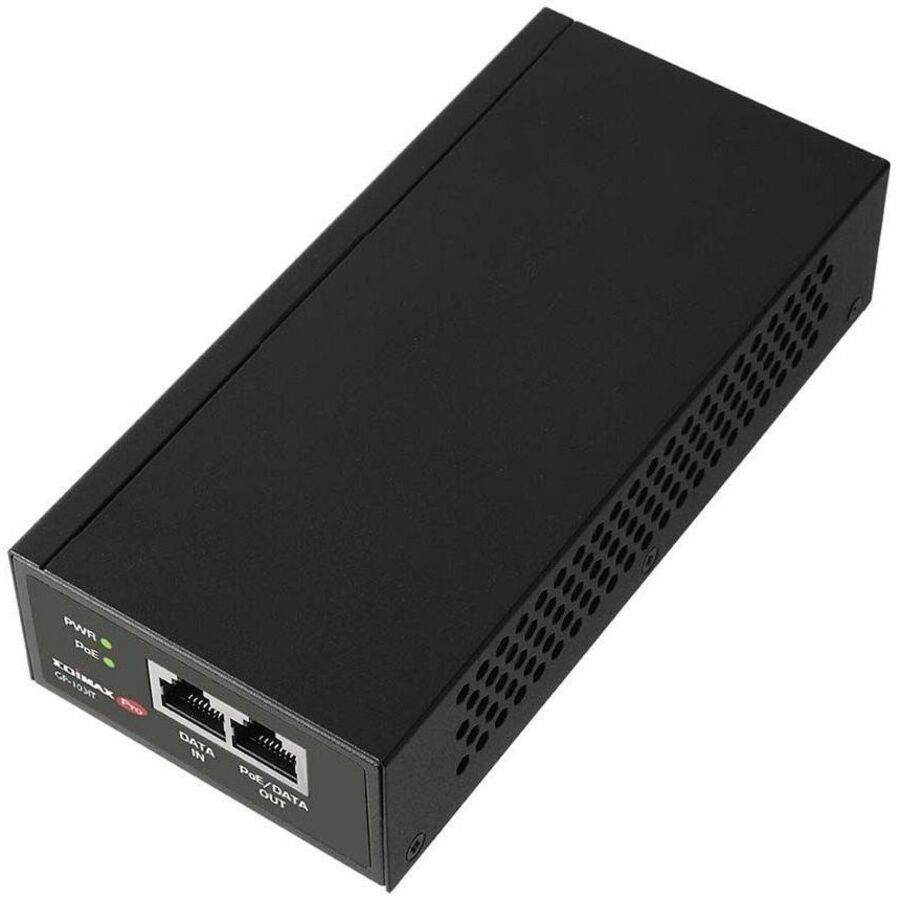

Edimax NT GP-103IT IEEE 802.3bt Gigabit 90W PoE++ Injector Retail
Mfg Part Number: GP-103IT , Item #: 4769025
, PO and Wire.
Convert Non-PoE Gigabit to PoE++
Plug-and-Play, Flexible Wall-Mount Installation
High Power PoE Port
Built-in 90W power supply, it connects directly to the outlet through the power cord. It does not require an external large power adapter, making installation easier and saving space.
Gigabit Ports Ensure Faster Connections
Both the gigabit 10/100/1000 Mbps input and output port ensure faster, more reliable connections for all applications. Delivering power up to 100 meters (328ft.), perfect for IP cameras or access point deployment in large areas.
Easy Plug-and-Play
Just plug the Ethernet enabled device into the injector. No additional cables, software setup or configuration is required.
Fast and Simple Installation
Flexible Mounting Options
The convenient wall-mounting design saves space for a simple installation
Extends High Power PoE++ for PTZ Camera over 328ft | Power Your PoE Devices
Complies with IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) Standards and supports PoE PD (Power Device) up to 90W.
IP Surveillance
IP surveillance camera is now ubiquitous PoE supported with only one LAN cable which enables fast deployment and easy repositioning for business, office, residential environments.
Digital Signage
Digital signage can quickly transmit information in schools, hospitals, department stores, stations, airports, and subways, and the content can be updated quickly to enhance users' real-time information.
Other PoE Devices
Other PoE-enabled devices such as POS System, Information Kiosk, RFID readers, access controls, thin clients, alarms or sensors, benefits easy and cost-saving installation even when it is away from AC outlets.
| General Information | |
| Manufacturer | Edimax Technology |
| Manufacturer Part Number | GP-103IT |
| Manufacturer Website Address | http://www.edimax.com |
| Brand Name | Edimax |
| Product Line | Pro |
| Product Name | IEEE 802.3bt Gigabit 90W PoE++ Injector |
| Package Type | Retail |
| Packaged Quantity | 1 / Pack |
| Product Type | PoE++ Injector |
| Technical Information | |
| Protection Type | Short Circuit |
| Protection Type | Circuit Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Maximum Output Voltage | 54 V DC |
| Maximum Input Current | 1.50 A |
| Maximum Output Current | 1.67 A |
| Maximum Output Power | 90 W |
| Interfaces/Ports | |
| Input Ports | 1 x RJ-45 |
| Output Ports | 1 x RJ-45 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Desktop/Wall Mountable |
| Height | 1.4" |
| Width | 2.9" |
| Depth | 6.1" |
| Weight (Approximate) | 1.25 lb |
| Miscellaneous | |
| Compatibility | Compatible Devices:
|
