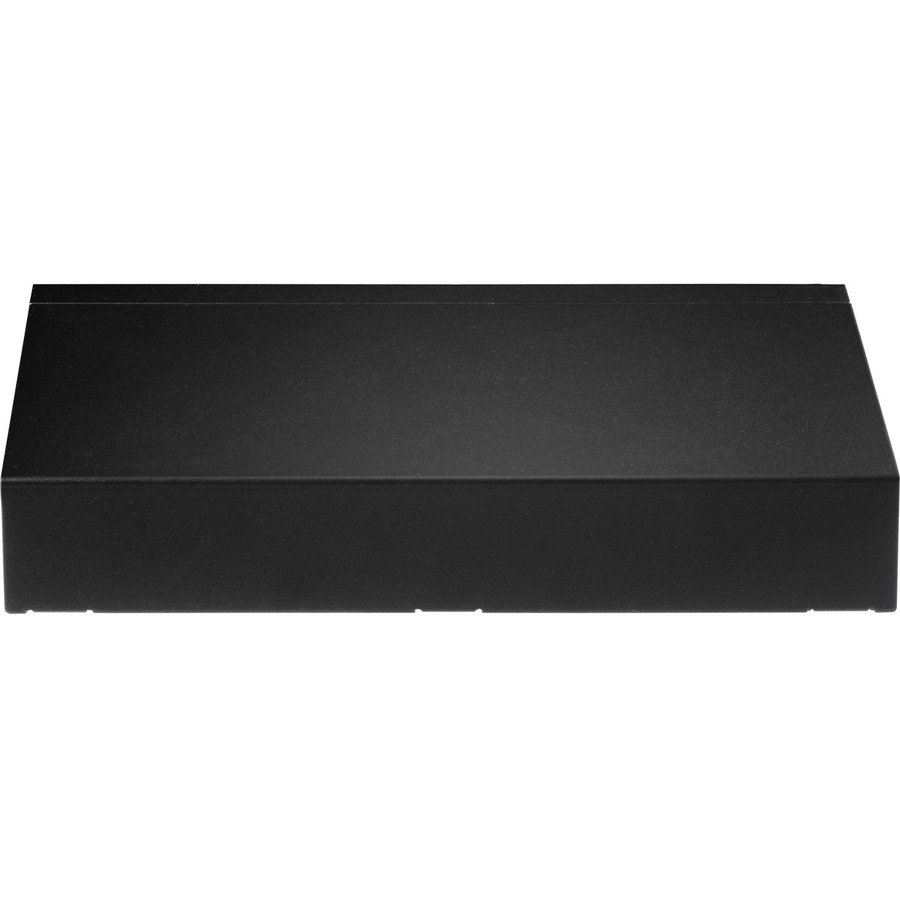

The GS-1005BE is 5-Port Gigabit desktop switch is designed to upgrade or expand the network with highspeed, enhanced performance while maintaining a compact form factor. It boasts outstanding performance and high efficiency, while its store and forward packet-switching technology offers reliable data transfer ideal for network connectivity in the home, small office, small-and-medium business and enterprise environments.
The GS-1005BE is designed with fanless, wallmounted hole and metal case and offers an easy plug-and-play, flexible-deployment, cost-effective, energy efficient solution for users looking to extend networks and fulfill their high bandwidth data transfer and streaming needs.
2.5 Gigabit High-Speed Network With 2.5 Gigabit speed, the GS-1005BE brings high-flexibility and high-bandwidth connectivity to servers, workstations and other attached devices. It enables you to save time when transferring large files. 12K jumbo frames are also supported to improve network utilization in large files transfer.
No Need to Upgrade Cabling Infrastructure Just plug Ethernet enabled devices into the GS-1005BE. It doubles network bandwidth while leveraging existing CAT-5E cabling infrastructure with no additional cables, software setup or configuration required. In all, it lowers the installation costs and simplifies the deployment effort.
High Performance and Reliable Connection The GS-1005BE provides you the maximum speed at 2.5GbE and highest performance possible for each device connected to your network with the features of IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Loop Detection, Store-and-Forward Architecture which filters fragment & CRC error packets for maximizing network performance.
Energy Efficient and Power Saving To comply with the IEEE802.3az Energy Efficient Ethernet standard, the GS-1005BE provides power-saving functionality to reduce energy consumption and save costs. Featuring with Inactive Link Detection, inactive devices without power delivery and Cable Length Detection, the shorter cable length, the less power consumes, the GS-1005BE can reduce or adjust power usage accordingly.
Main Specification
General Information |
Manufacturer |
Edimax Technology |
Manufacturer Part Number |
GS-1005BE |
Manufacturer Website Address |
http://www.edimax.com |
Brand Name |
Edimax |
Product Model |
GS-1005BE |
Product Name |
5-Port 2.5 Gigabit Desktop Switch |
Product Type |
Ethernet Switch |
Interfaces/Ports |
Total Number of Network Ports |
5 |
Port/Expansion Slot Details |
5 x 2.5 Gigabit Ethernet Network |
Media & Performance |
Media Type Supported |
Twisted Pair |
Ethernet Technology |
2.5 Gigabit Ethernet |
Network Technology |
2.5GBase-T |
Network & Communication |
Layer Supported |
2 |
Power Description |
Power Source |
Power Adapter |
Physical Characteristics |
Form Factor |
Wall Mountable |
Form Factor |
Desktop |
Height |
1" |
Width |
6.3" |
Depth |
4.3" |
Weight (Approximate) |
15.73 oz |
